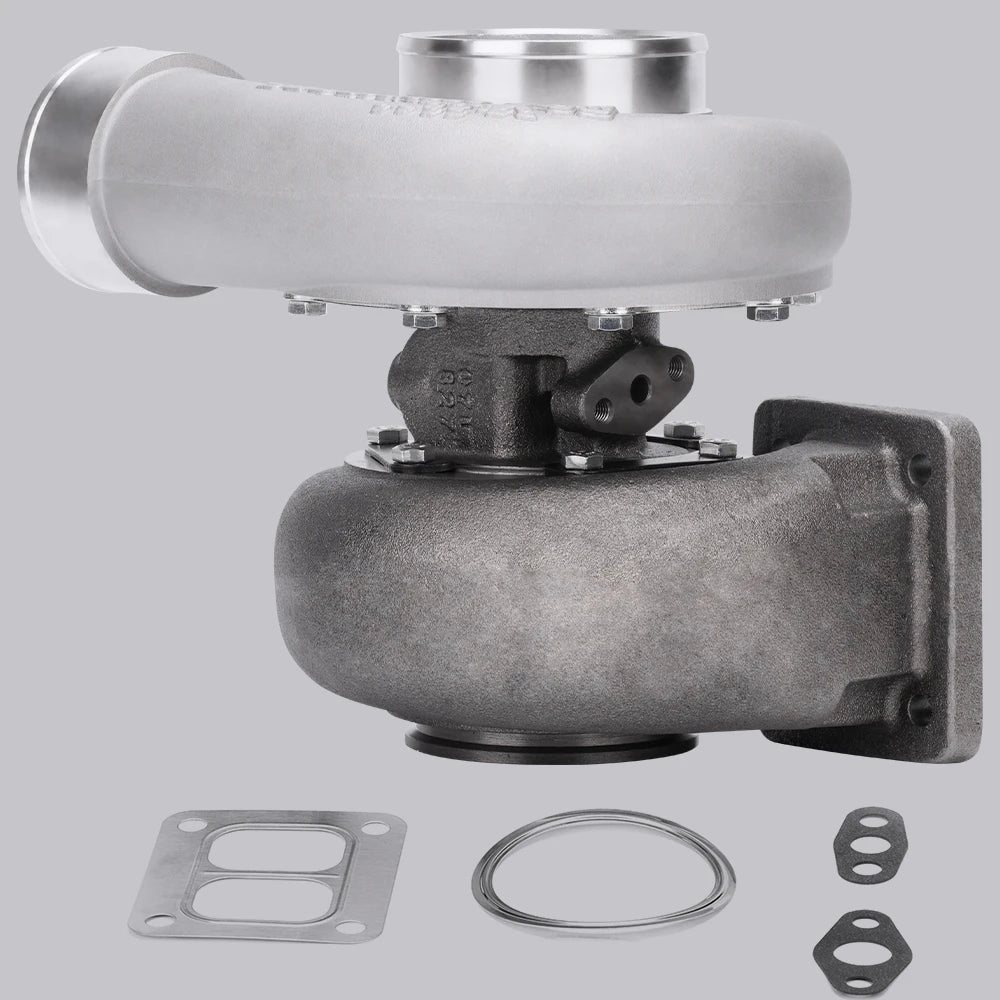

600+HP Turbolader GT45 T4 Turbine .66 A/R Com 1.05 A/R V-band 8psi Universal Turbo Turbocharger
600+HP Turbolader GT45 T4 Turbine .66 A/R Com 1.05 A/R V-band 8psi Universal Turbo Turbocharger
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NoEnName_Null
Country/Region of Manufacture: China
Hign-concerned Chemical: None
Interchange Part Number: for all 4.0L-6.0L engine
Item Height: 31cm
Item Length: 30cm
Item Weight: 17.2kg
Item Width: 27cm
Manufacturer Part Number: turbolader turbine
Material: Alloy steel and Alloy aluminum
OEM NO.: universal turbine
Origin: Mainland China
Other Part Number: for all 4.0L-6.0L engine
Placement on Vehicle: place on vehicle
Special Features: Balanced by Schenker
This turbo is an universal application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.
Application
Perfect for all 4.0L-6.0L engine
Horse Power: Capable of Boost Horse Power up to 600+ BHP
Specification
Compressor
Compressor Trim: 50
Compressor Inducer Diameter: 69 mm
Compressor Exducer Diameter: 98 mm
Compressor A/R: 0.66
Turbine

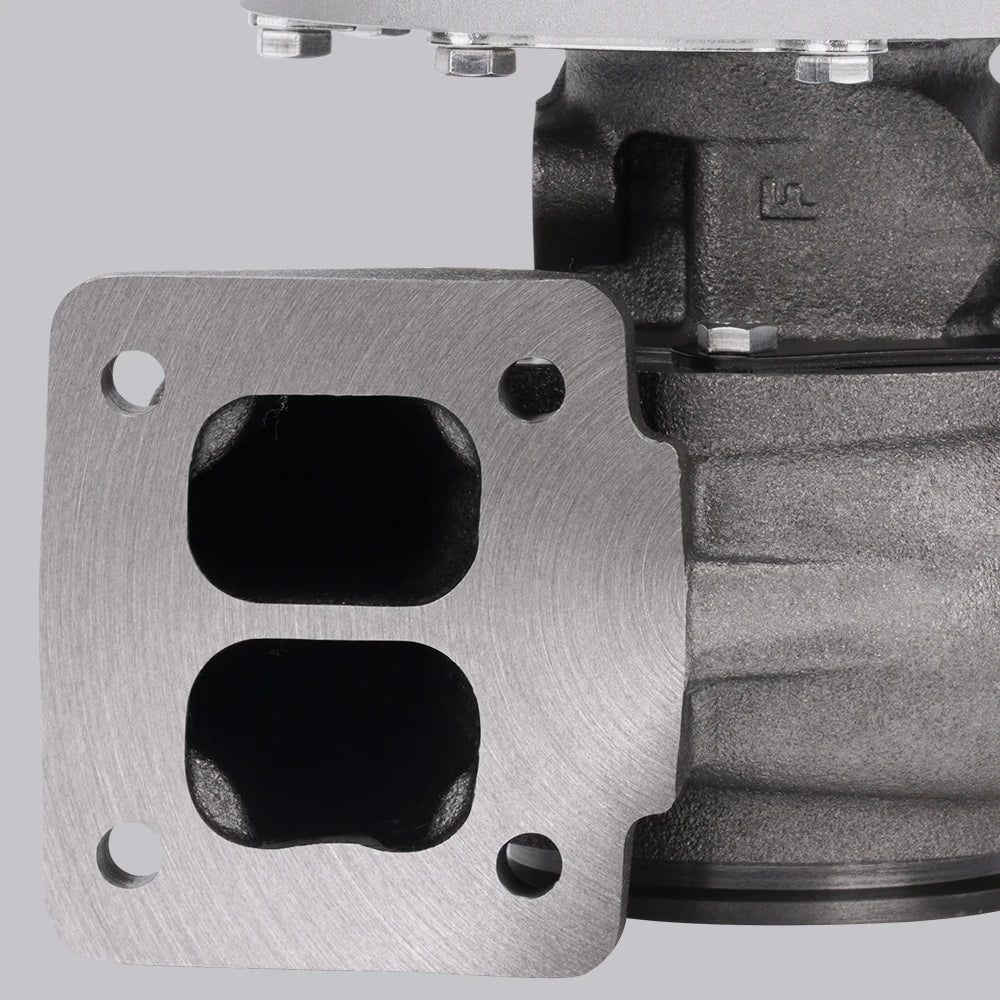

Exhaust Inlet (Turbo Manifold) Flange: T4 4 Bolt Flange
Turbo Width: 273cm
Oil Inlet: M9 & 2*M8*1.25
Oil Outlet: M19 & 2*M8*1.25
Features
-Boost Engine Horsepower Significantly
-Increase Engine Power and Torque Outpout;
-Maintain Combustion Chamber Pressure and Fuel/Air Load
-Contructed with High Quality Material
-Built for Durability and Strength
OUR ADVANTAGE
DUCTILE UCTILE IORN QT450-10-withstand temperatures up to 700 degrees Celsius

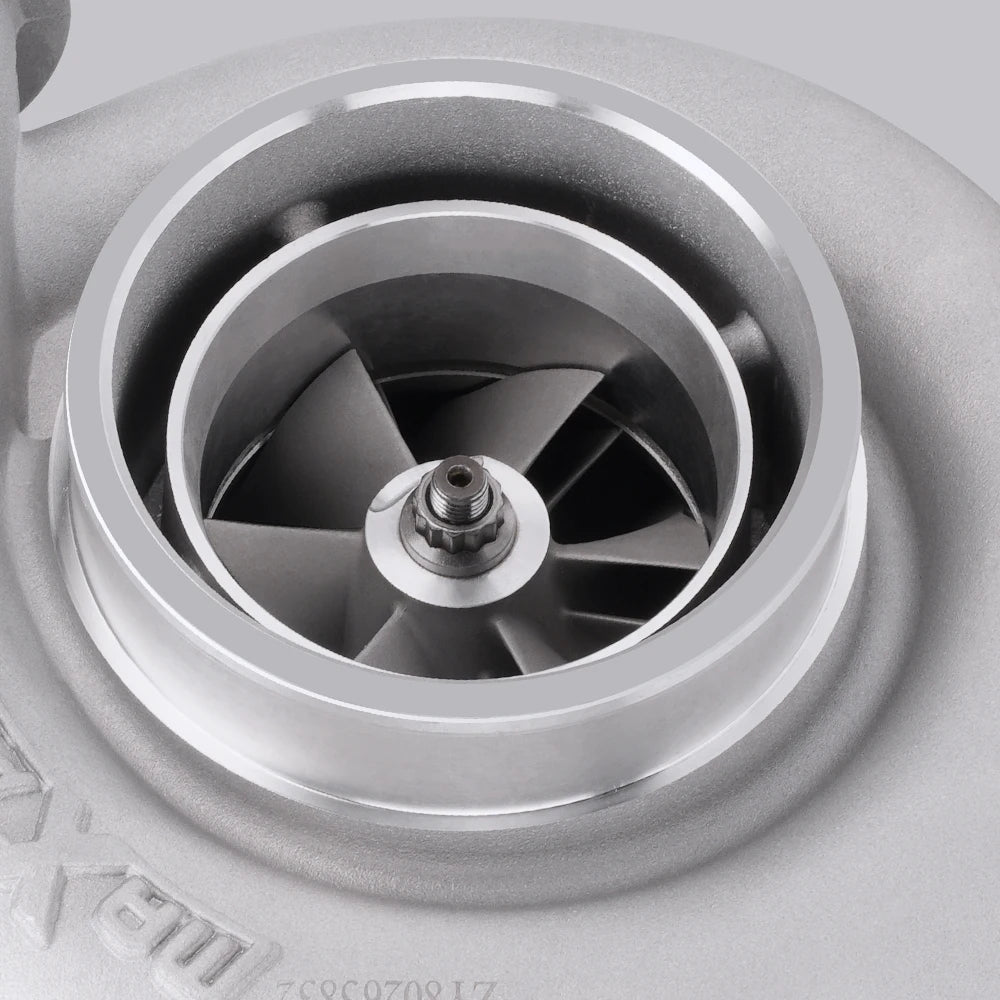

CAST ALUMINIUM IMPELLER-good gas tightness and corrosion resistance
100% BALANCING TEST
Bearing Type: Journal Bearing
This Turbocharger you will receive has been balanced using the VSR machine technology.
Through the comprehensive and high-precision static and dynamic balance detection technology, the use time and reliability.
TWIN SCROLL TURBINE housing options available-quicker response then single exhaust outlet
2 YEARS WARRANTY
Factory direct price, ship worldwide; Offering any turbo part leading 2 years warranty under normal use, unlimited mileage.
Notice
*100% Brand New
* Professional Installation is Highly Recommended ( Instruction is NOT Included)
*Additional parts will be needed for a complete installation. Please consult professional turbo installer for details.
*Does NOT have a internal wastegate so you must have a external wastegate on your manifold.
