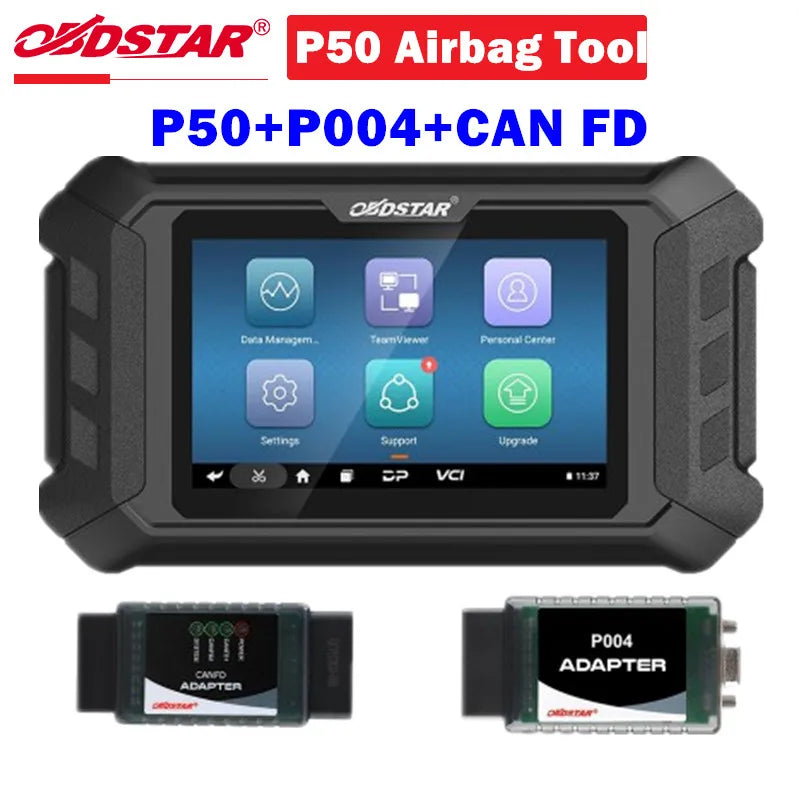

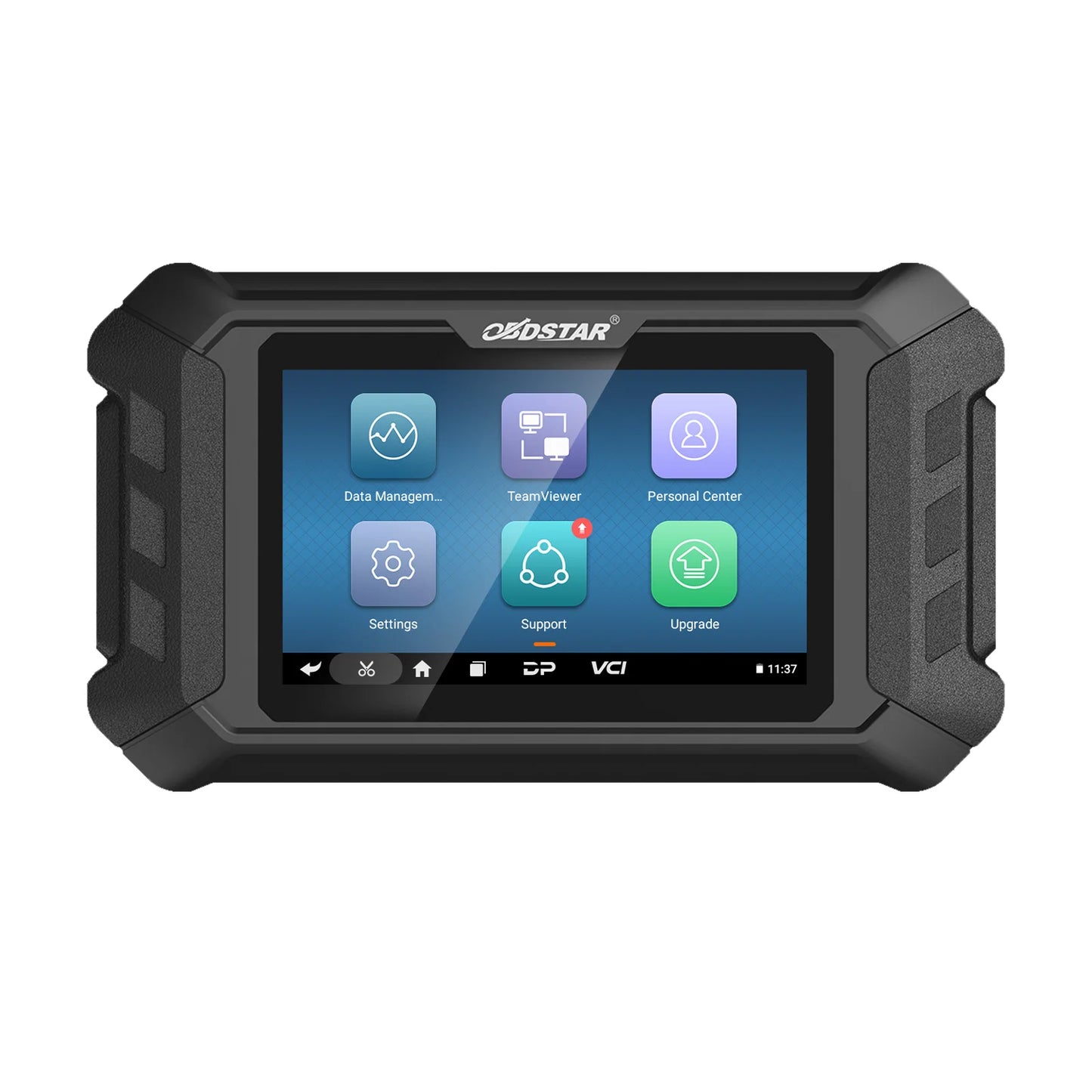

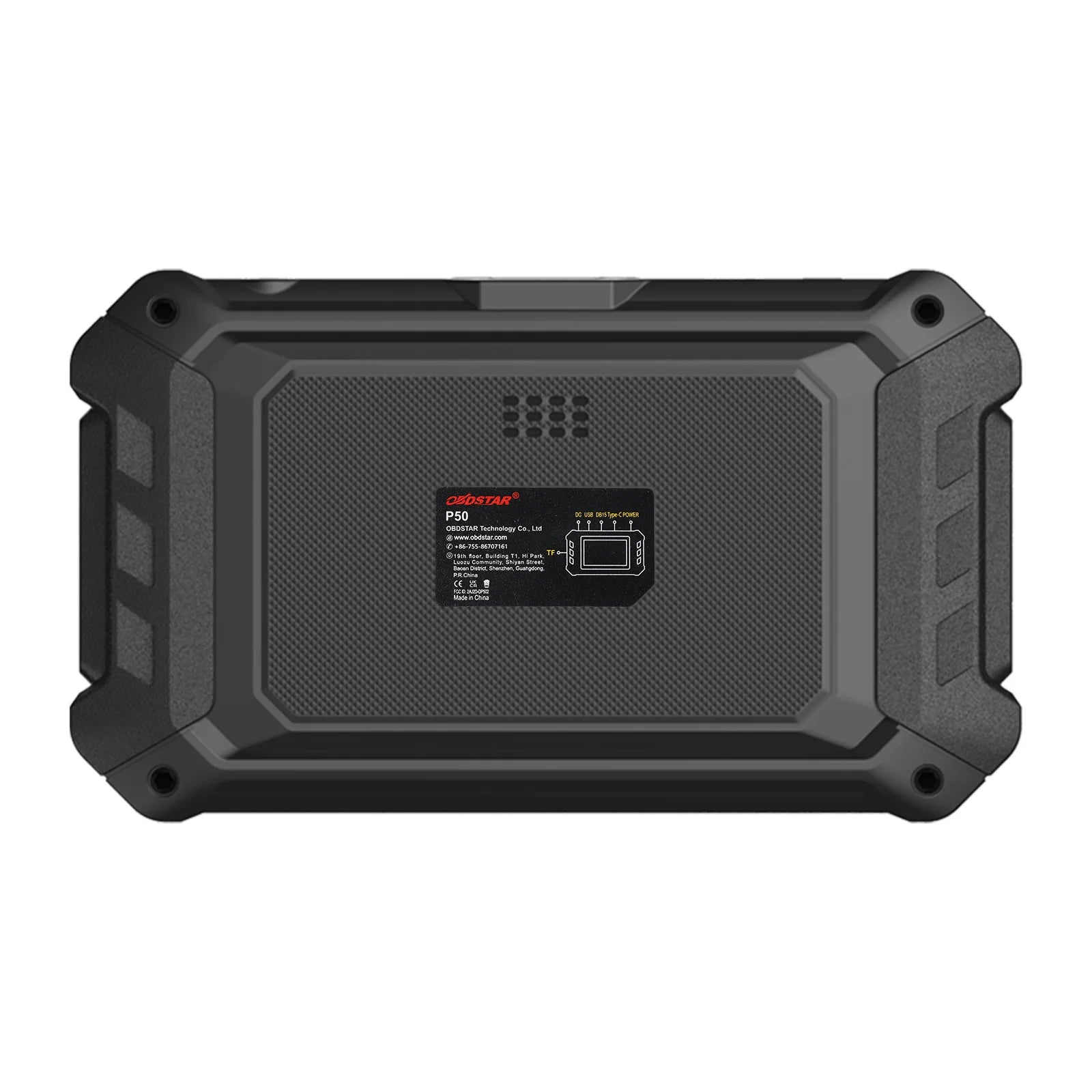

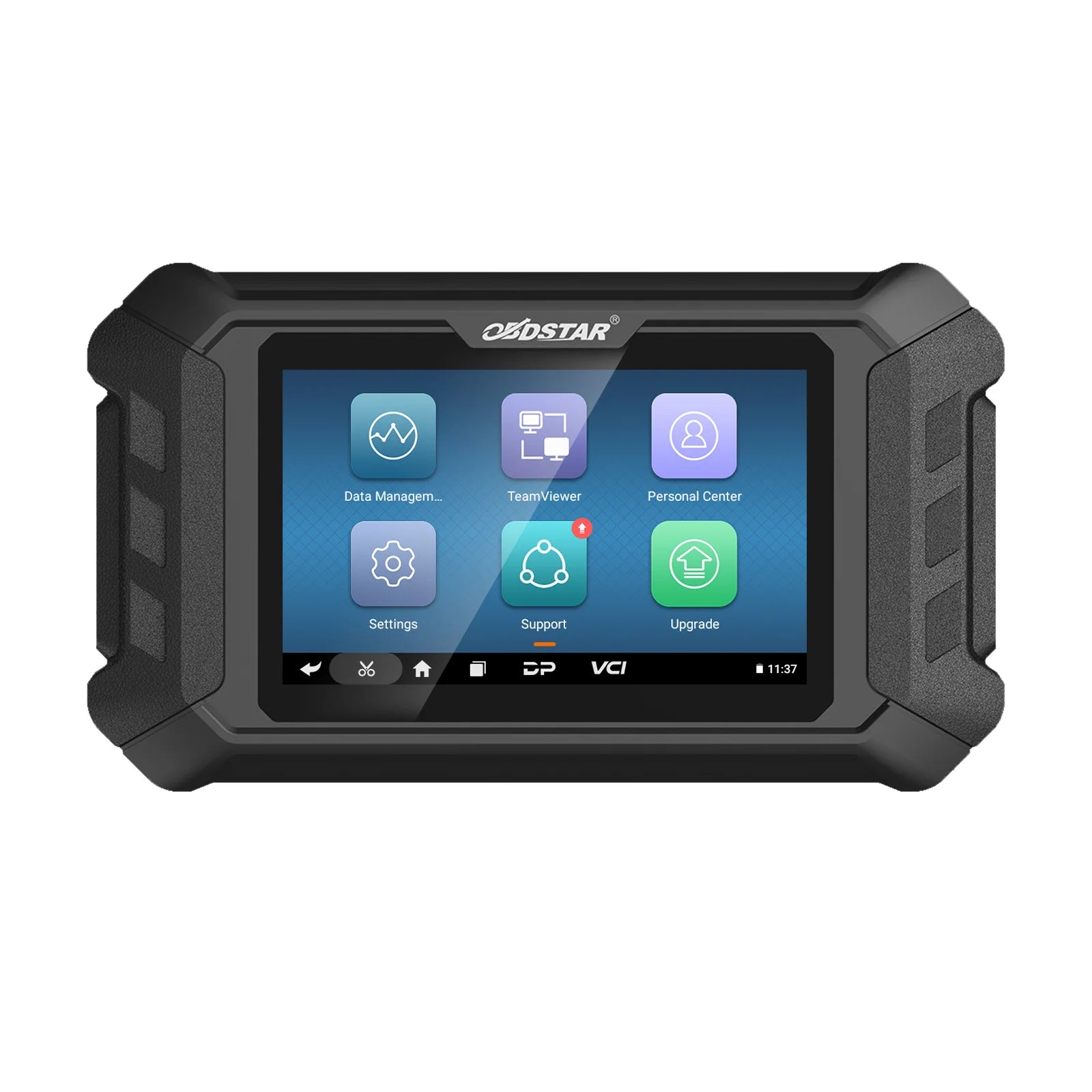

OBDSTAR P50 is the new generation of intelligent airbag reset equipment. With powerful functions and wide coverage, it covers 38 brands and over 3000 ECU part No., some MCU.

OBDSTAR P50 is based on RK3128 quad-core processor, extremely fast and smooth; equipped with 5-inch capacitive touch sensitive screen.

1. supports one-click airbag reset for 38 brands and over 3000 ECU part No.

2. supports fuzzy search for ECU part No.

3. contains clear BENCH mode wiring diagram

4. contains powerful and complete description files for fault code

More functions are in developing...

Notice:
If you also need Cluster Calibration & Oil Light/ Service Reset Function , you can buy the authorization to get the same function as the odo master.

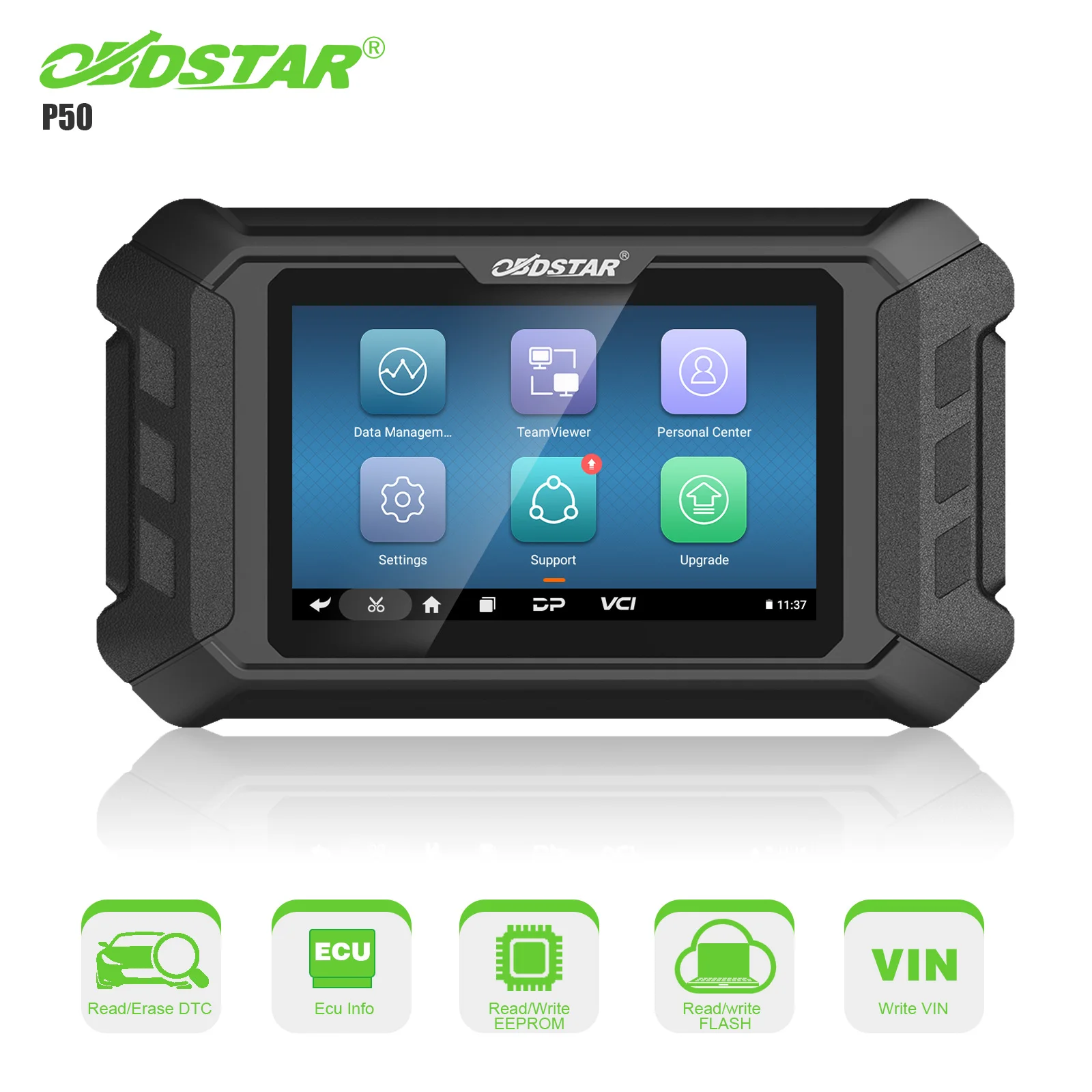

All by OBD or BENCH

ECU Info.

Read DTC

Erase DTC

Read EEPROM

Write EEPROM

Read FLASH

Write FLASH

Erase Crash

Write VIN

...

Supported Language: English only.

Vehicle Coverage：

1. Supported Brands(38 Brands)

for Acura, for Audi, for Benz, for Buick, for Cadillac, for Chevrolet, for Chrysler, for Citroen, for Dacia, for Dodge, for Ford, for GMC, for GreatWall, for Honda, for Hyundai, for Infiniti, for Jaguar, for Jeep, for KIA, for Land Rover, for Lincoln, for Maserati, for Mazda, for Mitsubishi, for Nissan, for Opel, for Peugeot, for Porsche, for Renault, for Seat, for Skoda, for Smart, for Subaru, for Suzuki, for Tesla, for Toyota, for VW, for Volvo

2. Over 3000 ECU part No.(supporting fuzzy search)

3. MCU types: H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570...

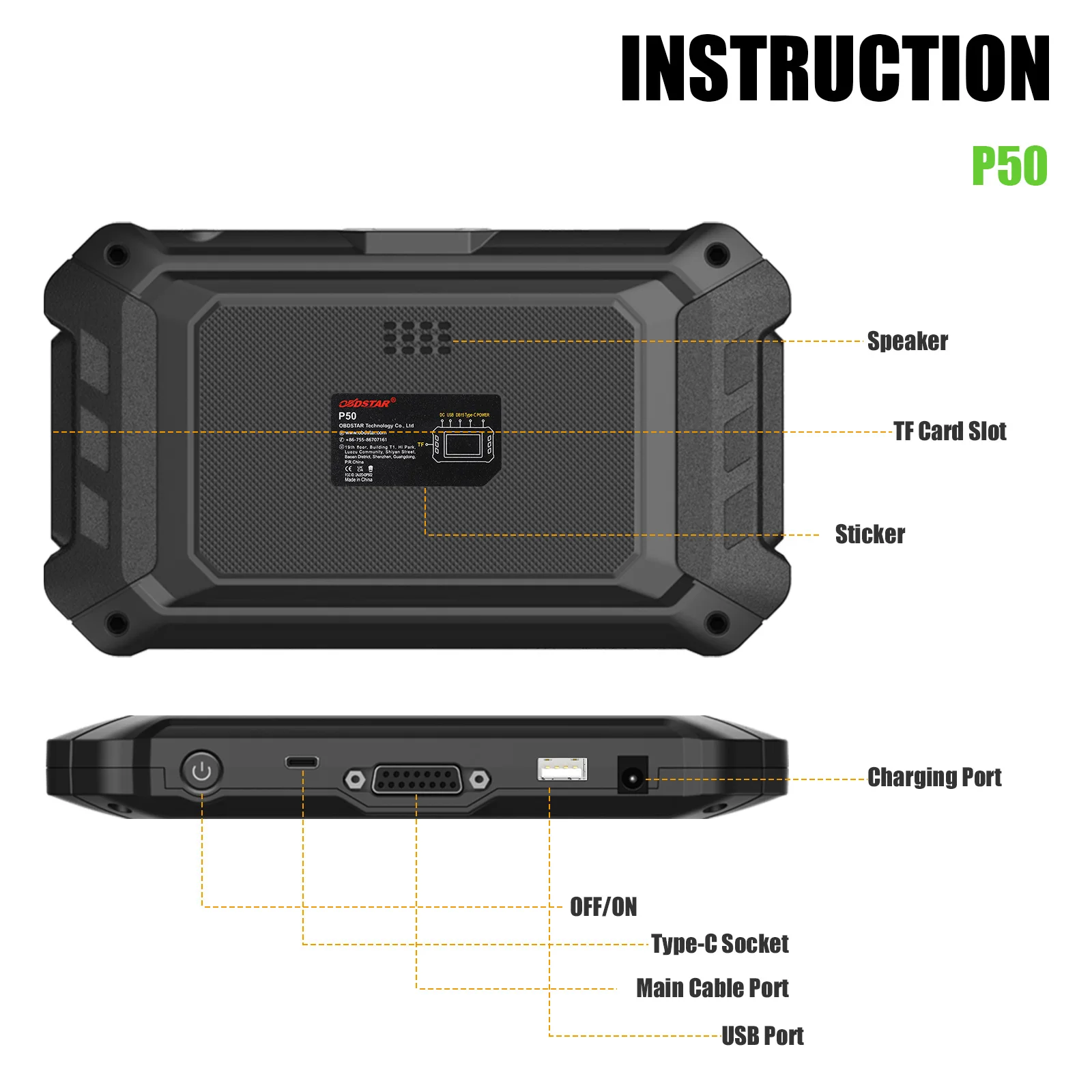

Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	2600mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
Storage capacity	16GB
LCD	5.0 inch
LCD resolution	800*480
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-20℃  ~  55℃(14℉  ~  131℉)
Storage temperature	-20℃  ~  70℃(-4℉  ~ 158℉)
Weight	About 700g
Dimension	198mm*115*mm*31mm

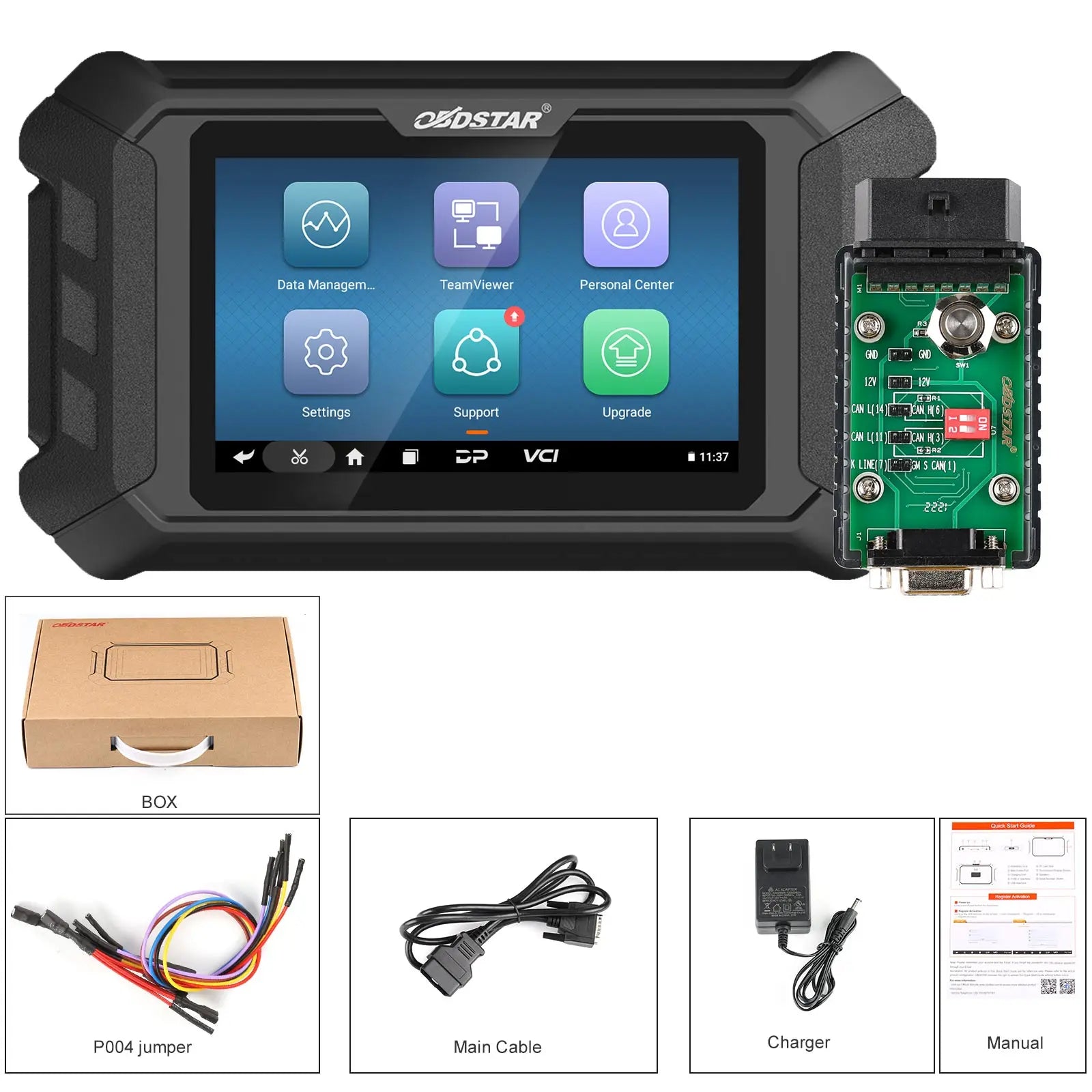

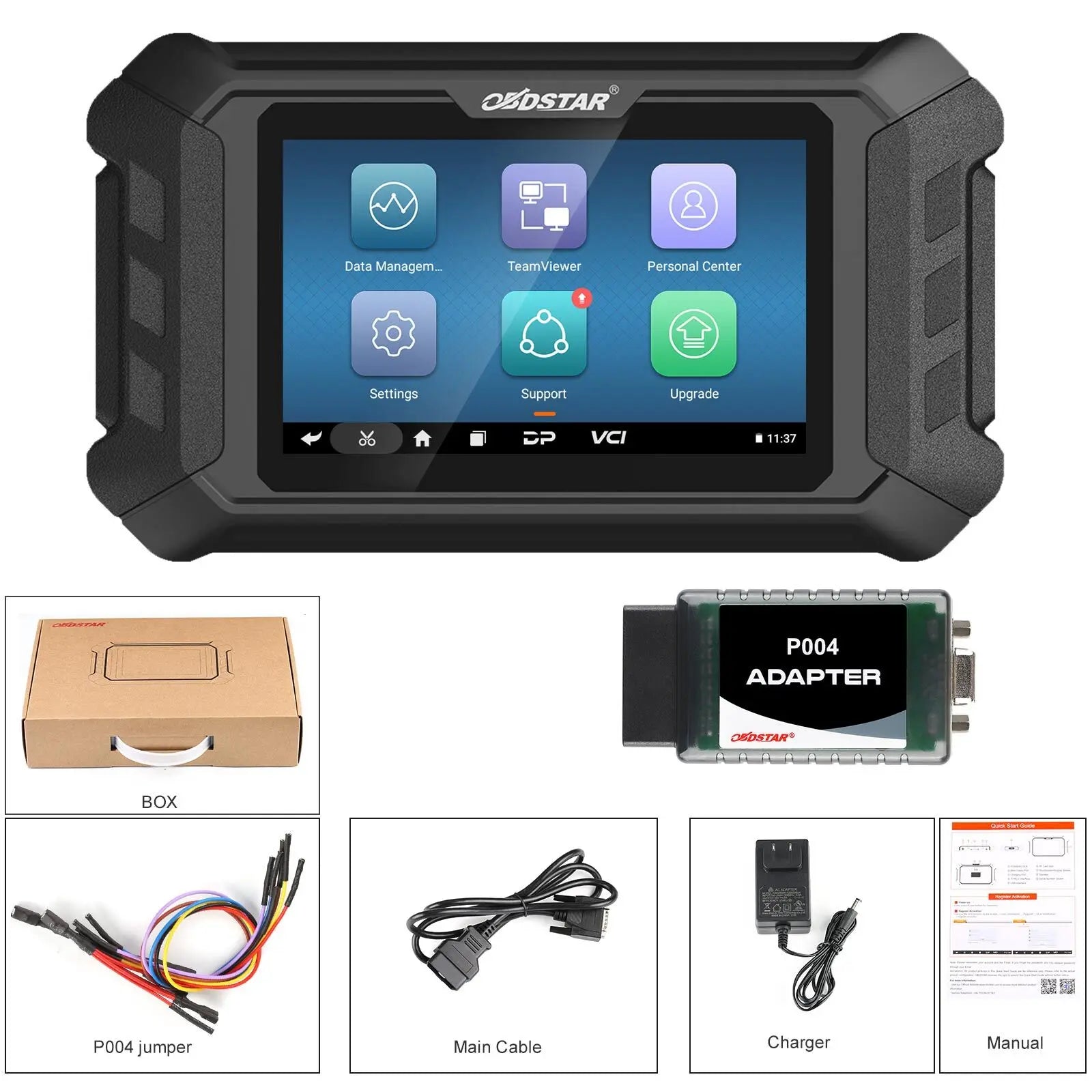

1pc x P50 main unit

1pc x main cable

1pc x P004 adapter

1pc x P004 jumper

1pc x 12V2A charger
