KINGBOLEN K18 PRO / ELITE Supports CANFD and DIOP protocol , it supports For GM after 2020 and other New cars ! Also Supports FCA AutoAuth !!!

CANFD :

it is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

For Onix 2020-2024, For Tracker 2020-2024, For Suburban 2021-2024, For Tahoe 2021-2024, For Montana 2024, For Silverado 2024, For Electra E5 2024, For Escalade 2021-2024, For Escalade ESV 2021-2024, For Sierra 2024, For Yukon 2021-202.2/2024, For Yukon XL 2021-202.2/2024, and For Chrysler Models including For Grand For Cherokee(WL) 2021-20203, For Grand For Wagoneer 2022-2024

DOIP :

With Diagnostics over DoIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes LAUNCH X431 PRO3S+ V5.0 SmartLink C HD save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with For BMW (F&G chassis), For Volvo models (2018 later), For Land Rover & For Jaguar models (2017 later).

( Note : this is car list that CANFD and DIOP supports , X431 PRO3S+ SmartLink C HD also supports other cars , more than about 100+ brands , like for bmw , for vw , for ford etc , there has the detailed car list in the following description , you can check ）

FCA/SGW AutoAuth :

FCA SGW Access: For the 2018+ FCA vehicles (For Fiat, For Chrysler, For Jeep, For Alfa Romeo, etc.) equipped with the Security Gateway module, the LAUNCH X431 PRO3 ACE car scanner can help you to log in to the FCA account and perform diagnostic functions such as clearing DTCs, bi-directional tests, and calibrations.

For Renault SGW Access: Serve 2019+ For Renault SGW vehicles include for CLIO V, for CAPTUR II, for CAPTUR II CN, for MEGANE IV ph2, for ESPACE V ph2, for TALISMAN/SM6 ph2, for NEW ZOE, for ARKANA CN, for XM3/NEW ARKANA, for NEW SANDERO/LOGAN, etc. Unloking security gateway to perform service function, active test, coding, programming, etc.

Note : This Function need have the account in FCA Website first .

KINGBOLEN K18 PRO / ELITE Supports ECU online Coding Function

* Online Coding: this LAUNCH scan tool can directly access the online vehicle repair data to do high-level repairs.

* Offline Coding: read the code from the original module, and then write the code for the new module,for example ,write a VIN to new ECU.

* Component Matching:Matching,relearn ,Cali-b-ration, or initia-lization adaptive data for certain components after repair or replacements,such as: suspension cali-bration ,seat matching ,sunroof initia-lization,gearbox matching,injector cali-bration, transmission adap-tion.Delete Adapt-ation Data, Tank Cali-b-ration,Height sensor system cali-bration,PSM Sensor Cali-b-ration ,etc.

* Re-trofit/Modi-fication: for example, re-trofit battery with different type, Upgrading the headlights, taillights, and interior lighting to LED lights,etc.

* Unlock the hidden features:for example,disable auto start-stop, disable daytime running light, disable safety belt chiming ,delete transport mode,delete transmission adaptive value.setting speed limits,etc.

KINGBOLEN K8 PRO / ELITE Supports Active Test & Bi-directional control

Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators .For example , x431 v have the ability to actuate relays, injectors, coils, or perform system tests, etc. Also it will actuate solenoids valve and actuators for active testing to identify the error easily moreover. The bidirectional functions are quite extensive. even open an e.g.r. valve and seeing the difference in idle response and oxygen sensor voltage. Please note: Active tests are NOT universal for all vehicles, check compatibility with VIN number before purchase. Active tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu.

KINGBOLEN K8 PRO / ELITE Supports All System Diagnose Function :

The Full Systems of the car mainly including Drive System, Chassis System, Body System, Electrical system :

1.PCM(Drive System): Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, and more...

2. Chassis System: Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS and more...

3.BCM(Body System): SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition.Electric Windows, Telephone, and more...

4.Electrical System: Including Centralized control system for engine and power transmission, Chassis integrated control and safety system, Intelligent body electronic system, Communication and information / entertainment system.

It supports the detailed Function :

--read fault codes: read and decode the DTCs to identify where the fault location is;
--clear fault codes: erase the DTCs to turn off the MIL after repairs;
--retrieve ecu information: allows you to retrieve vehicle information;

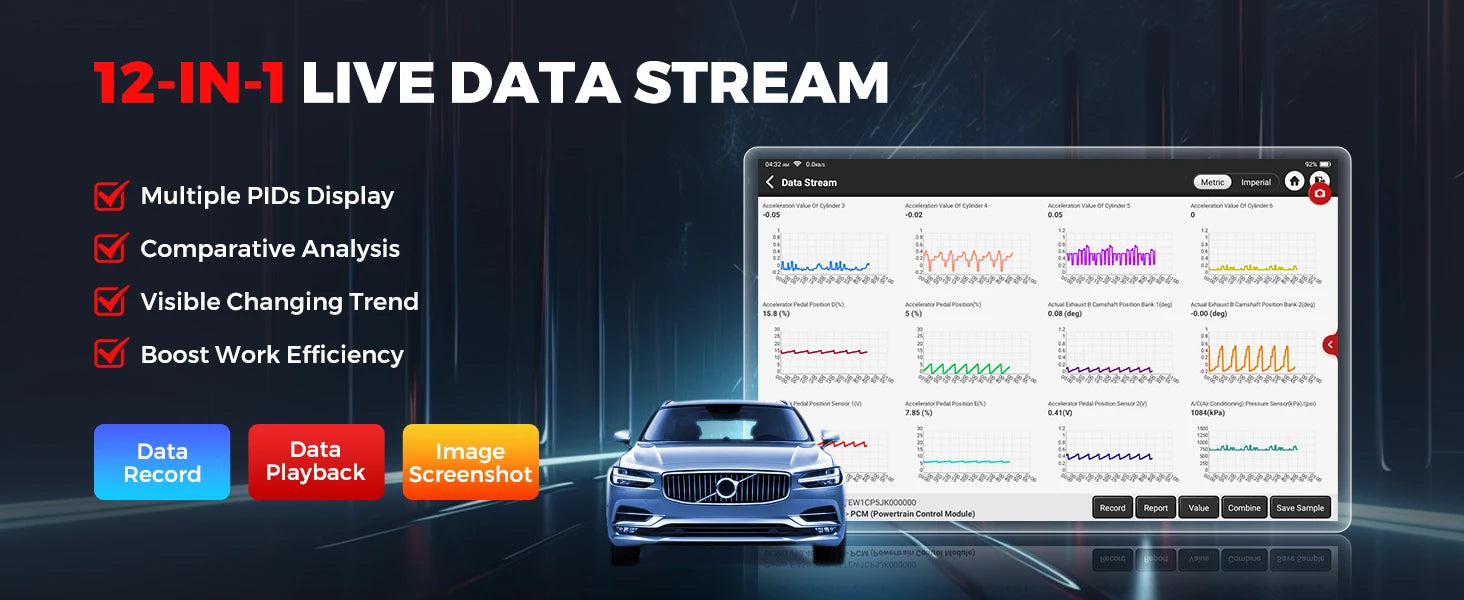

--Graph live data stream: view the dynamic data stream to determine vehicle condition
--ECU Coding : Match, learn, or code the new ECU; Customize your car, unfold the hidden features, or disable the annoying functions; Reprograms the adaptive data for certain components after repairs.
--Active Test ( Bi-directionnal Control ) : Actuate solenoids and actuators for active testing, send commands to systems/components to test their working status, without using the vehicle controls.

With the Diagnose Function , you can enhance performance, save energy, reduce emissions and more as following:

For Engine: detect common issues as Poor lubrication, Failing oil pump, Oil deposits and debris, Inadequate fuel and air compression, Leaking engine coolant, Blocked engine radiators, Prolonged engine detonation, Damaged oxygen sensors, Aged spark plugs, etc.

For SRS: pinpoint the trouble area as: a bad seat belt, a corroded crash sensor, or some water intrusion in a connector, etc.

For ABS: diagnose Blown sensor fuse, Low brake fluids, and Faulty sensor, etc.

For Transmission: avoid Grinding or shaking sensation in gear, Whining, humming or clunking noises, Burning smells, Gears Slipping, Low or Leaking Transmission Fluid, etc.

For TPMS: verify problems of Low tire pressure, Faulty in tire pressure monitor control module, Unknown tire sensor, Failure to identify tire sensor, etc.

KINGBOLEN K8 PRO / ELITE Supports 34+ Service function :

( pls note different reset function supports different cars , also supports some cars , not for all cars , pls contact us check the detailed car list , you also can check in the link directly : https://h5.thinkcar.com/coverage/all ）

1> Oil Reset Service

This function enables you to reset the oil service for the engine oil life system,which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.
lt needs to be performed in the following cases:
1. lf the service lamp is on, run car diagnostics first for troubleshooting.Afterthat, reset the driving mileage or driving time, so as to turn off the servicelamp and enable a new driving cycle.
2. lf the service lamp is not on, but you have changed the engine oil or electric
appliances that monitor oil life, you need to reset the service lamp.

2> Electronic Throttle Position Reset

This function enables you to make initial settings to throttle actuators andreturns the learned values stored on ECU to the default state. Doing so canaccurately control the actions of regulating throttle (or idle engine) to adjust theamount of air intake.

3> Steering Angle Calibration

This function enables you to reset the steering angle,after replacing thesteering angle position sensor,replacing steering mechanical parts (such assteering gearbox,steering column, end tie rod, steering knuckie), performingfour-wheel alignment, or recovering car body.
To reset the steering angle, first find the relative zero point position for thecar to drive in straight line. Taking this position as reference,the ECU cancalculate the accurate angle for left and right steering.

4> Battery Maintenance System Reset

This function enables you to perform a resetting operation on the monitoringunit of vehicle battery, in which the original low battery fault information will becleared and battery matching will be done.
lt needs to be performed in the following cases:
1. The main battery is replaced.
2. The battery monitoring sensor is replaced.

5> ABS Bleeding

This function allows you to perform various bi-directional tests to check theoperating conditions of Anti-lock Braking System(ABS).
lt needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder,brake line, or brake fluid is replaced.

6> Electronic Parking Brake Reset

This function enables you to reset the brake pad after replacing the brake pad.lt needs to be performed in the following cases:
1.The brake pad and brake pad wear sensor are replaced.
2.The brake pad indicator lamp is on.
3.The brake pad sensor circuit is short, which is recovered.
4.The servo motor is replaced.

7> Diesel Particulate Filter (DPF) Regeneration

This function enables you to clear PM(Particulate Matter) from the DPF filterthrough continuous combustion oxidation mode (such as high temperatureheating combustion,fuel additive or catalyst reduce PM ignition combustion)to stabilize the filter performance.
lt needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MlL is on and maintenance is performed.
6. The DPF regeneration control module is replaced.

8> Gear Learning

This function enables you to perform tooth learning for the car, to turn off the MIL.
lt needs to be performed in the following cases:
1. After the engine ECu, crankshaft position sensor, or crankshaft flywheel isreplaced.
2. The DTC 'tooth not learned' is present.

9> IMMo Service

This function enables you to perform the anti-theft key matching function, sothat the immobilizer control system on the car identifies and authorizes remotecontrol keys to normally use the car.
lt needs to be performed in the following cases:
When the ignition switch key, ignition switch,combined instrument panel,ECU,BCM, or remote control battery is replaced.

10> Injector Coding

This function enables you to write injector actual code or rewrite code inthe ECU to the injector code of the corresponding cylinder，so as to moreaccurately control or correct cylinder injection quantity.
lt needs to be performed in the following cases:
After the ECu or injector is replaced.

11> TPMS Reset

After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL. Tire pressure resetting must be performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tire
pressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged, and tire is replaced for the car with tire pressure monitoring function.

12> Suspension Calibration

This function enables you to adjust the height of the body.
lt needs to be performed in the following cases:
1. When replacing the body height sensor， or control module in the airsuspension system.
2. When the vehicle height is incorrect.

13> AFS (Adaptive Front-lighting System) Reset

This function enables you to initialize the adaptive headlamp system.

14> Gearbox Matching

This function enables you to complete the gearbox self-learming to improvegear shifting quality.
lt needs to be performed in the following cases:When the gearbox is disassembled or repaired.

15> Sunroof Initialization

This function enables you to set the sunroof lock off,closed when it rains,sliding / tilting sunroof memory function, temperature threshold outside the caretc.

16> EGR Adaption

This function is used to learn the EGR(Exhaust Gas Recirculation) valve afterit is cleaned or replaced.

17> Odo Reset

ODO reset is to copy, write, or rewrite the value of kilometers in the chip of odometer by using a car
diagnostic computer and data cable, so that the odometer shows the actual mileage.
Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it
is necessary to do ODO reset after maintenance.

18> Airbag Reset

This function resets the airbag data to clear the airbag collision fault indicator. When the vehicle collides and the airbag deploys, the corresponding fault code of the collision data appears, the airbag indicator lights up, and the fault code cannot be cleared. Since the data inside the airbag computer is disposable,
it is required that all new accessories must be replaced, but after performing this function, the data of the airbag computer can be recovered and the fault code can be cleared, the airbag light will go out, and the airbag computer can continue to use.

19> Transport Mode

In order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote-control key, etc. At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

20> A/F Reset

This function is applied to set or learn Air/Fuel ratio parameters.

21> Stop/Start Reset

This function is used to open or close the automatic start-stop function via setting the hidden function in ECU (provided that the vehicle has a hidden function and supported by hardware).

22> NOx Sensor Reset

NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. If the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.

23> AdBlue Reset (Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fl uid (car urea) is replaced or filled up, urea reset operation is required.

24> Seat Calibration

This function is applied to match the seats with memory function that are replaced and repaired.

25> Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.

26> Tyre Reset

This function is used to set the size parameters of the modifi ed or replaced tire.

27> Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

28> Language Change

This function is used to change the system language of the vehicle central control panel.

29> Clutch Matching

This function is for clutch pedal position or switch learning for adaptive clutches. After ECU replacement, gearbox replacement or removal, and clutch replacement, this function learns the contacts and positions where the clutch starts to transmit engine torque.

30> ECU Reset

After performing the encoding function of some systems, it is necessary to implement the control unit reset; sometimes the data of bad driving habits can also be eliminated by resetting the ECU.

31> FRM Matching

The Footwell Module is referred to as FRM. It is composed of a circuit module with a CPU. Its main function is to control the doors, windows, headlights and communication system of the vehicle. FRM Matching is used to clear the short circuit fault of the light.

32> Gateway Module Data Calibration

A "gateway" is designed between the two independent buses of the power system CAN and the body system CAN to realize the resource sharing between each CAN and feed back the information of each data bus to the instrument panel. After replacing the gateway control unit, there may be inconsistencies such as VIN, so it needs to be calibrated.

33> Rainfall Light Sensor

The rain sensor is used to adjust the wiper frequency, and the light sensor adjusts the light intensity of the automatic headlights according to the ambient light and darkness. This function can adjust the initial parameters.

44> Turbocharging Matching

The parameters that aff ect the engine boost mainly include the air flow of the engine, the boost pressure ratio, the effi ciency of the compressor, and the temperature of the engine exhaust gas. Replaced parts such as turbine, its initial value must be reset, and, if fi ne-tuning is required, make some settings through this function.
................

The Other Function of KINGBOLEN K8 PRO / ELITE :

1. Remote Assistance

In this function, you can request remote assistance through third-party software. By sending your device ID number to the remote technician or after-sales personnel, you can authorize the other party to remotely operate the device, so as to guide you to the problems encountered in the process of using the device.

2. File

It is used to record and establish the fi le of the diagnosed vehicles. The fi le is created based on the vehicle VIN and check time, including all VIN-related data such as diagnostic reports, data stream records and pictures.

3. Repair Info

Tap "Repair Info" on the homepage, the following page will appear :

OBD Fault Code Library
Coverage List
Learning materials
User Manual
Diagnostic Feedback

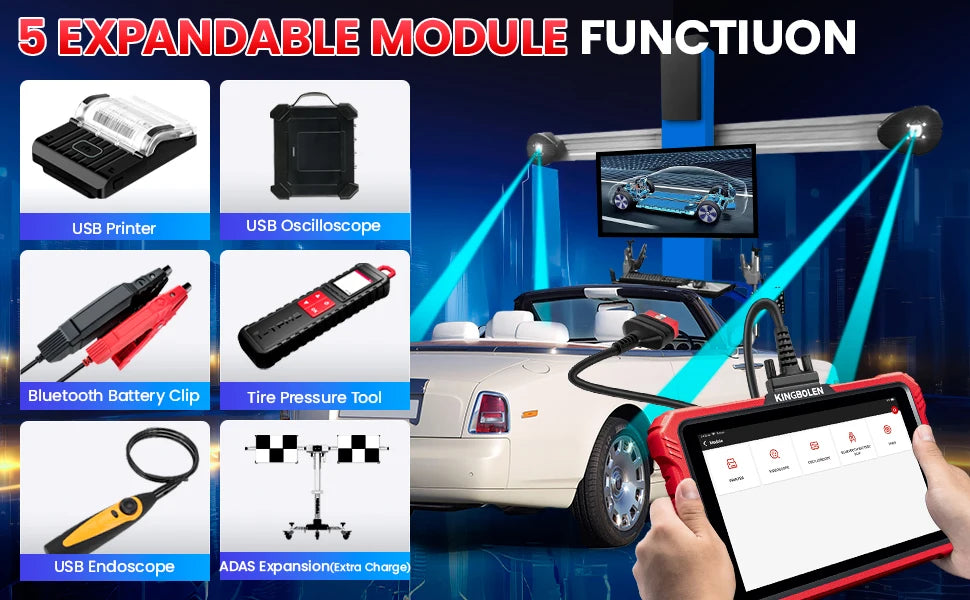

KINGBOLEN K8 PRO / ELITE Supports various extended modules

( All the models need buy additionally )

1. ADAS Function : need works with KINGBOLEN ADAS TOOL

2. Printer : Thermal printer, can be used with the device or moduledock, quickly print diagnostic reports anytime and anywhere.

3. Video Scope

4. Scope Box

5. Wireless TPMS TOOL

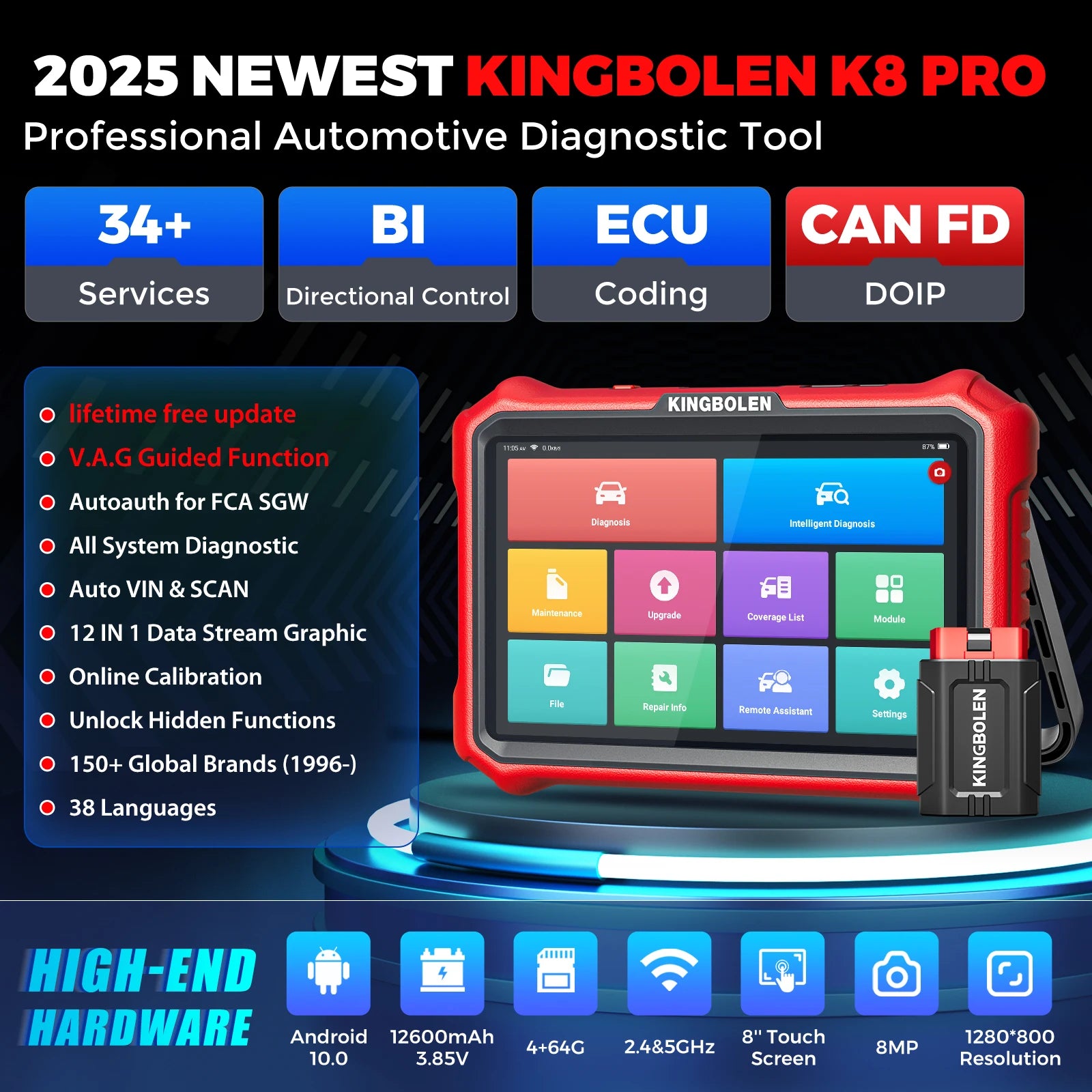

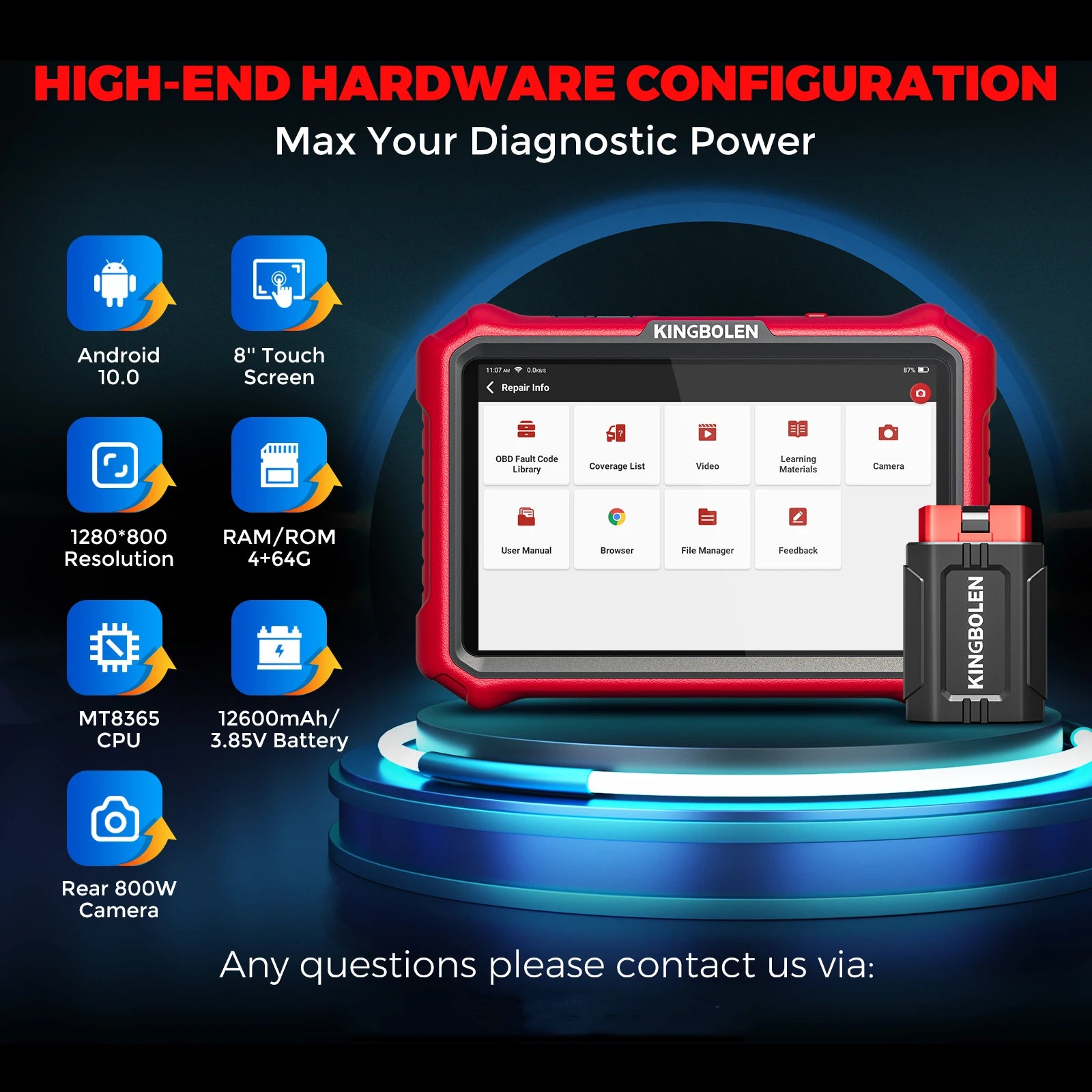

KINGBOLEN K8 PRO / ELITE Parameter :

Tablet size: 8 inches, 1280*800
System version: Android 10
CPU version: MT8365
Running memory: 4GB
Storage memory: 64GB
Battery capacity: 3.7V/12600mAh,
Camera: rear 800W
Wifi network: 2.4GHz, 5.0Ghz dual-band
Charging power: 5.0V -- 2.5A 12.5W

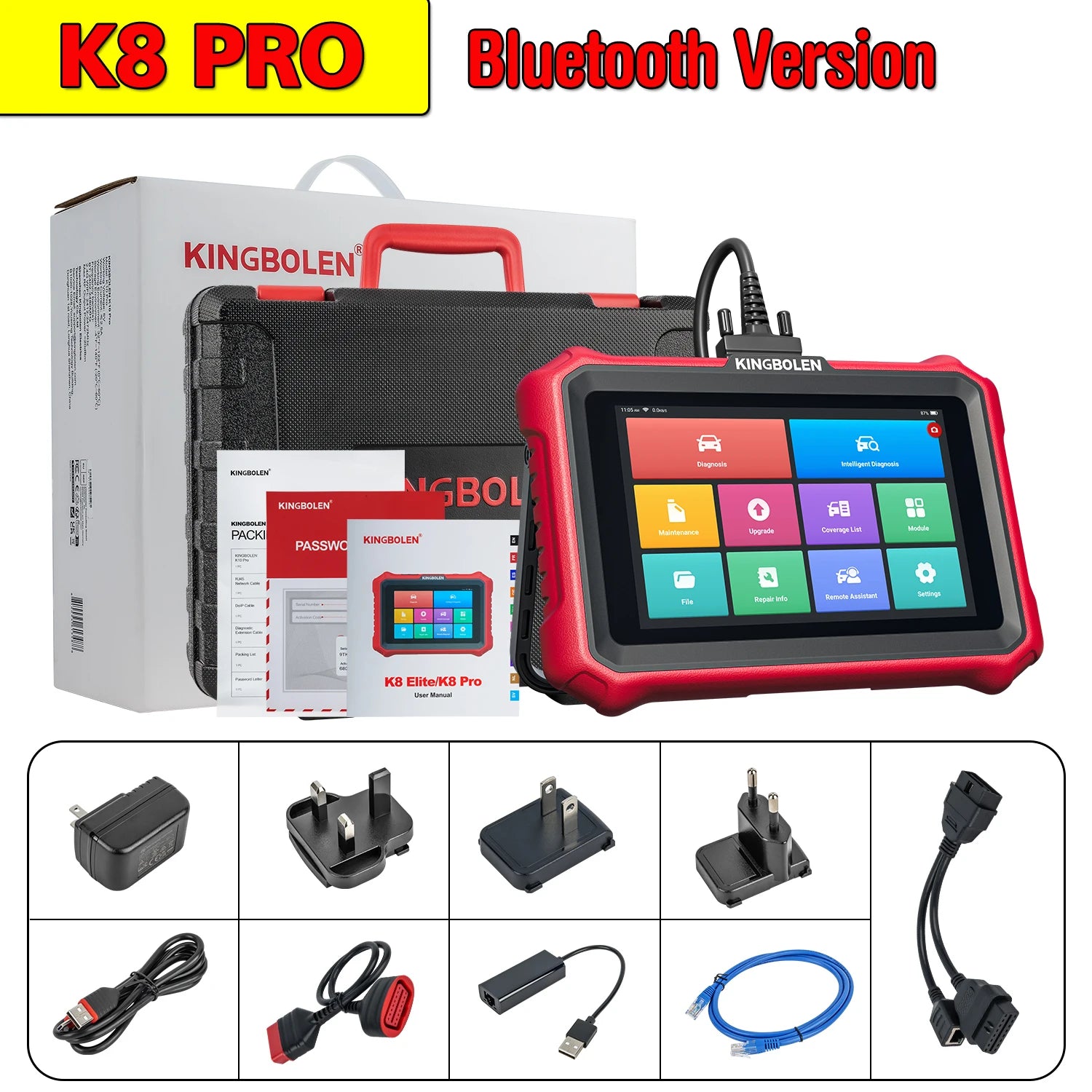

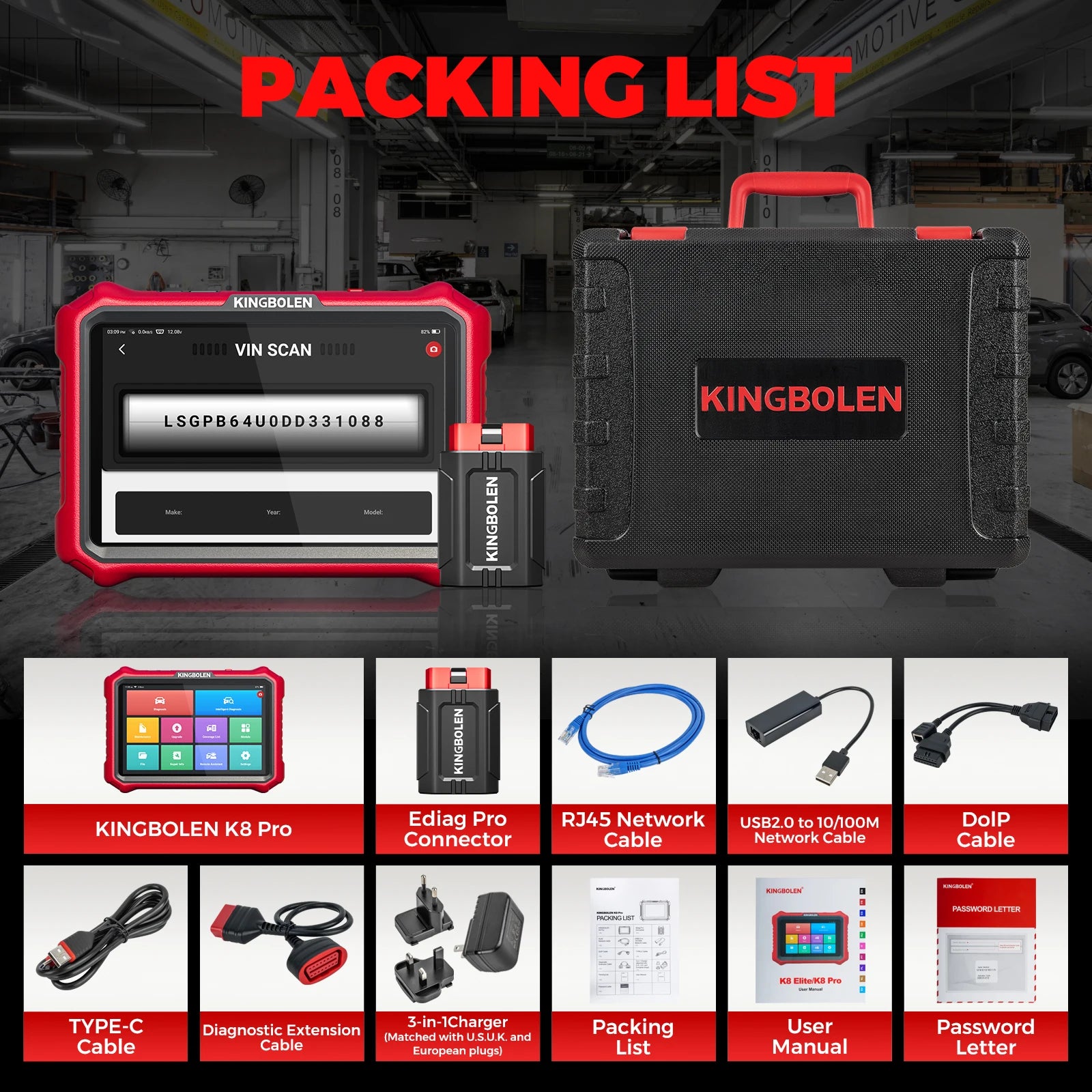

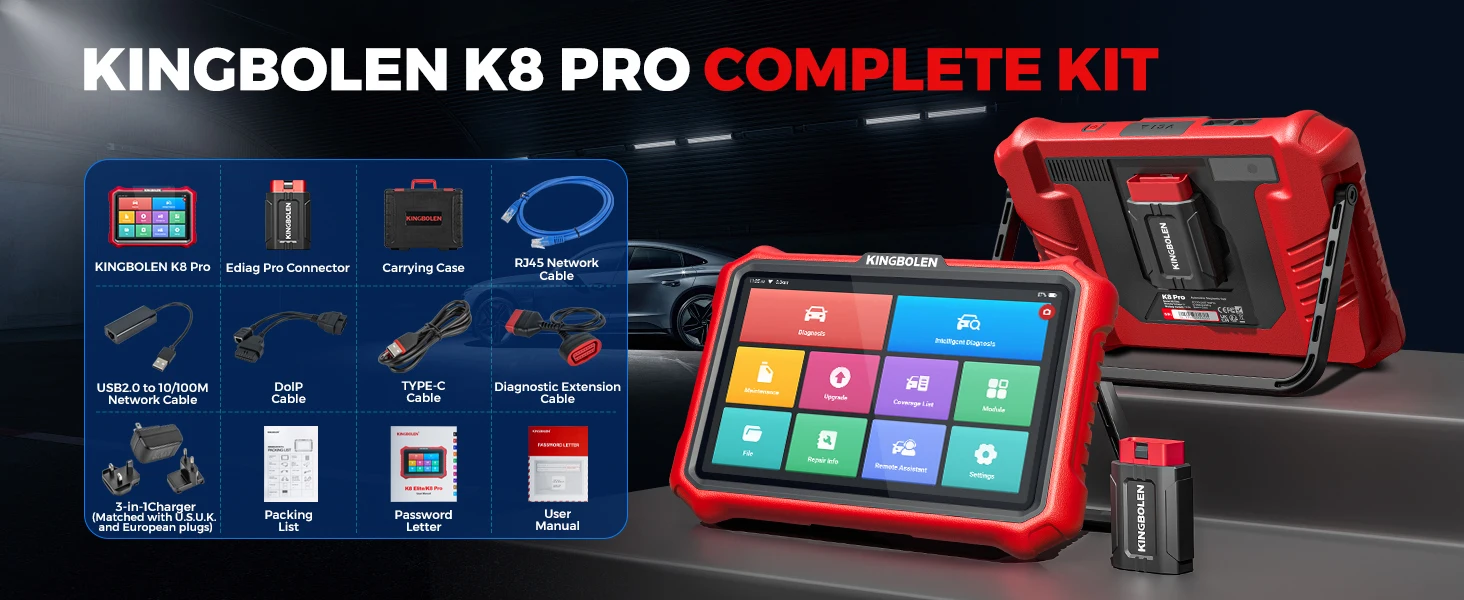

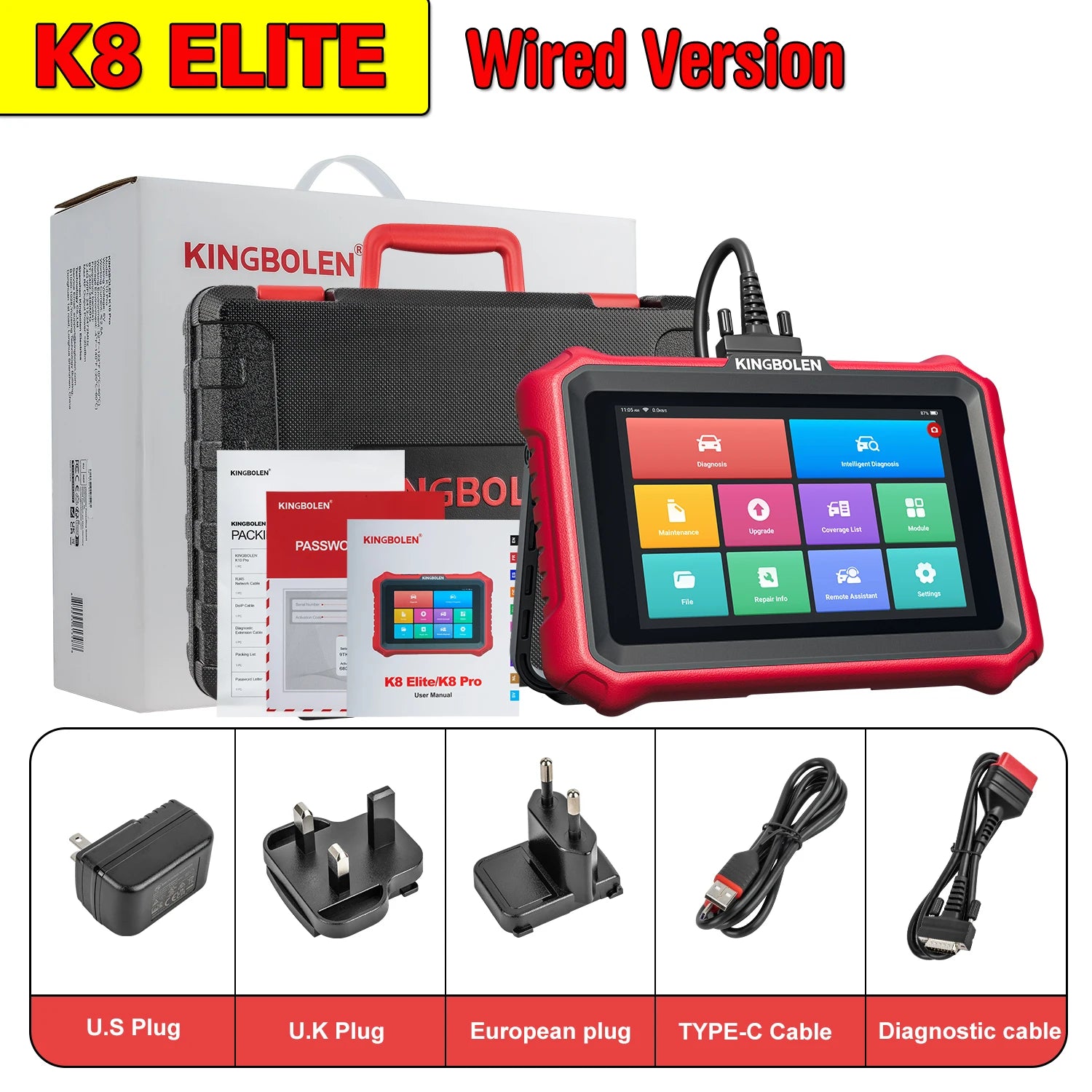

KINGBOLEN K8 PRO Packing List :

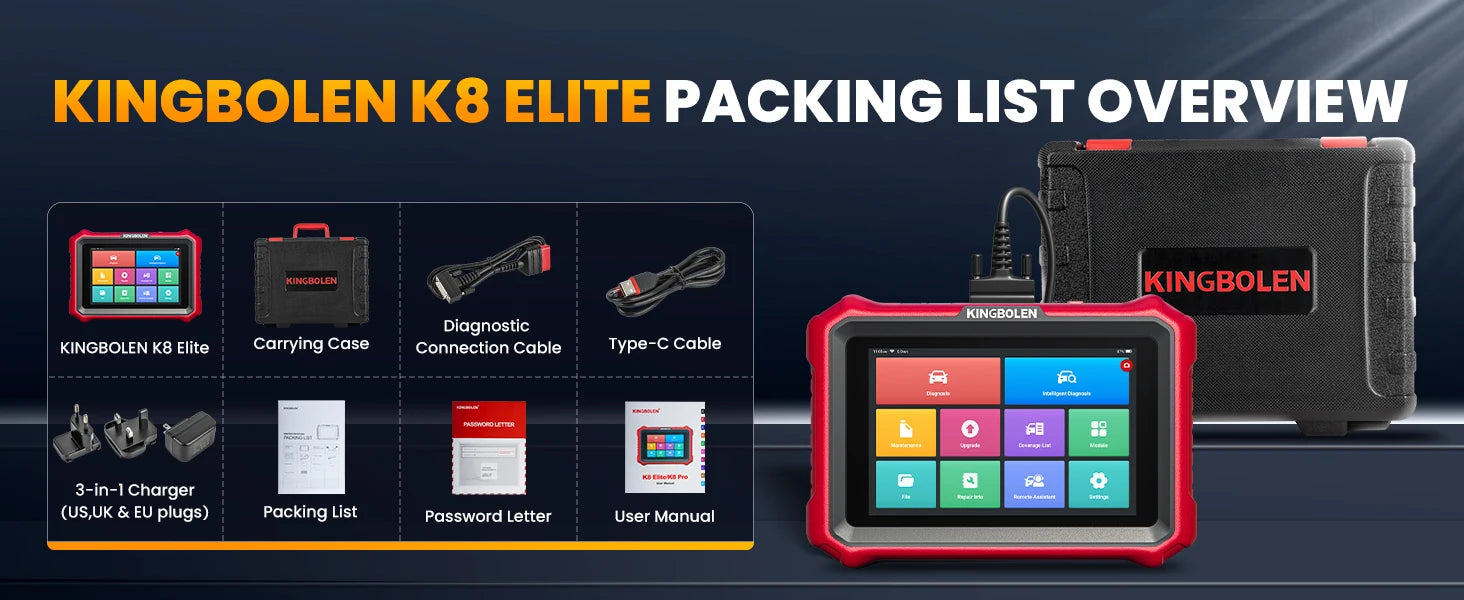

KINGBOLEN K8 ELITE Packing List :
