SPECIFICATIONS

Adjustable height of wedge: 150mm

Brand Name: BRT Boruite Machinery

Certification: CE,EPA

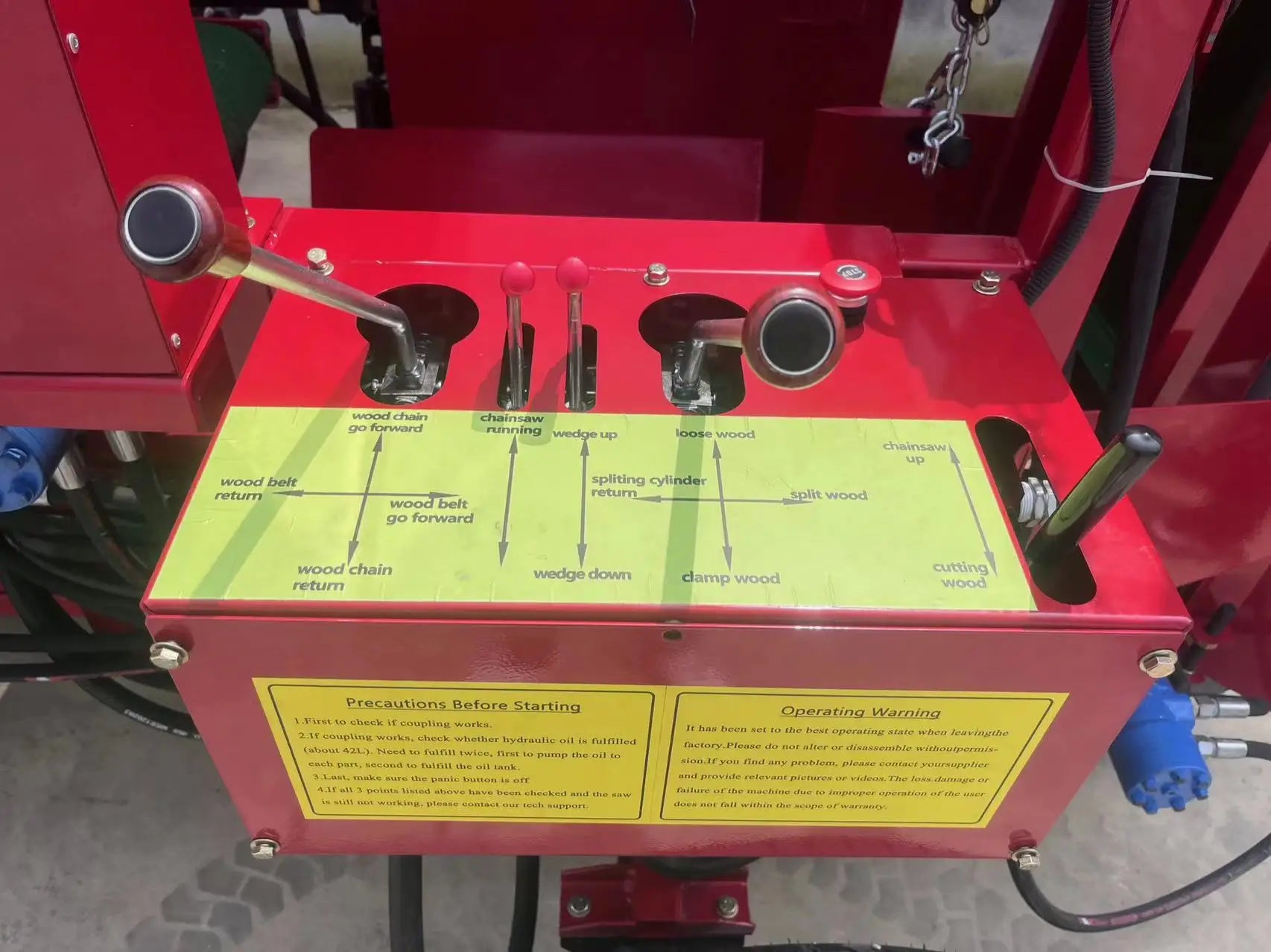

Control valve: 5-handle, 14-Directional

Engine: 20 HP HONDA GX630 Electrical start

Hign-concerned Chemical: None

Hydraulic Oil Tank Capacity: 54L

Ideal Productivity: 10-13 cbm/h (2-3.5 cords/h)

Length of Chainsaw (inch): 25inch

Length of feeding wood (mm): 1000-6000mm

Log Diameter: 19.68inch

Max diameter of splitting wood: 19.68inch

Max. Splitting Length: 22.83inch

Model Number: YHT45T500

N./G. Weight (kg): 1080/1300

Origin: Mainland China

Out Feed Wood Conveyor Length: 3000mm

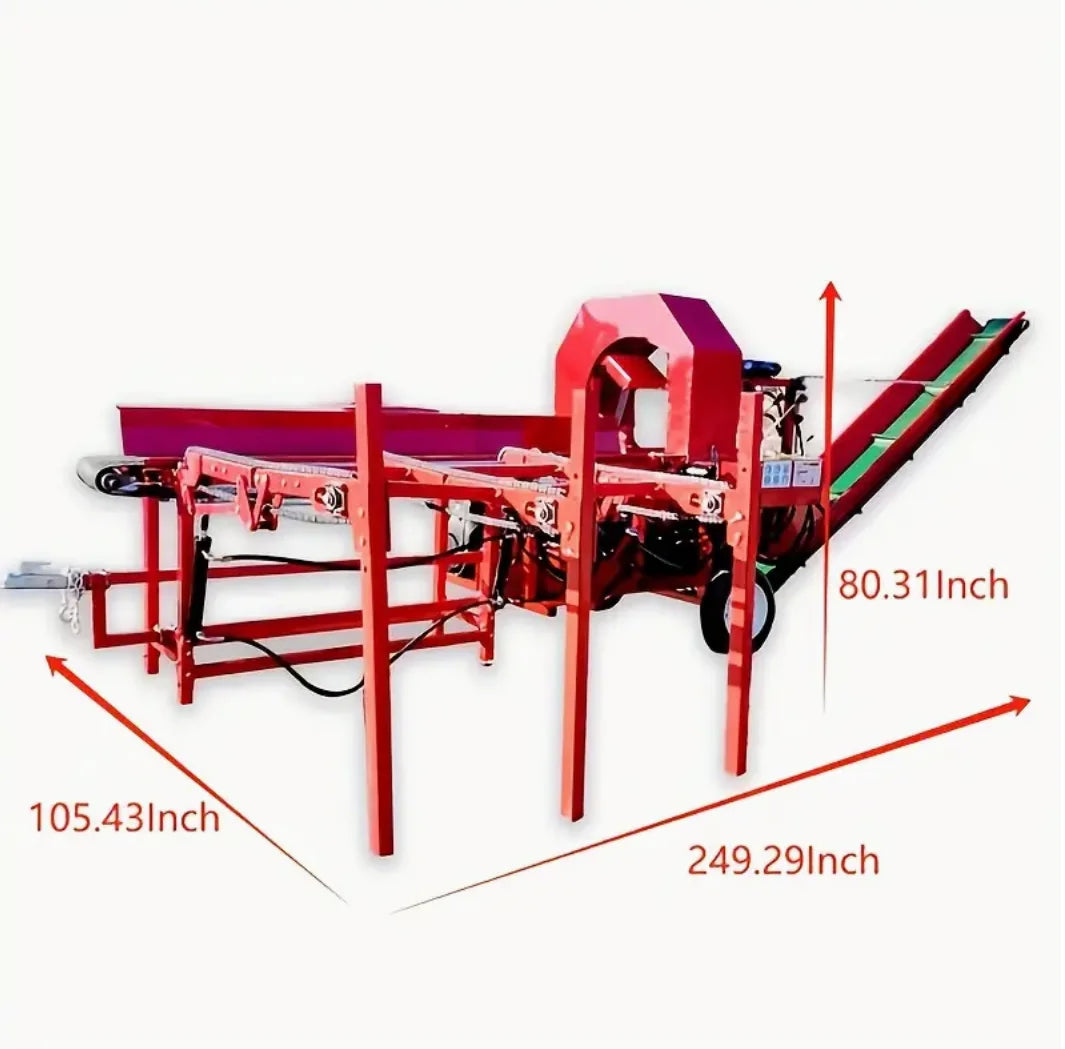

Package size (L*W*H, mm): 2260*1400*1500(3M conveyor)

Power Type: Petrol / Gas

Split Cylinder Diameter (inch): 5inch

Splitting force (T): 45T

Tyre size: 250/70R15C

Wedge with hydraulic adjust: 4-way, 6-way

Product introduction

Equipped with a robust 20HP HONDA gasolineengine, this wood splitter is powered by a cost-efficient gasoline engine that provides amplepower for effortless wood splitting. lt is capable ofsplitting logs up to 50 cm/19.6 inches in diameterand is suitable for various wood types, such ashardwoods, softwoods, and even bamboo.It is a great choice for the home, shop, farmer orrancher who needs a compact, rugged, yet wellpriced machine.

Basic configuration

45T500:(Essential setup)

1)Engine Brand: 20HP HONDA GX630 (gasolineengine)

2)Maximum cutting diameter(mm):500mm=19.6 inches

3) Chainsaw length (inch): 25 (STIHL)

4)Wedge: 4-Way, 6-Way

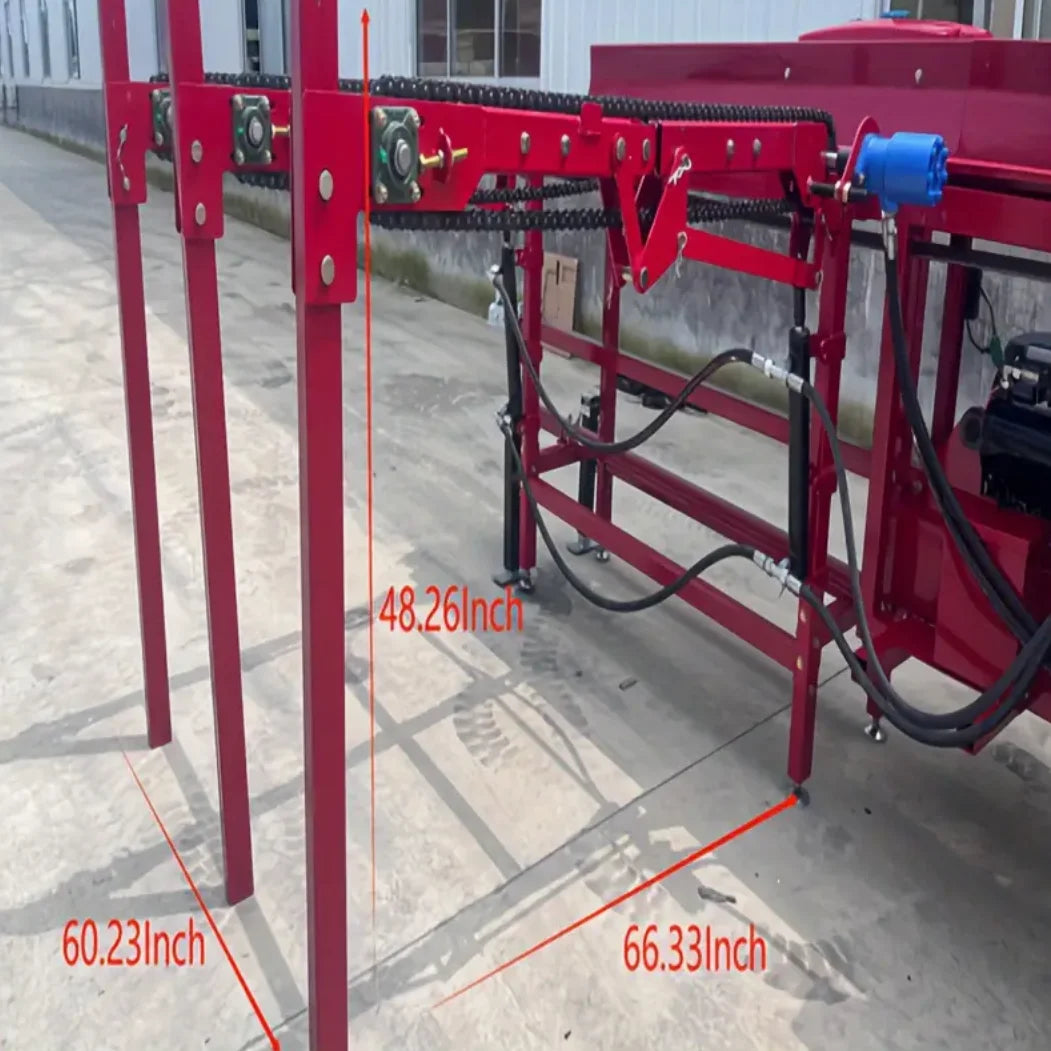

5) Chain table

6) Conveyor: 3m conveyor7) Split wood cylinder (inch): 5"

8) Shock Absorption, Torsion Shaft

9) Color: Red

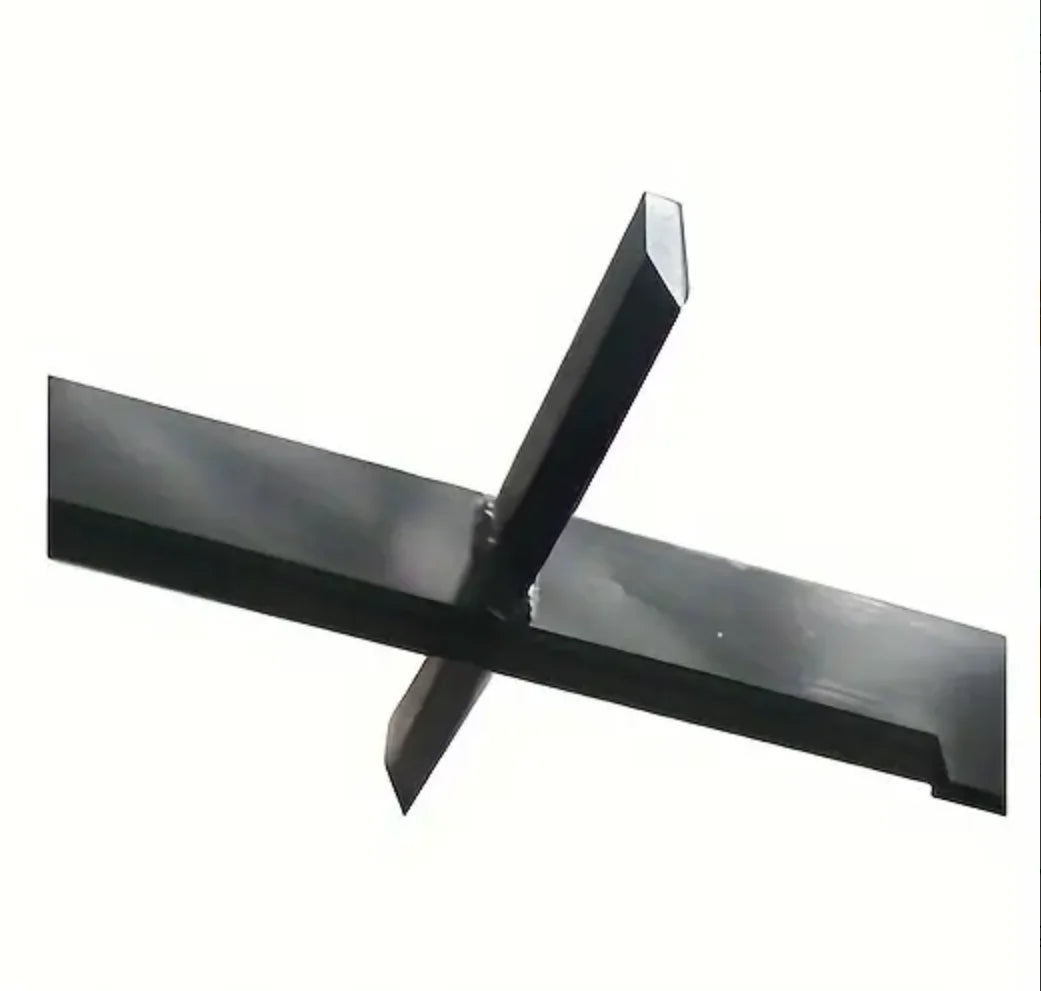

4WAY

Split the wood into four pieces

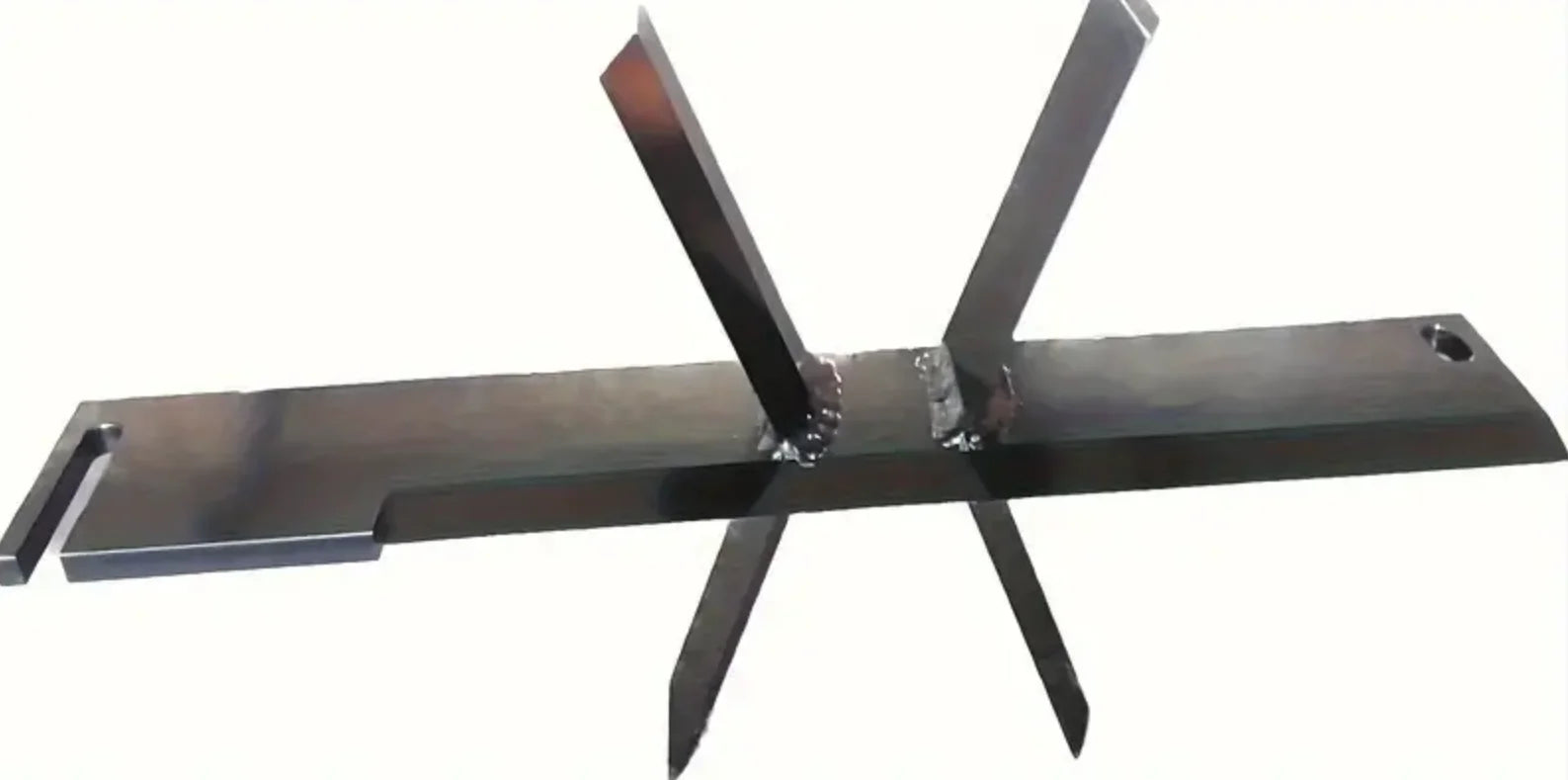

6WAY

Split the wood into six pieces.

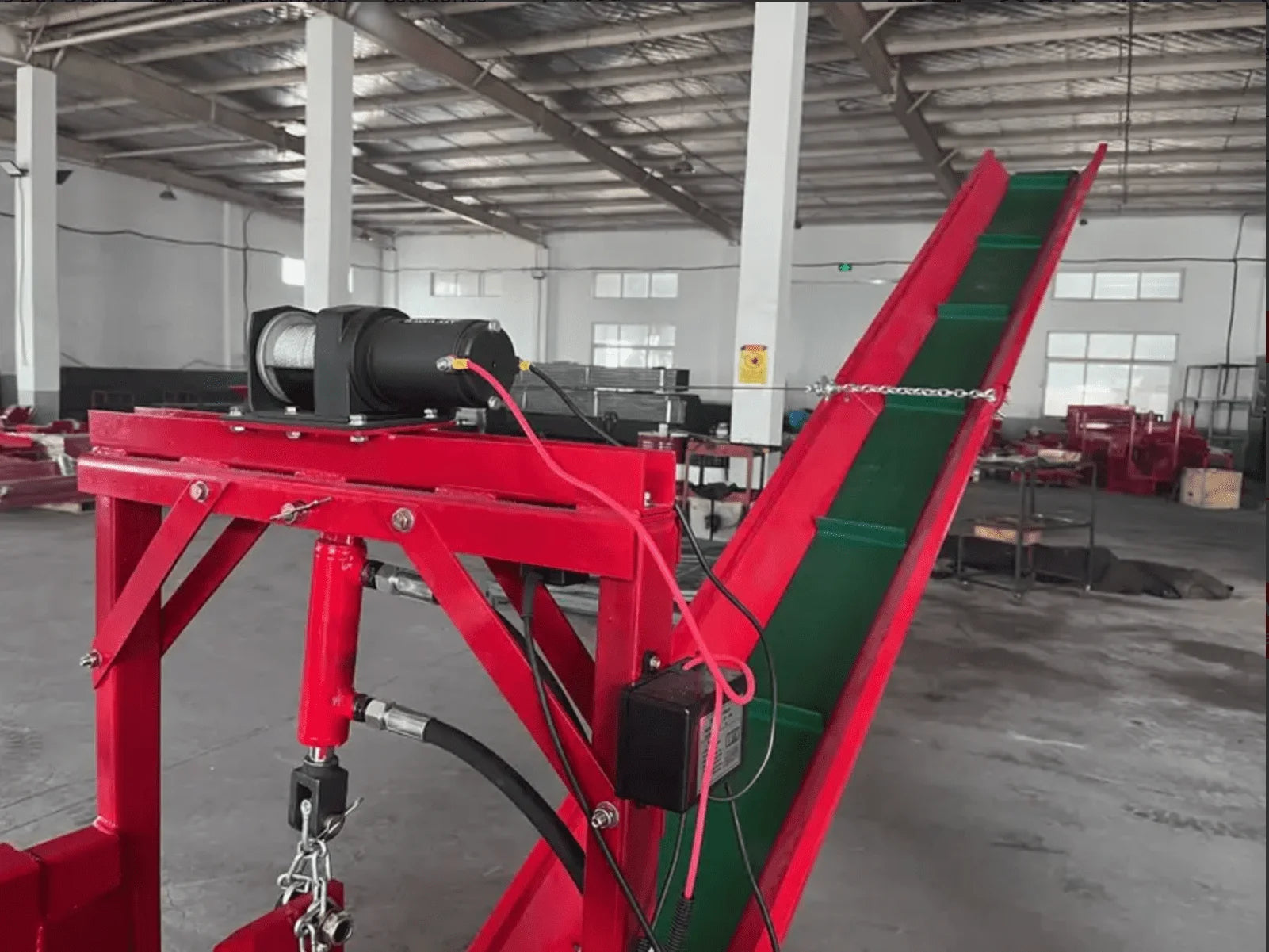

Electric capstan

Utilizing an electric remote control to modify theconveyor's height

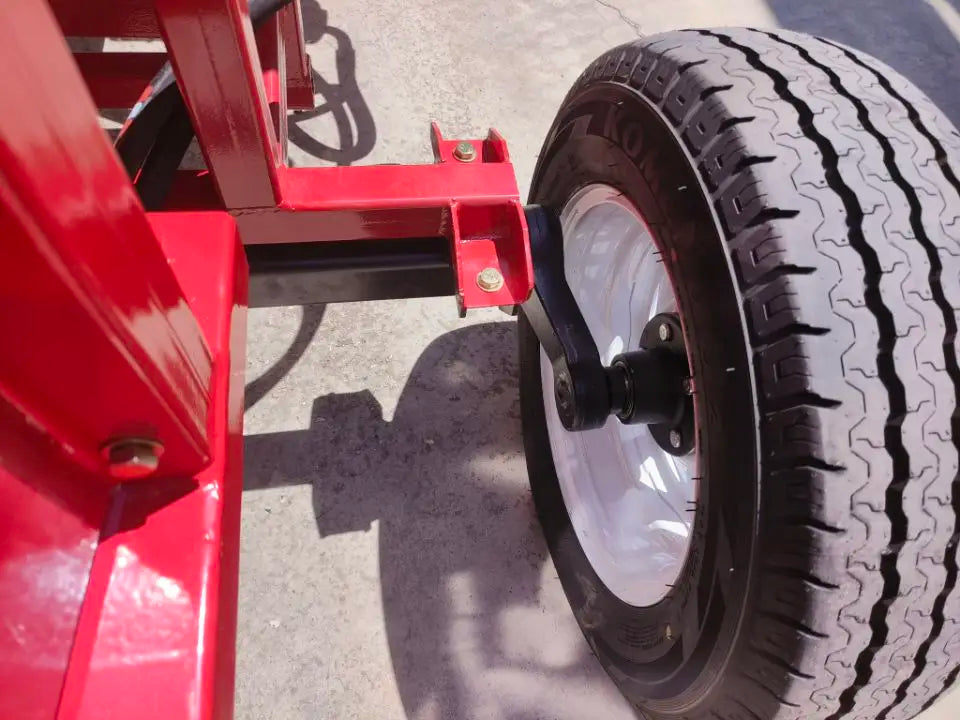

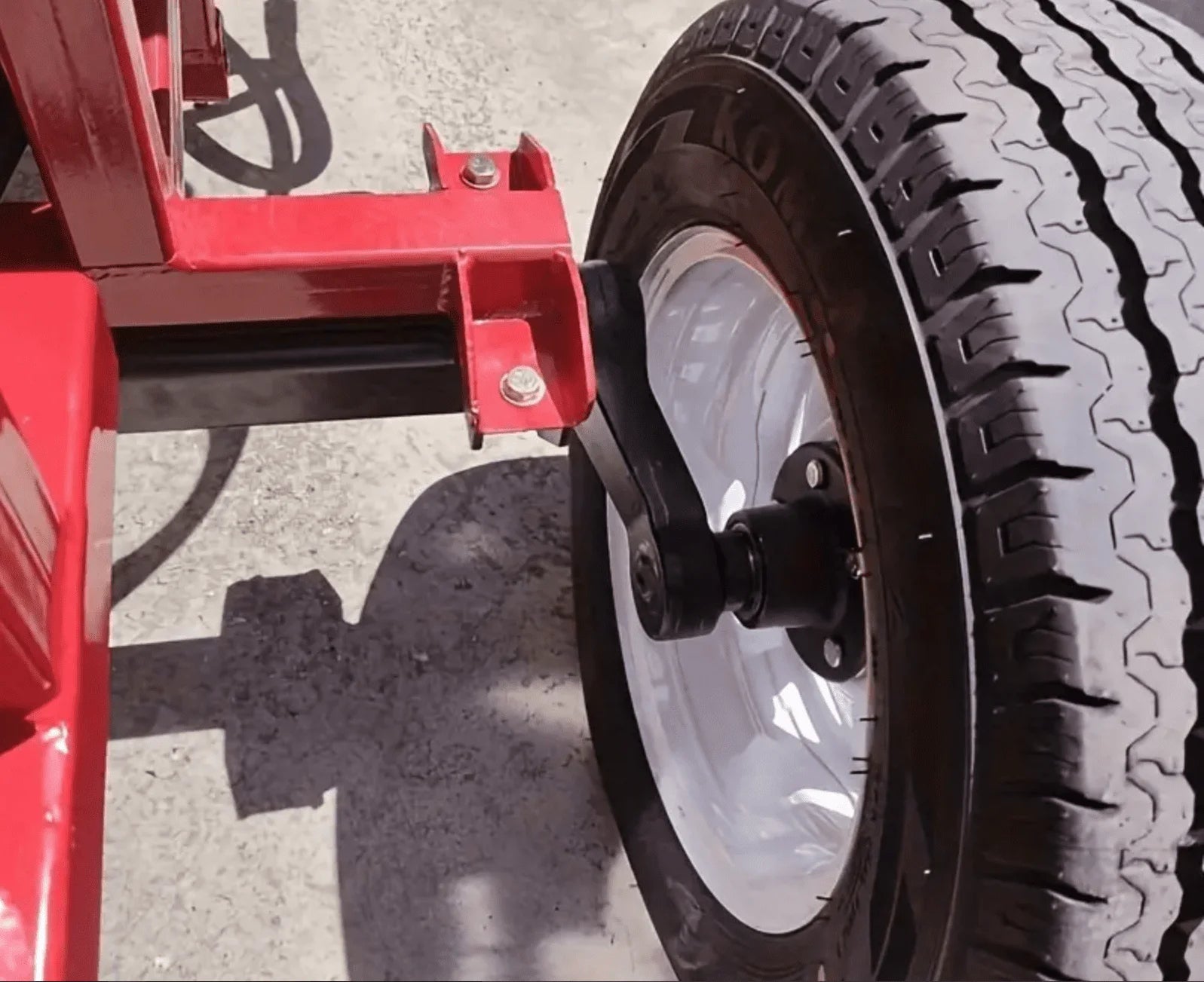

Torsion shaft shock absorber

Adapt to local roads, forests, and more stabletowing.

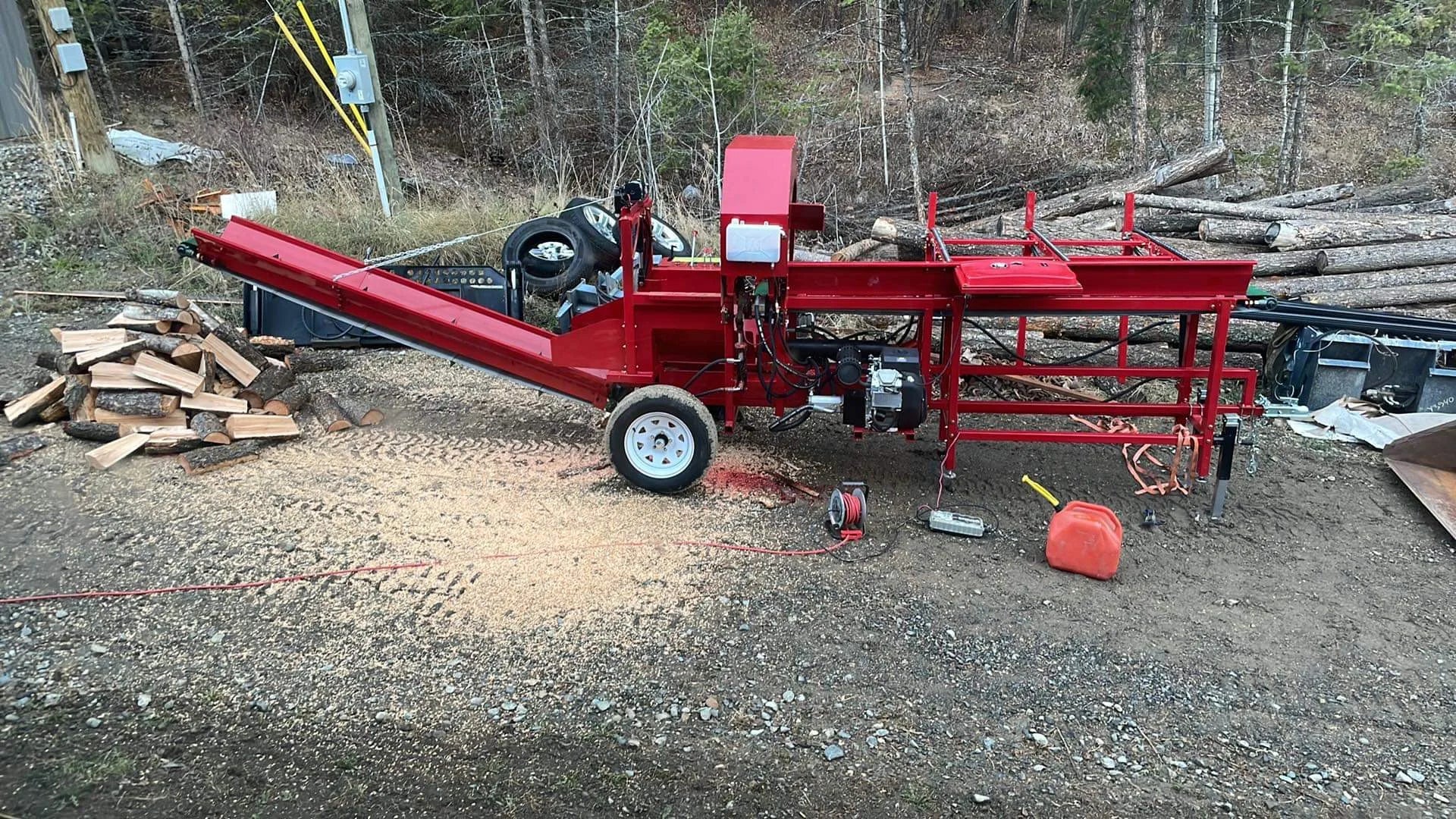

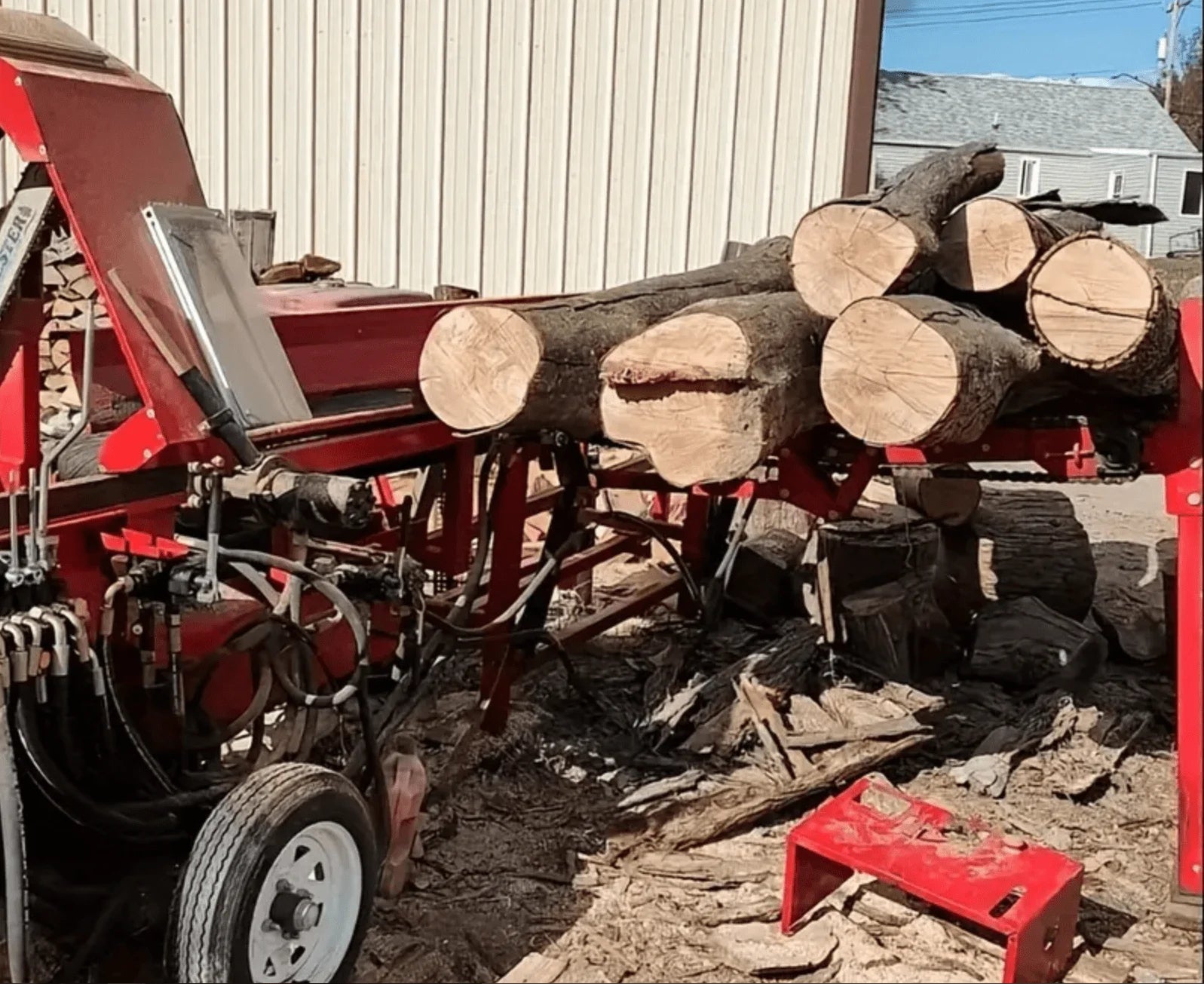

Customers feedback photos

which have been used for more than 5 years. Thelinked list is powerful enough to apply to heavyenough wood.

Product packaging

We offer a 1-year on our products, 24-hour onlineservice for technical support via email or phonetraining on machine installation and usage, valueyour feedback,technical exchange, video tutorialsfor small and medium-sized goods installation anddebugging if required, and free replacement ofcertain parts.

The product is secured with an iron frame, coveredwith protective film, and enclosed in an outercarton.
