SPECIFICATIONS

Assembly Mode: Hidden Type

Auto Power: YES

Battery: None

Brand Name: jabriel

CPU: Novatek 96675

Camera Resolution: 2560x1440

Certification: None

Chipset Manufacturer: NOVATEK

Current frequency: 50Hz/60Hz

Cycle Recording: YES

Display: No Screen

Frames Per Second: 30

Front Camera: 170 Degree

G-Sensor: YES

GPS logger: None

Hign-concerned Chemical: None

Image Sensor: Sony IMX307

Imaging Sensor: Sony IMX307

Interface: AV-Out,Wi-Fi,Micro SD/TF

Interface1: Micro SD/TF

Interface2: AV-Out

Interface3: Wi-Fi

Item Type: Car DVR,Car DVR

Max External Memory: 128G

Memory Card Required Reding Speed: Class 10

Number Of Lenses: 2

OSD Language: English

One Lens Resolution: 1600P

Origin: Mainland China

Original Package: Yes

Pixels: 1200Mega

Rear Camera: Yes

Screen Ratio: None

Special Features: G-Sensor,Display Rotate,sd/mmc card,Anti Surge Voltage Impact,Waterproof,Anti Fog,Anti Vibration,Real Time Surveillance,Automatic White Balance,Wide Dynamic Range,wifi function

Special Features1: 24-Hour Parking monitoring (Option)

Special Features2: New Plug and Play

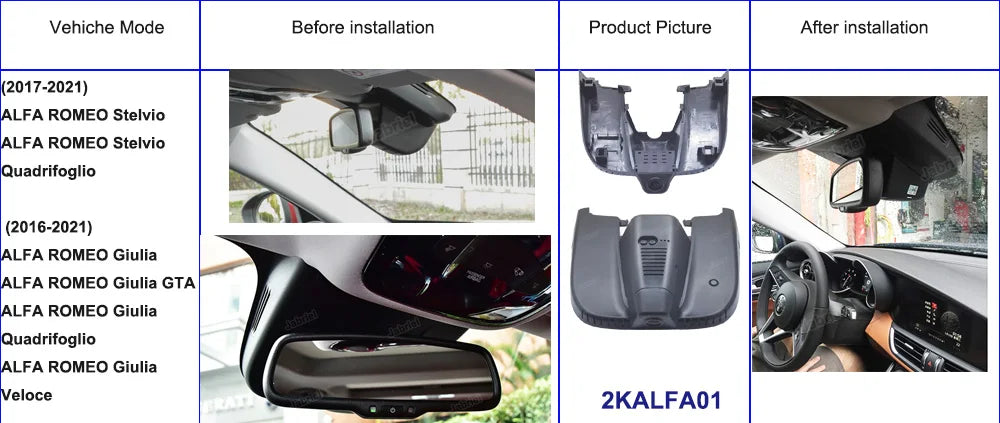

Suitable for models1: ALFA ROMEO Stelvio

Suitable for models2: ALFA ROMEO Giulia

Suitable for models3: ALFA ROMEO Stelvio 2017 2018 2019 2020 2021

Suitable for models4: ALFA ROMEO Stelvio Quadrifoglio 2017 2018 2019 2020 2021

Suitable for models5: ALFA ROMEO Giulia 2016 2017 2018 2019 2020 2021

Suitable for models6: ALFA ROMEO Giulia GTA 2016 2017 2018 2019 2020 2021

Suitable for models7: ALFA ROMEO Giulia Quadrifoglio 2016 2017 2018 2019 2020 2021

Suitable for models8: ALFA ROMEO Giulia Quadrifoglio 2016 2017 2018 2019 2020 2021

Time synchronization: Yes

Touch Screen: No

Two lens Resolution: Front Cam 1440P +Rear Cam 1080P

Video Code: H.264

Video Format: MOV,MP4

Video coding: H264 / H265

View angle: 170°

Work Voltage: 12V

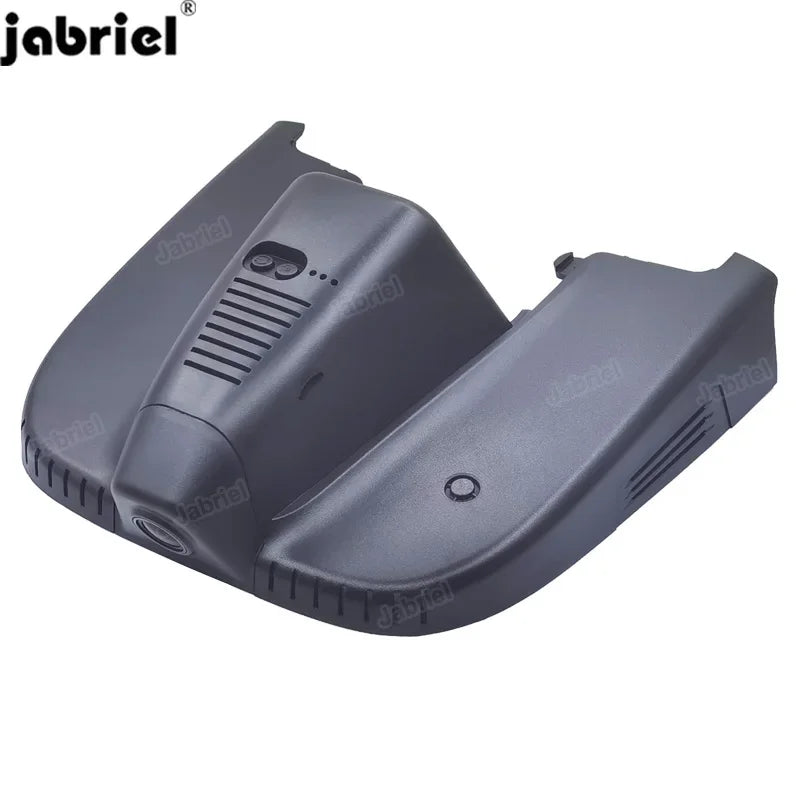

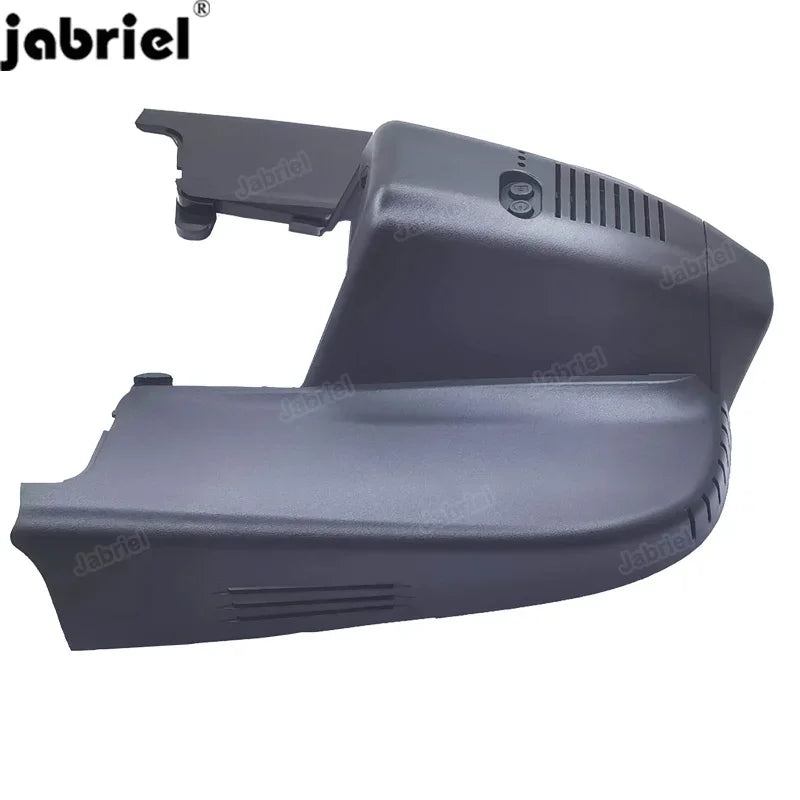

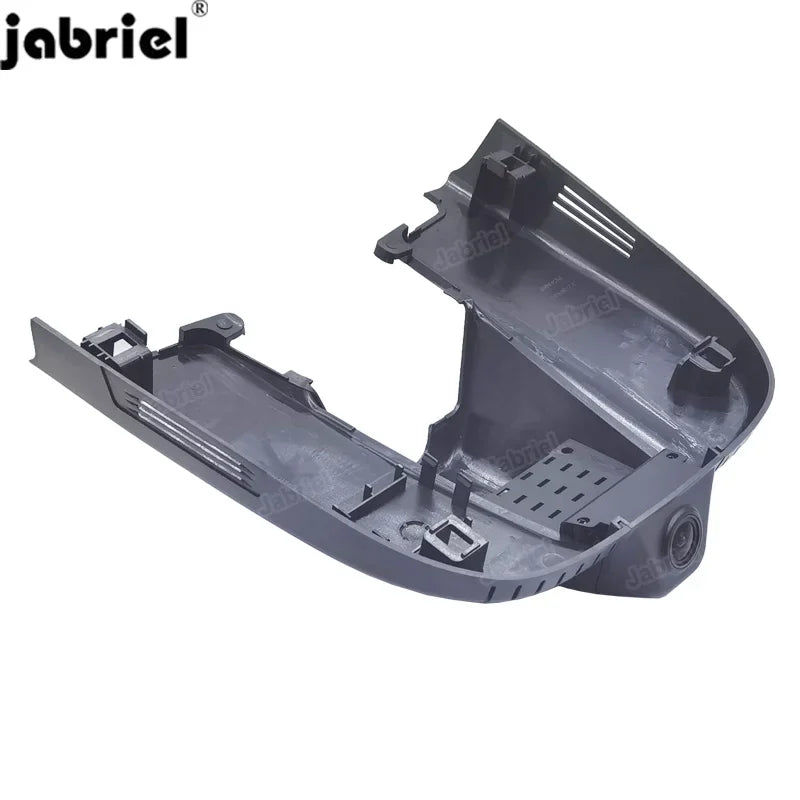

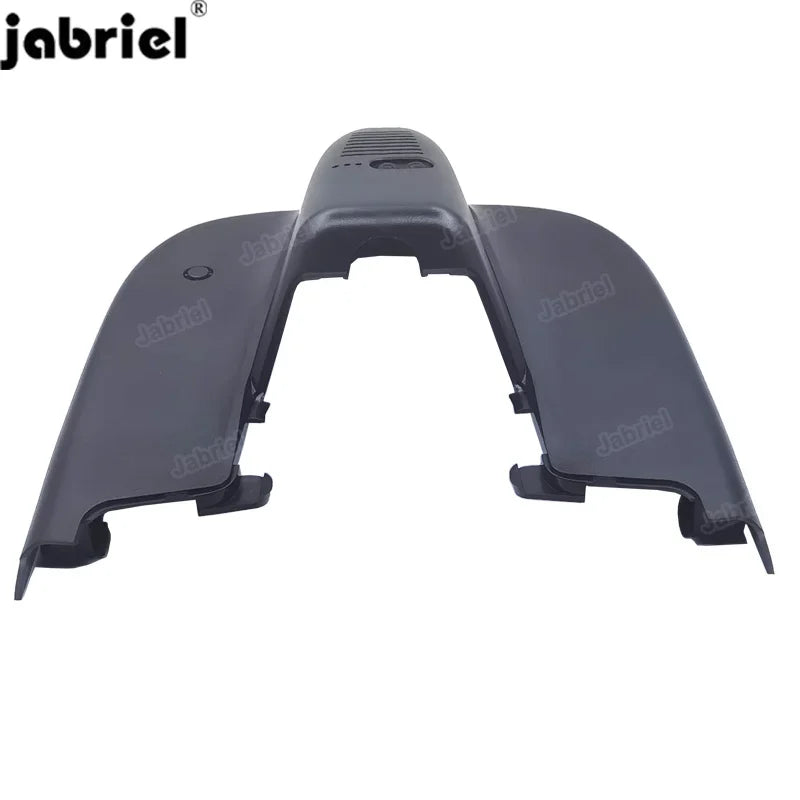

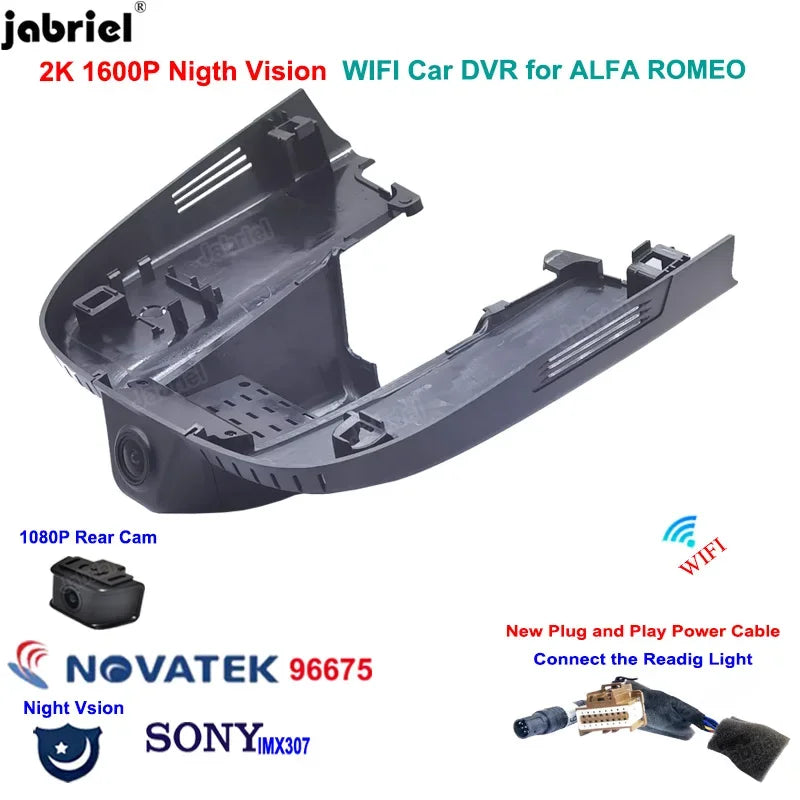

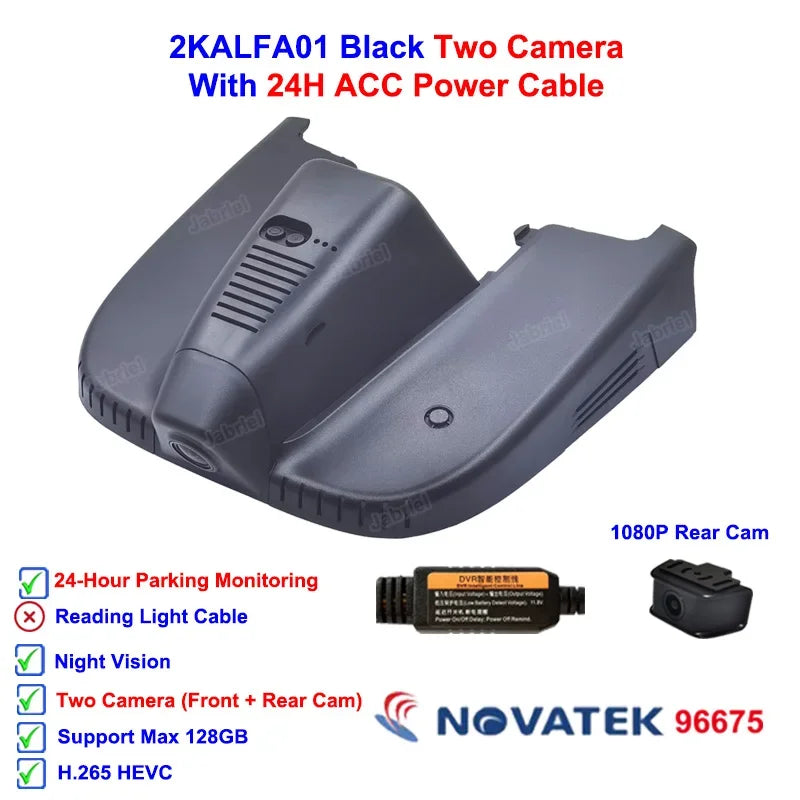

Jabriel New Plug and Play Auto Hidden Wifi Car DVR Cameras Video Recorder 2K 1600P/1440P Night Vision Registrator Driving Recorder Dash Cam Rear Camera Dual Lens Dashcam EDR for ALFA ROMEO Stelvio, for ALFA ROMEO Stelvio Quadrifoglio, for ALFA ROMEO Giulia, for ALFA ROMEO Giulia GTA, for ALFA ROMEO Giulia Quadrifoglio, for ALFA ROMEO Giulia Veloce.


Package Include:

1 x Car DVR

1 x Manual

1 x Power Cord

1 x Rear Wire(option)

1 x Rear Camera(option)



Please Contact customer service to send photos when you buy it



Please note: Because this product is dedicated,  in order to avoid installation or other problems, please tell us which year and which model of your car, and be sure to take photos for the rear view mirror base and send it to me.



New Plug And Play Hidden WIFI 2K 1600P / 1440P Night Vision Dash Cam Car DVR For ALFA ROMEO


New Plug and Play Car Dvr Dash Cam   Easy to install

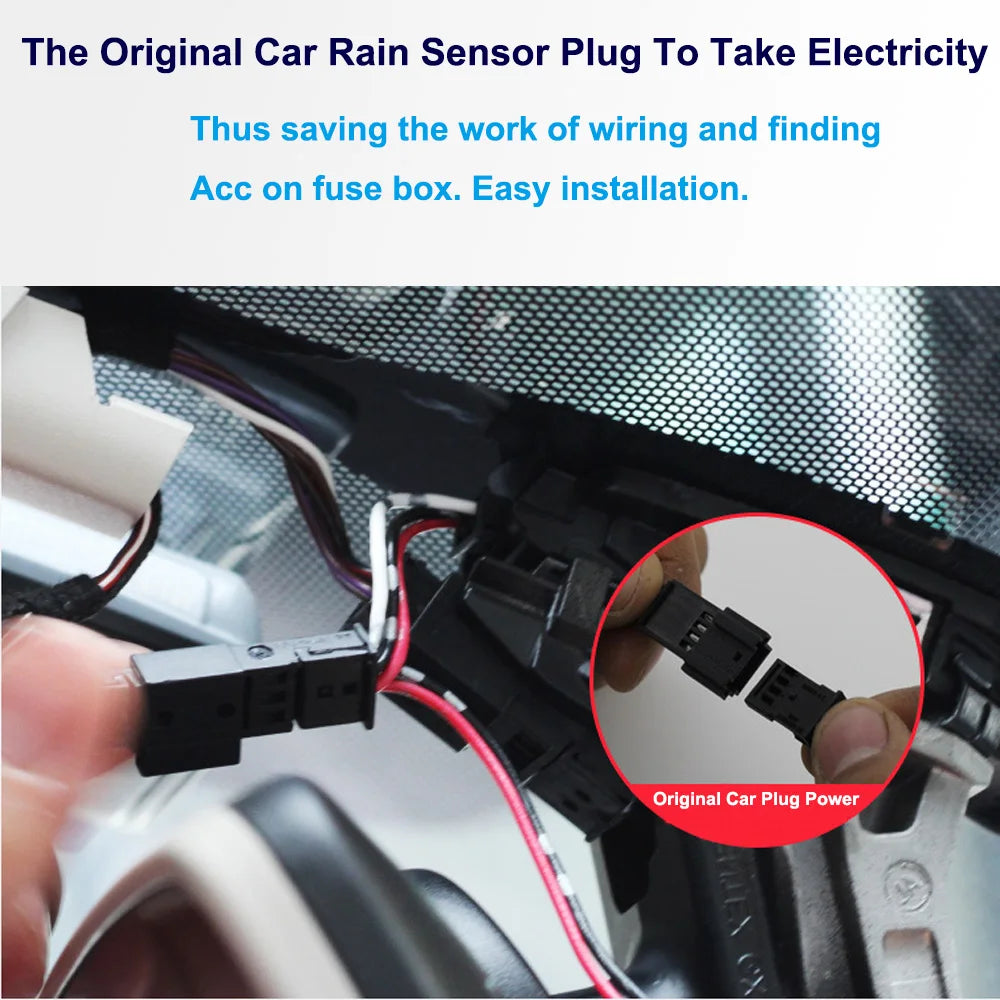

Connect to the rain sensor or reading light of the Original car



The New Plug and Paly Car Dvr Dash Cam can be pluged to the rain sensor or reading light of the original car to take electricity.It is easy to install. Inserted without damage, no wiring is required, and it maintains the original car style after installation.



Safety explosion protection

High and low temperature resistance,no built-in battery design, more

safer Automotive fuse power, built-in low voltage monitoring,

automatic shutdown, non-destructive battery.

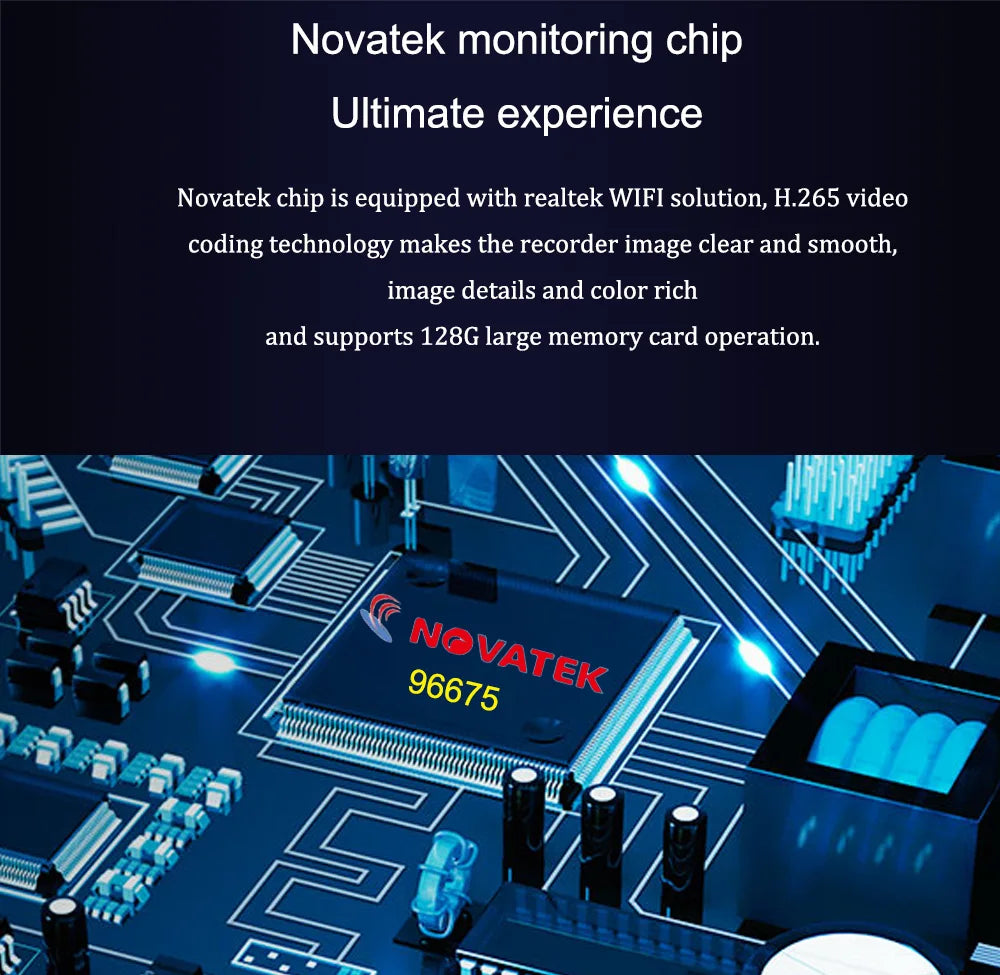

Novatek Monitoring Chip, Ultimate Experience

Novatek chip is equipped with realtek WIFI solution, H.265 video

coding technology makes the recorder image clear and smooth,

image details and color rich and supports

128G large memory card operation.

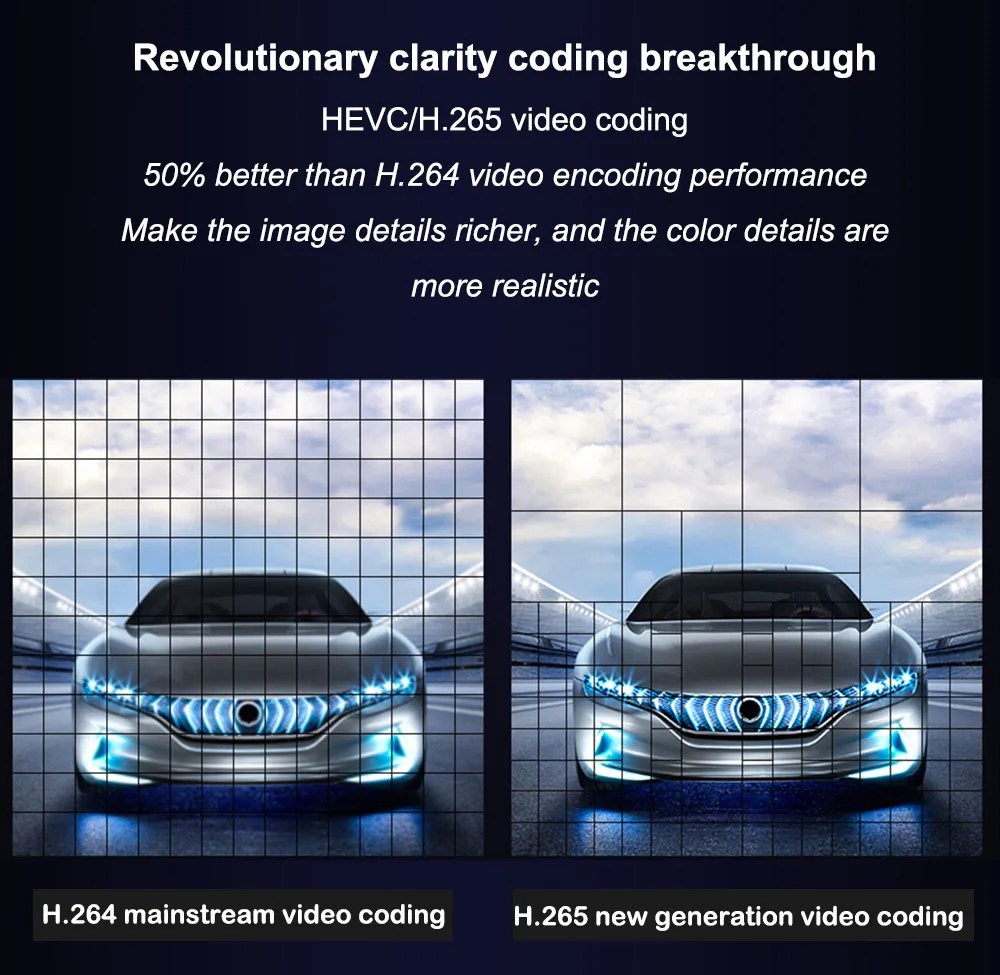

Revolutionary clarity coding breakthrough

HEVC/H.265 video coding

50% better than H.264 video encoding performance

Make the image details richer, and the color

details are more realistic.

128G·Smart Storage

Big, Regarding the overall improvement of storage,

Support 8-128GBKeep driving records longer.

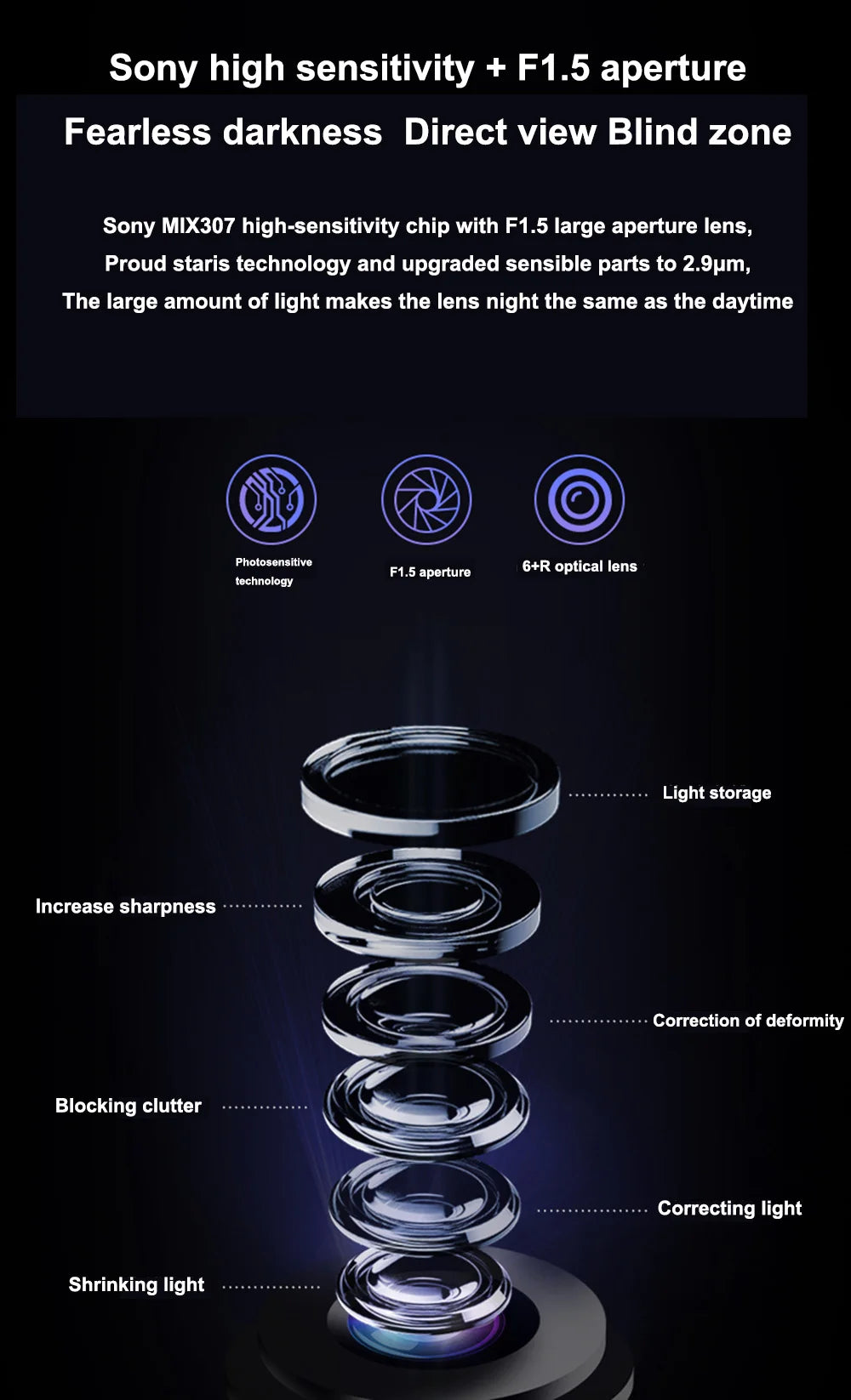

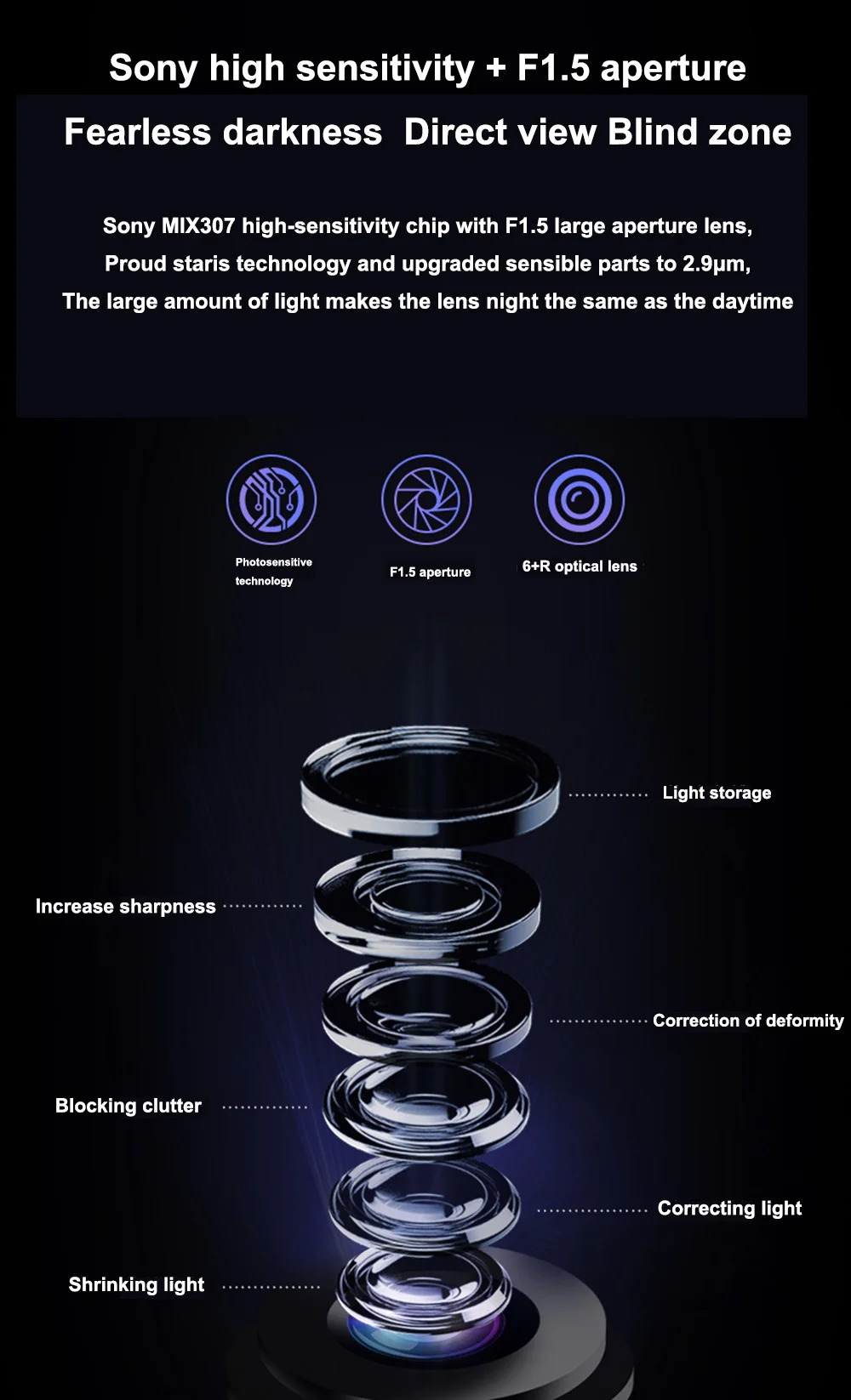

Sony high sensitivity + F1.5 aperture

Fearless darkness  Direct view Blind zone

Sony MIX307 high-sensitivity chip with F1.5 large aperture lens,

Proud staris technology and upgraded sensible parts to 2.9μm,

The large amount of light makes the lens night the same as the daytime

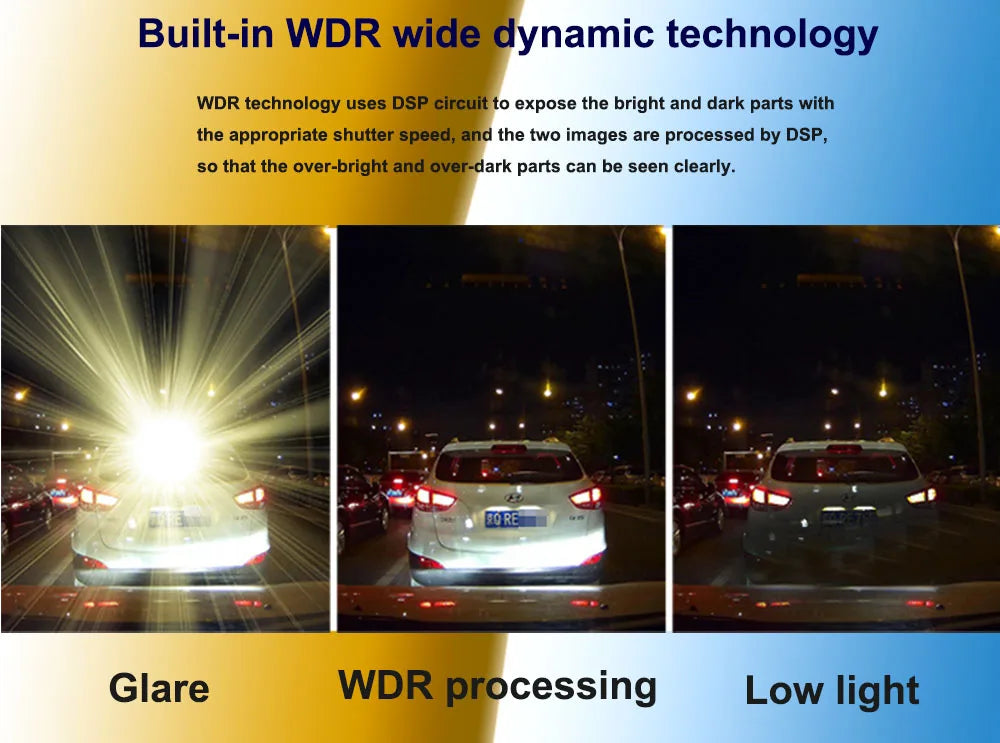

Built-in WDR wide dynamic technology

WDR technology uses DSP circuit to expose the bright and dark parts with

the appropriate shutter speed, and the two images are processed by DSP,

so that the over-bright and over-dark parts can be seen clearly.

Gravity Sensing

When a violent collision occurs, the emergency backup recording function is

automatically recognized and activated, and the important evidence locking protection

is stored in the memory card to prevent loss of coverage.

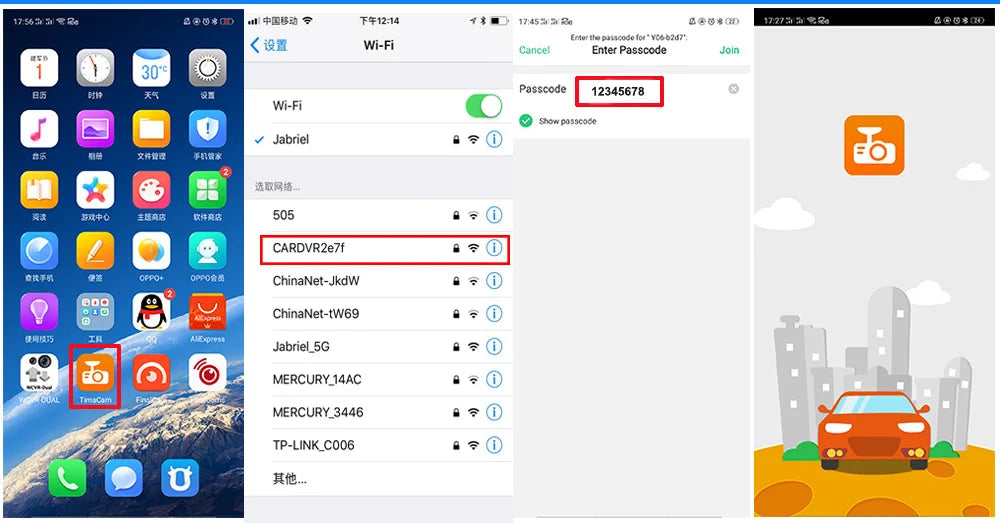

Link WIFI Control

Please download " TimaCam" app from Apple Store or Google Play Store.

The WIFI Name is CARDV**** or Y06-****

The password is "12345678" or "88888888"

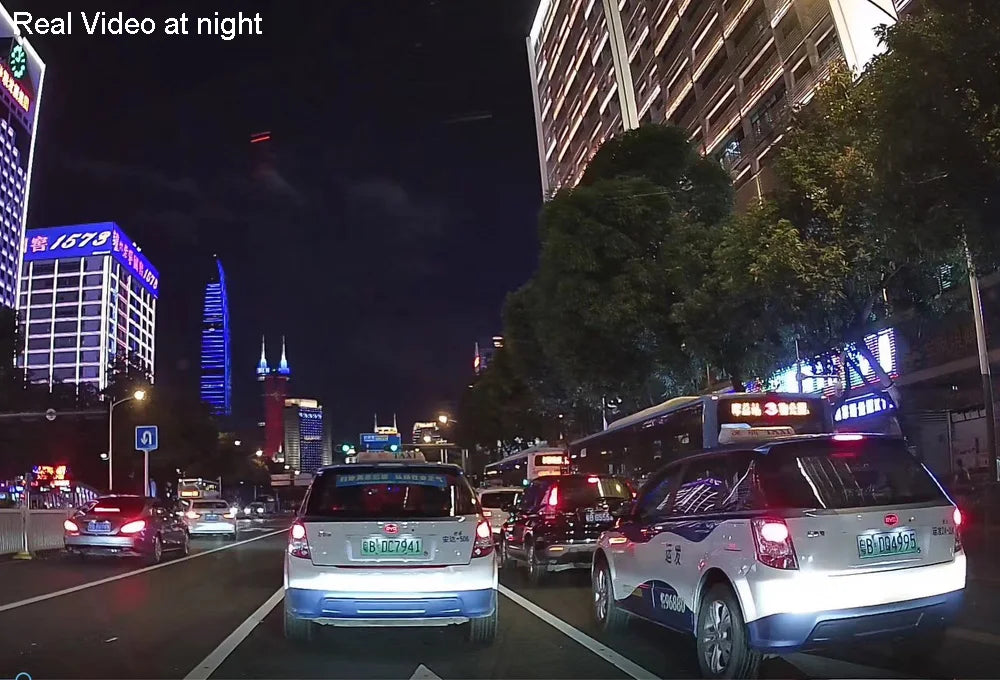

Real Video Display

The image is compressed and actually very clear

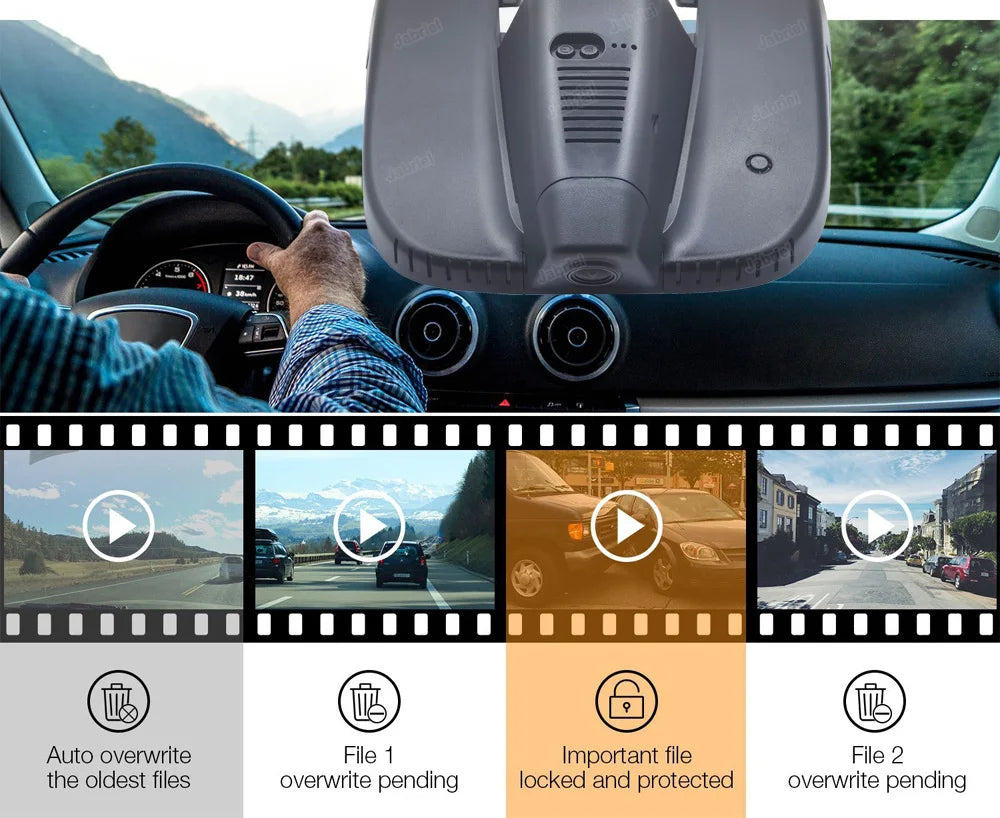

Cycle Recording without leaking seconds Video segmentation

recording, when the video is full, the recorder will automatically

delete the previously recorded video clips and record them in

a loop, so that you don't have to worry about frequent card changes.

Intelligent Anti-Shake

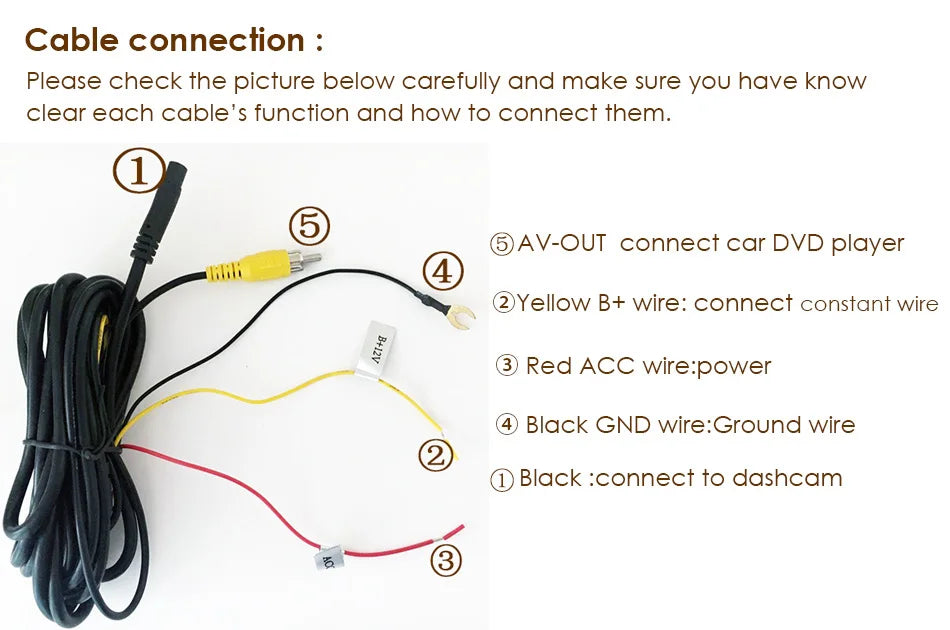

Cable Connection

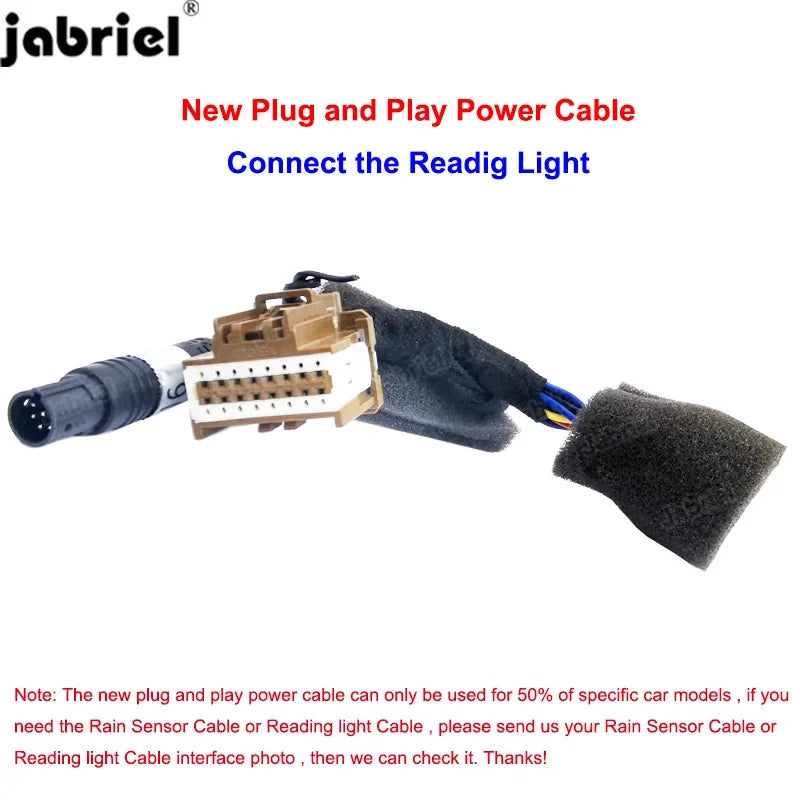

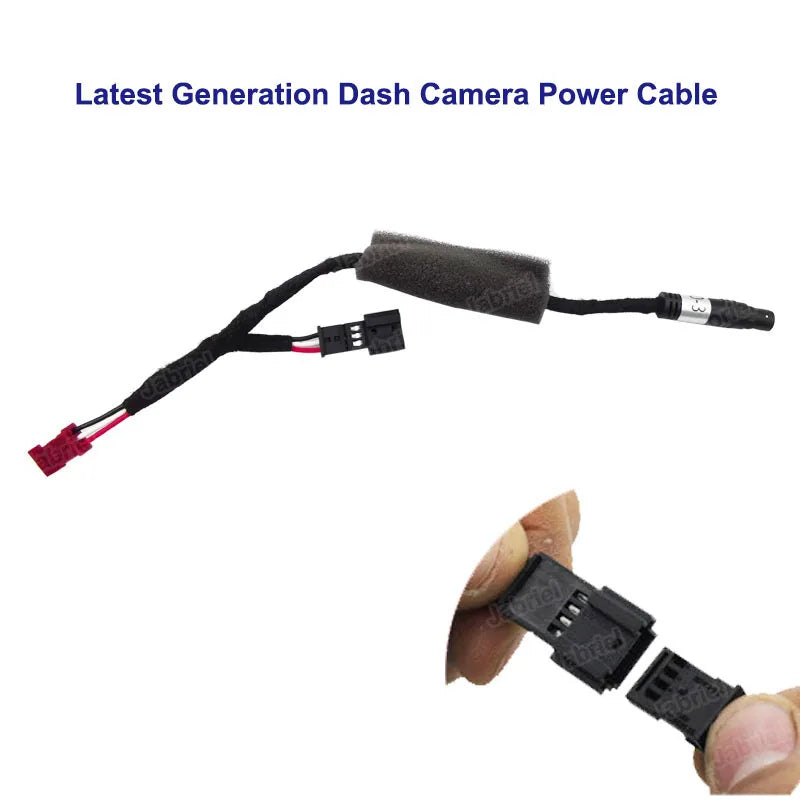

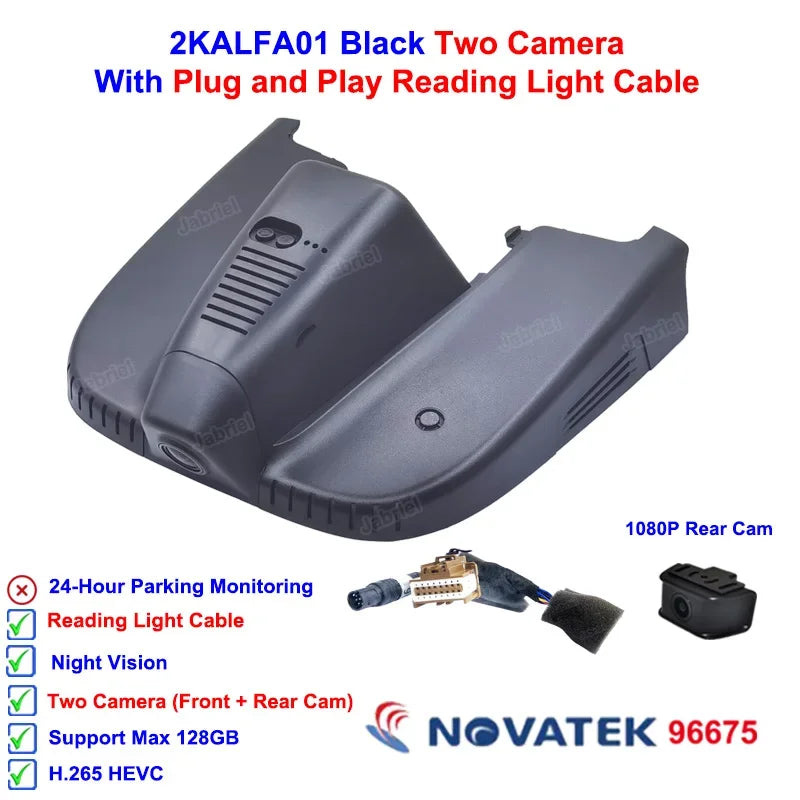

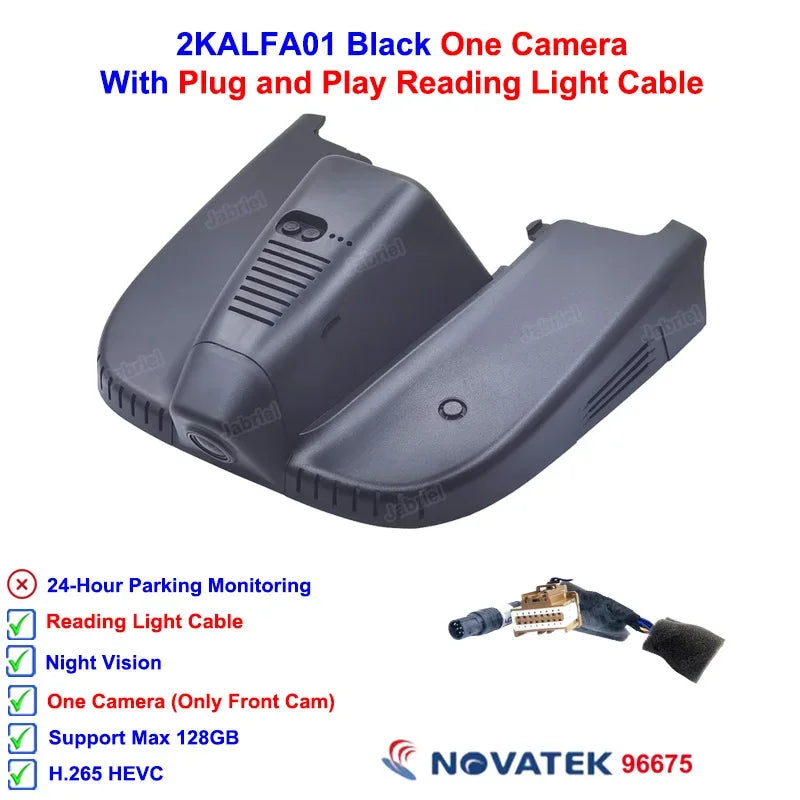

New Plug and Play Power Cable:

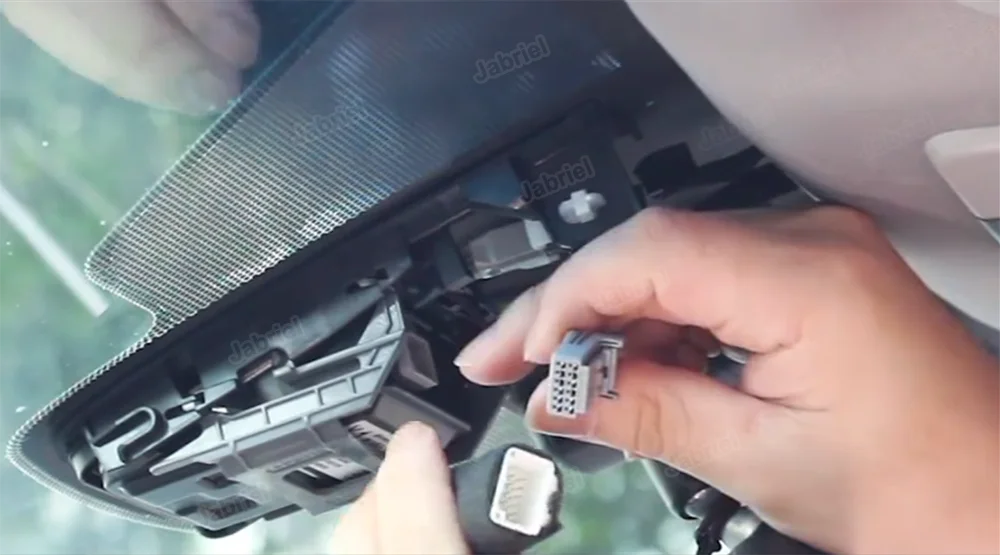

Connect to the rain sensor or reading light of the original car.

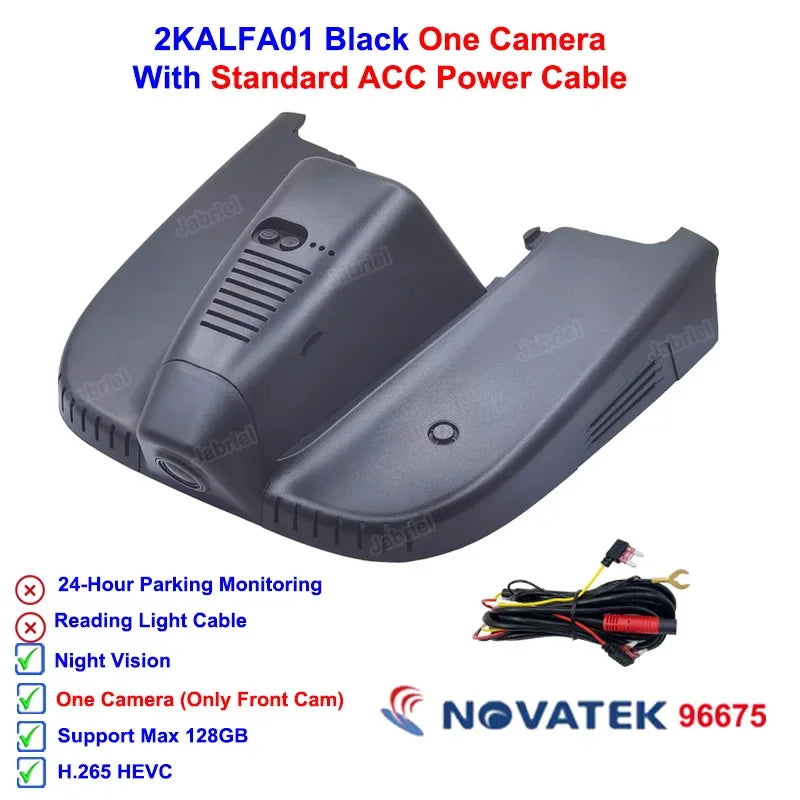

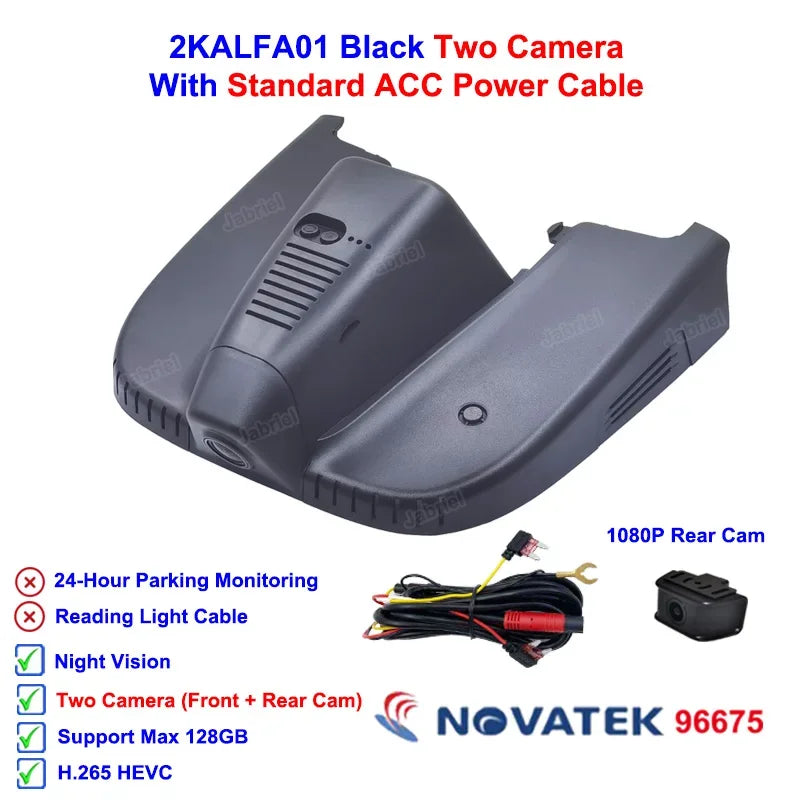

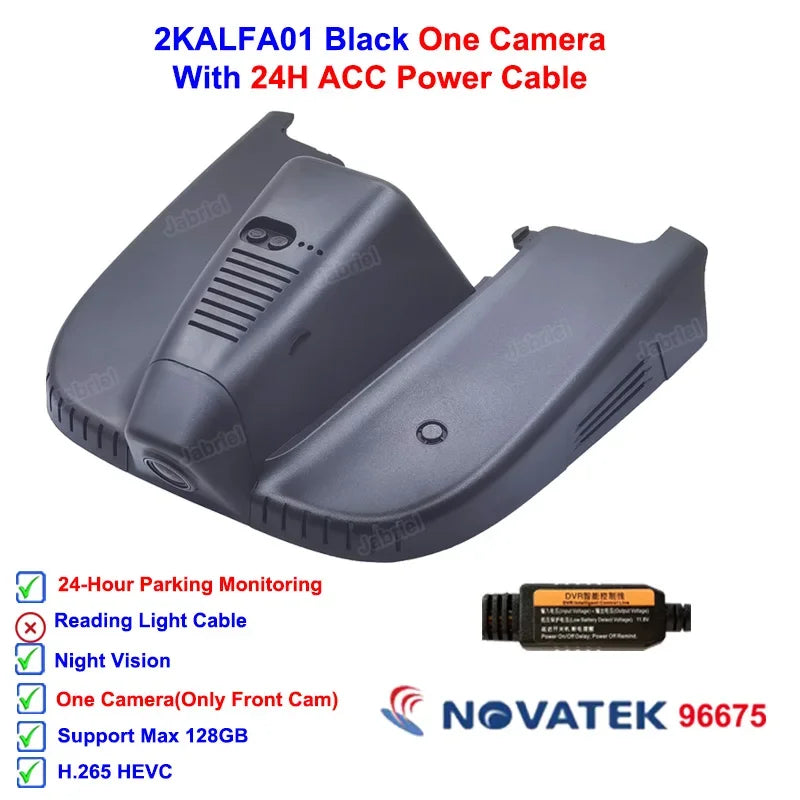

Standard ACC Power Cable:

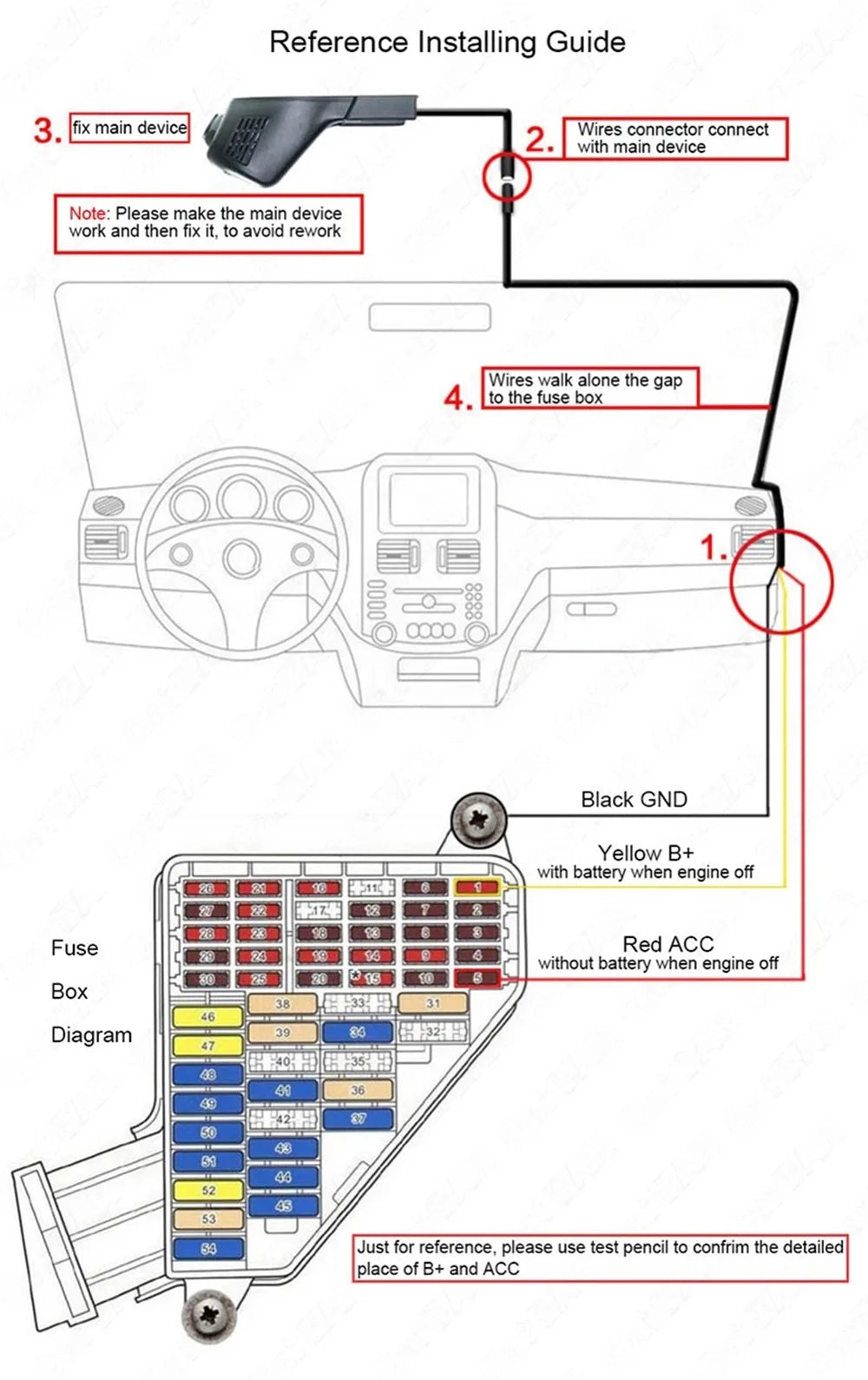

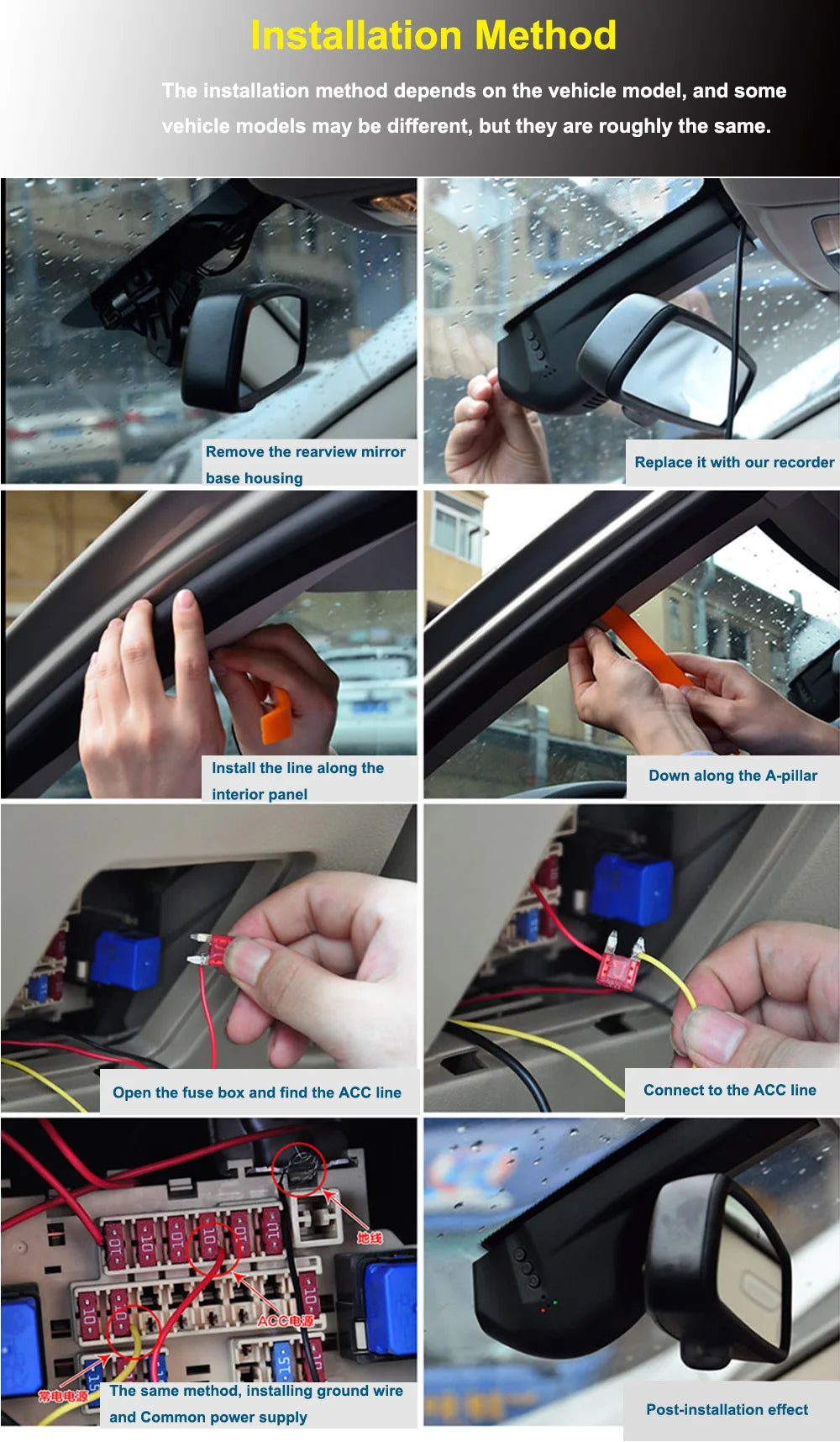

Reference Installation Guide

Notes on the installation of the dash camera:



1. Before installation

First test: the red and yellow wire harnesses of the recorder are connected to the positive electrode of the battery, the black wire harness is connected to the negative electrode of the battery, the indicator light of the recorder lights up, and the test is completed!



2. Installation

The red wire harness is connected to ACC,

the yellow wire harness is connected to constant electricity,

the black ground is connected,

the lotus head is the av output port, it connect to the android navi

You need an electric pen to measure ACC and constant electricity.

1. Turn on the engine---The indicator light of the electric pen is on, Turn off the engine---The indicator light of the electric pen is off.  it is ACC.

2. Turn on the engine---The indicator light of the electric pen is on, Turn off the engine---The indicator light of the electric pen is on. it is constant electricity.



3. After installation

The memory card needs to be formatted before use, and it must be turned off before removing the card each time (the indicator is off when the indicator is off)
