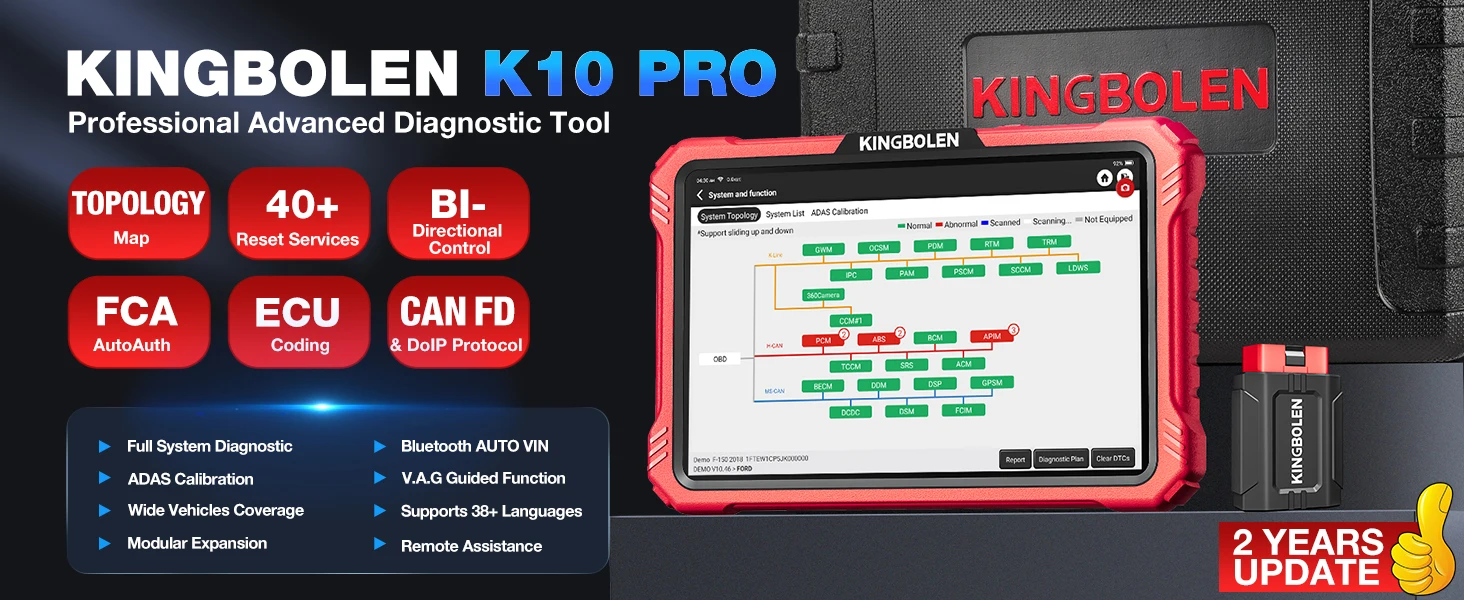

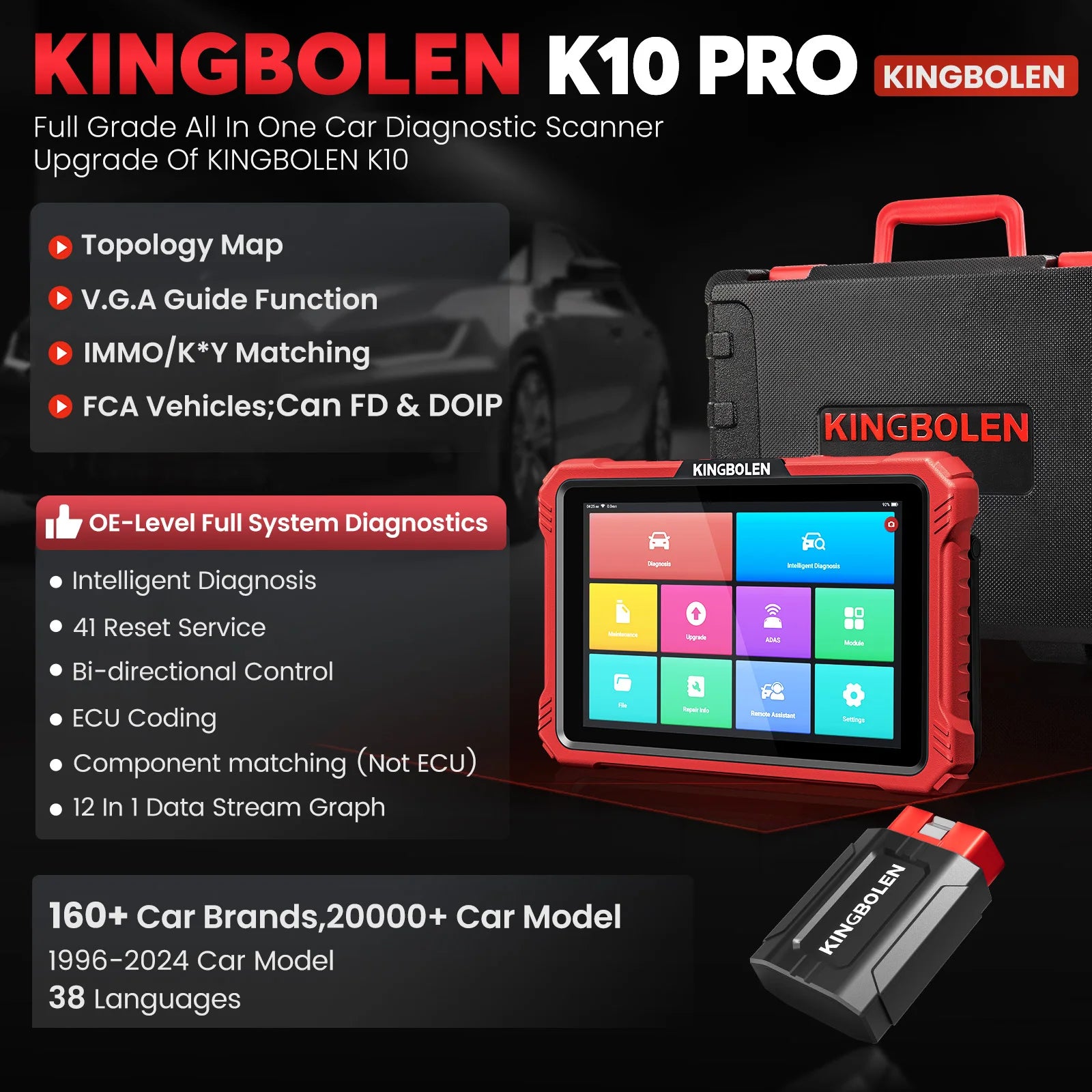

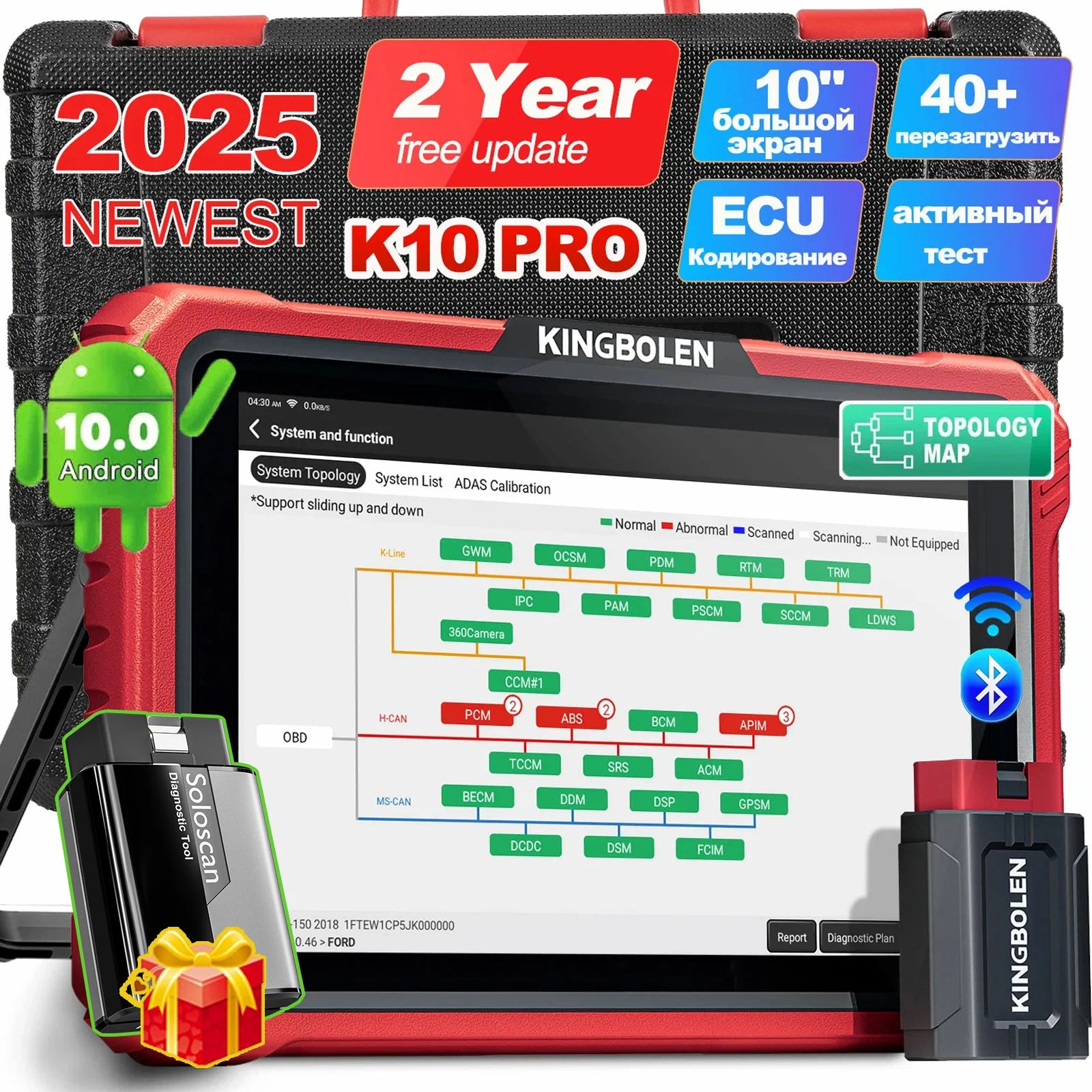

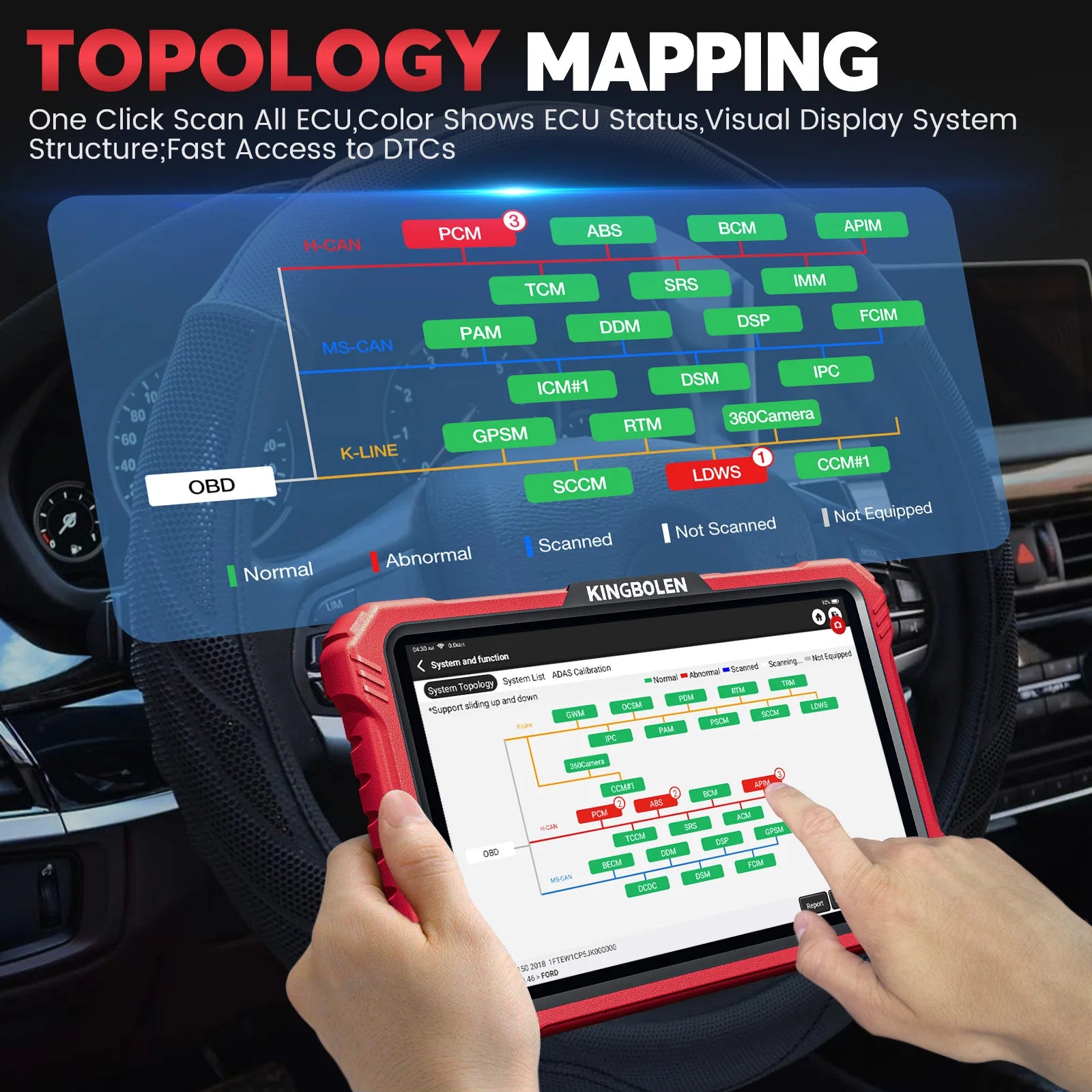

KINGBOLEN K10 Pro Full Systems 10" Car Scanner Topology Map, Bidirectional Scan Tool Bluetooth OBD2 Scanner, 41+ Reset Service, ECU Coding, FCA AutoAuth, CANFD & DOIP,2 Years Free Update, V.A.G Guided

The KINGBOLEN K10 Pro car scanner performs many advanced functions, including Full System Diagnostics, Topology Map, FCA AutoAuth, ECU Coding, Bi-Directional Control, 41+ Reset Services,and added CAN FD & DoIP Protocols ect. Equipped with a 10'' HD screen, 1280 * 800 Resolution, Android 10.0 OS, 4GB RAM+128GB ROM, 12600mAh/3.85V Battery, Rear Camera 8.0MP, and Magnetically Fixed VCI. Upgraded version of K10，more cost-effective, better choices.

1.2025 Best-Value Bi-directional Control Scanner

it have Outstanding Hardwares&Newest Functions;The KINGBOLEN K10 Pro car scanner performs many advanced functions, including Full System Diagnostics, Topology Map, FCA AutoAuth, ECU Coding, Bi-Directional Control, 41+ Reset Services,and added CAN FD & DoIP Protocols ect. Equipped with a 10'' HD screen, 1280 * 800 Resolution, Android 10.0 OS, 4GB RAM+128GB ROM, 12600mAh/3.85V Battery, Rear Camera 8.0MP, and Magnetically Fixed VCI.

2. 2025 New Design

Different from KINGBOLEN's previous styles, K10 PRO has a brand new design.We selected Luxurious red from the raw materials of various color shells.Luxurious and stylish.10.1inch big screen ,The back has a strong magnetic Bluetooth VCI design, so you don't have to worry about losing VCI.and Intimate Kickstand design, which can Free your hands and allow the tablet to sit at a comfortable any angle.

3.Wired and Wireless bluetooth 2 -in-1 Connection Ways

Wired and Wireless bluetooth 2 -in-1 Connection Ways ,KINGBOLEN K10 PRO comes with a 2025 KINGBOLEN Newest bluetooth tech-VCI Connector , it support diagnose cars via USB cable ,and support diagnose cars via wireless bluetooth too

4.Powerful Bidirectional Control(Active Tests):

No need to disassemble the car, K10 pro Bidirectional scanner can send commands to vehicle ECU for checking the integrity of systems or components‘ working status to pinpoint problematic components, such as open/close the sunroof, turn on the radiator fan and etc.

5.Advanced ECU Coding(Online & Offline)

for BMW, GM, Porsche, etc:K10 Pro scanner for car can Re-flash the Hidden Functions for personalization, Components Matching after making repairs or replacements, Reinforce Vehicle Performance, etc. NOTE: DO NOT Support ECU Reprogramming.

6. 41+ Special Functions

KINGBOLEN K10 Pro Comes with 41+ common special functions & advanced Reset, Relearn, Matching, Calibration and Adaption functions, such as: ABS Bleeding, Injector Coding, Oil Reset, EPB, Camshaft Position Sensor Relearn, Cam Crank Relearn, Calibration, Fuel Trim Reset, etc, makes for an excellent all-in-one diagnostic scanner for professional auto maintenance.

<<<2025 New Elite Version What Updates have we made in 2025 as pro UPGRADED Version of KINGBOLEN K10 Pro:

★Equipped with Bluetooth VCI, you can do car diagnostics out of the car (up to 33F/10M) without being confined to a small space inside the car.

★4GB RAM / 128 GB ROM

★Andriod 10.0 Operating System: make you smooth operation, Anti-Slip & Anti-Grease protective sleeve design

★10inch HD IPS Touch Screen: A brighter, Clearer, Larger Screen let you "Deep Dive into Diagnostics"

★OE Level Wireless Intelligent Diagnostics, covering more than 100 car makesTablet with 8.0 MP Pixel Rear Camera Brilliant

★Battery Life: 12600mAh rechargeable battery 3.7V

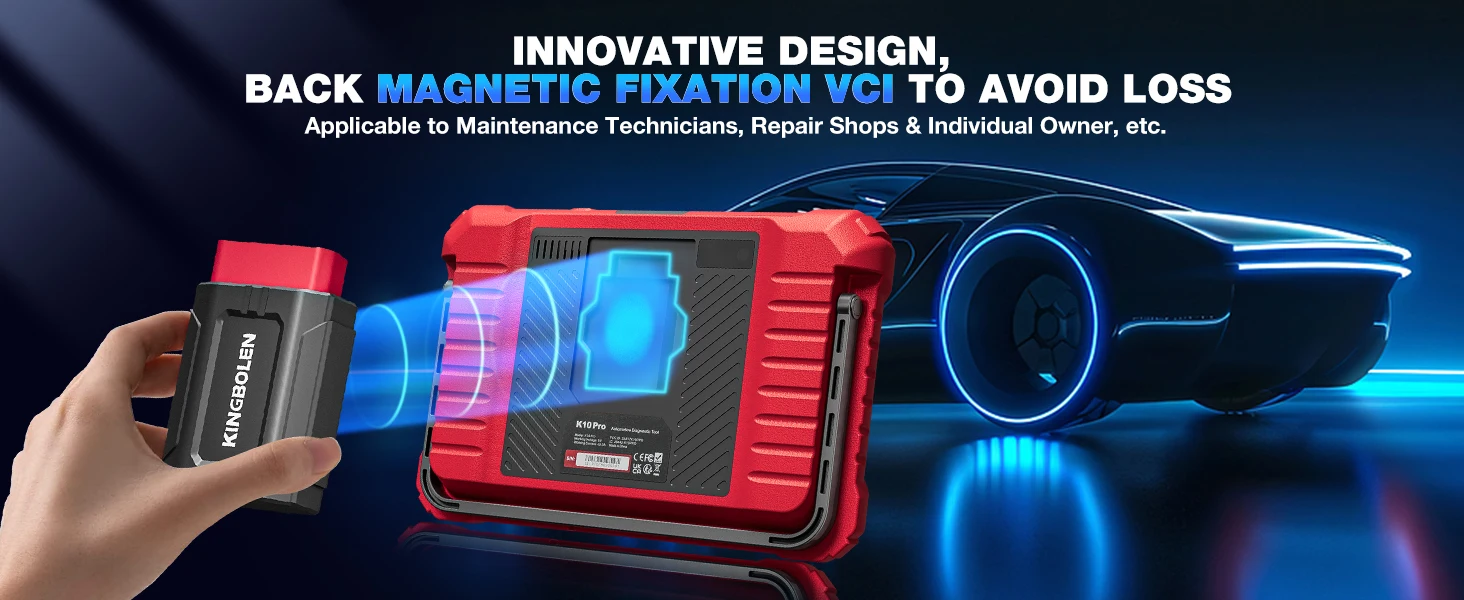

INNOVATIVE DESIGN BACK MAGNETIC FIXATION VCI TO AVOID LOSS

Applicable to Maintenance Technicians, Repair Shops & Individual Owner, etc.

Freely switch between 38 Languages：

English, Arabic, Bulgarian, Polish, Persian, Danish, German, Russian, French, Finnish
, Khmer, Korean, Dutch, Czech, Croatian, Romanian, Bengali, Burmese19, Norwegian, Portuguese, Japanese, Swedish, Serbian, Sinhala, Slovak, Slovenian, Tamil, Thai, Turkish, Urdu, Spanish, Greek, Hungarian, Italian, Hindi, Indonesian, Vietnamese, Traditional Chinese, Chinese, Nepali, Telugu

All System Diagnosis

The K10 PRO auto code reader is a cost-effective automotive scanner, that offers OE-level diagnoses on all available electronic systems, which can read/clear codes, data stream, read control module information for ECM, ABS, SRS, TCM, EPB, TPMS, SAS, A/C, BMS, ESP systems, etc.

Supports OBD2 Full Functions:It supports OBD ll functions to help you turn off the annoying instrument fault indicator and also can read/clear codes, O2 sensor test, I/M readiness, On-board monitor test, read data stream, display freeze frame data, EVAP system test, retrieve vehicle information (VIN, calibration ID, calibration verification numbers)

Supports Full System Diagnostics: Engines/Auto Transmission/Airbags/Immobilizer/Key Coding/ABS/Cruise Control/Instruments/Self Leveling Suspension systems Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System Stabilizer/Intelligent Parking Assist/Door Motors/Audio systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/DP.F Reset Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Reset / Sliding Doors / Electronic Throttle Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics ... and more.

OE-LEVEL Advanced Functions：

Component Matching: Compatible for Volkswagen / for SKODA / for Seat / for BMW / for GM / for Ford / for Opel / for Mazda /for Fiat / for Honda / for Nissan / for Hyundai / for KIA/ for Subaru etc.

Online Coding: Compatible for Volkswagen / for Audi / for Benz / for BMW / for Seat / for Porsche etc.

Online Account Login Service: Compatible for Volkswagen / for Audi / for SKODA / for Seat etc.

Online Calibration: Compatible for Volkswagen / for Audi / for SKODA / for Seat etc.

Online Parameterization: Compatible for Volkswagen /for Audi / for SKODA / for Seat etc.

Anti-theft IMMO Service: Compatible for Volkswagen /for Audi / for SKODA / for Seat etc.

Guided Functions: Compatible for Volkswagen / for Audi / for SKODA / for Seat etc.

Power Balance: Compatible for Chrysler / for GM /for Ford etc.

Coding Module Installation: Compatible for Ford / for Mazda etc.

Flash Hidden Functions: Compatible for BMW / for Porsche /for Toyota / for Subaru etc.

SCN Coding for Benz

ECU Coding:

The advanced coding function is used to re-flash the vehicle control modules, which allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing solutions for the issues of drivability, fuel efficiency, power loss, fault codes, durability of mechanical parts etc. But please note, ecu coding are NOT universal for all vehicles, please check compatibility with VIN number before purchase.

Active Test &Bi-directional control

Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators .For example , K10 have the ability to actuate relays, injectors, coils, or perform system tests, etc. Also it will actuate solenoids valve and actuators for active testing to identify the error easily moreover. The bidirectional functions are quite extensive. even open an e.g.r. valve and seeing the difference in idle response and oxygen sensor voltage. Please note: Active tests are NOT universal for all vehicles, check compatibility with VIN number before purchase. Active tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu.

41+ Reset Functions

1. TPMS Reset -- When replacing TPMS sensors or the signal from the sensor is lost it can quickly look up the tire sensor from the vehicle’s ECU, reset tire pressure and turn off the tire pressure MIL.

2. ABS Bleeding -- When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.

3. Oil Reset -- Allows you to perform reset for a new calculation of the Engine Oil Life system once changed the oil.

4. Electronic Throttle Adaption -- Utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.

5. Brake Reset -- To deactivating and activate the brake control systems, assist with brake fluid control, open and close brake pads, and set brakes after disc or pad replacement.

6. SAS Reset -- It helps clear the faulty steering angle sensor memories to reset the steering angle and plays an important role in the steering angle sensor calibration.

7. Battery Matching -- Enables you to perform resetting operation on the monitoring unit of battery,in which the original low battery fault information will be cleared.

8. IMMO Service -- To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.

9. Injector Coding -- After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.

10. Suspension Matching -- When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, this function can adjust the body height sensor for level calibration.

11. AFS Reset -- It is used to initialize the adaptive headlamp system.

12. Gearbox Matching: This function can complete the gearbox self learning to improve gear shifting quality

13. Sunroof Initialization -- This function can set the sunroof lock off, closed when it rains, sliding/tilting sunroof memory function, temperature threshold outside the car etc...

(Enter from the all-system diagnostic menu to unlock more system special functions, and effectively handle the reset and relearn of most cars. )

Note: Not universal for all vehicles. Available maintenance functions vary depending on the make, year, and model.

Support CANFD & DOIP protocols

CANFD :
it is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

Supports For Chevrolet Onix 2020-2021 year
Supports For Chevrolet Tracker 2020 year
Supports For Chevrolet Suburban 2021 year
Supports For Chevrolet Tahoe 2021 year
Supports For Buick
Supports For Cadillac Escalade 2021 year
Supports For Cadillac Escalade 2021 year
Supports For GMC Yukon 2021 year
Supports For GMC Yukon XL 2021 year
Supports For Holden
Supports For DAEWOO
Supports For Alpheon
Supports For Ravon
Supports For Pontiac
Supports For Saturn
Supports For Hummer

DOIP
With Diagnostics over DoIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes LAUNCH CRP909X save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with BMW (F&G chassis), Volvo models (2018 later), Land Rover & Jaguar models (2017 later).

( Note : this is car list that CANFD and DIOP supports , CRP919E also supports other cars , more than about 100+ brands , like for bmw , for vw , for ford etc , there has the detailed car list in the following description , you can check ）

FCA Security Gateway Access

AutoAuth for FCA SGW which makes K8 Elite works for Chrysler, for Dodge,for Jeep, for Alfa Romeo and for Fiat after 2017. Register with AutoAuth to enable KINGBOLEN K8 tablet to communicate with the FCA SGW Authentication System and bypass the SGM, so as to perform diagnostics and Bi-Directionals without using a bypass cable. (*Only provide AutoAuth login portal, and need purchase the registration number on the AutoAuth website by yourself.)

One-Click WiFi Update

KINGBOLEN K10 pro code scanner comes with a 2-year update. One-Touch update via WiFi to enjoy more functions, get wider available vehicle coverage, add more languages, and improve the performance.

Bluetooth AUTO VIN

KINGBOLEN K10 pro obd2 scanner supports intelligent diagnosis and adopts powerful intelligent VIN recognition technology, enabling technicians to quickly identify vehicle information, such as brand, year, brand, model, etc., which is convenient, fast and efficient. After diagnosis, a Health Report can be generated to intuitively grasp the vehicle status.

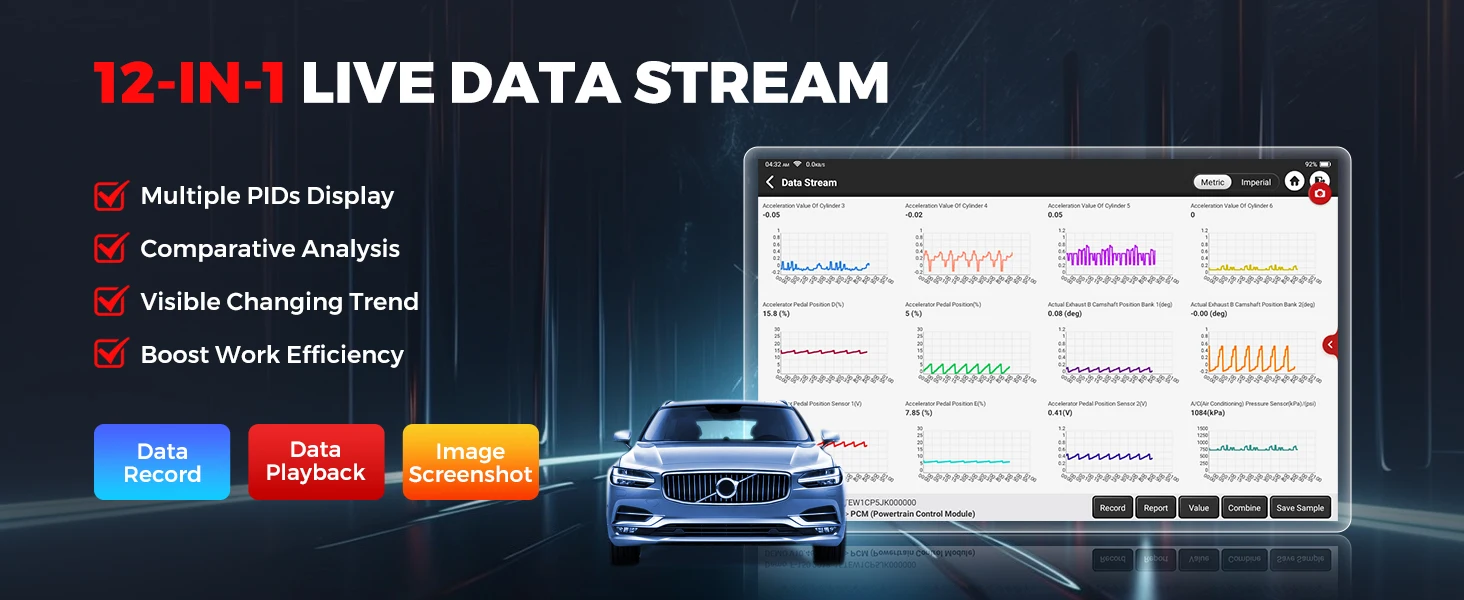

12-in-1 Live Data Stream

Display real-time data and parameters from vehicle ECU. Select the necessary items (up to 12 items can be selected at the same time), the screen will immediately display the waveform corresponding to these items, and different items will be marked with different colors. And has the Screen Recorded Function, which can record during the use of the KINGBOLEN K10 to record the diagnosis results at any time.

Efficient Remote Assistance

Our technical team can realize remote control through Team-Viewer to provide instant support, help you solve the corresponding problems, improve the efficiency of problem solving, and save your time.

2 Years Free Update Online

Diagnostic software, client-side and firmware can be updated online.

Car Brands Coverage

10 supports all electronic control systems on 12V EFI models, incl. more than 150 European, American and Asian models like Maserati, Ferrari, Rolls Royce, Bentley, Mercedes-Benz, BMW, Audi.Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. It achieves full car model and full system vehicle trouble diagnosis

American cars:
For BUICK, For CADILLAC, For CHEVROLET, For CHRYSLER, For DODGE, For FIAT(BRAZIL), For FORD, For FORD(AUSTRALIA), For GM
For JEEP, For LINCOLI, For GM（BRAZIL）,For TESLA

European car:
For ABARTH, For ALFA ROMEO, For AUDI, For BENTLEY, For BMW, For BUGATTI,For CITROEN , For DACIA, For DR, For EUROFORD, For FERRARI, For FIAT, For GAZ, For OPEL(SOUTHAFRICA), For IVECO, For JAGUAR, For LAMBORGHINI, For LANCIA, For LANDROVE, For MASERATI, For MAYBACH, For MERCEDES, For MINI, For OPEL, For PEUGEOT, For PORSCHE, For RENAULT, For ROLLSROYCE, For ROVER, For SAAB, For SEAT, For SKODA, For SMART, For SPRINTER, For VAUXHALL, For VAZ, For VOLVO, For VW, For BORGWARD, For ASTON MARTINA,

Asian cars：
For ACURA, For DAEWOO, For DAIHATSU, For HM, For HOLDEN(AUSTRALIA), For HONDA, For HYUNDAI, For IKCO, For INFINITI, For ISUZU, For KIA, For LEXUS, For LUXGEN, For MAHINDRA, For MAHINDRA(INDIAN), For MARUTI, For MARUTI(INDIAN), For MAZDA, For MITSUBISHI, For MVM, For NISSAN, For GTR(NISSAN, For PERODUA, For PERODUA(MALAYSIA,
For PROTON, For PROTON(MALAYSIA, For SAMSUNG, For SAIPA,
For SSANGYONG, For SUBARU, For SUZUKI, For TATA, For TATA(INDIAN, For TLISUZU, For TOYOTA, For UNITED PAKISTAN,
For VINFAST

Chinese car：
For BRILLIANC, For BYD, For CHANGAN, CHANGAN-FORD, , For CHANGHE, For CHBUICK, For CHCADILLAC, For CHCHEVRO-KET, For CHERY, For CHSUZUKI, For DFCIROEN, For HONDA(DF), For DFNISSAN, For DFEUGEOT, For ECUAID, For FAW(TIANJIN, For FOTON, For GOLDEN(XIAMEN, For GONOW, For MITSUBISHI(GAC, For GREAT WALL, For HONDA(GAC, For HAFEI, For HAIMA, For HCBMW, For JAC, For JIANGHUAI, For JMC, For JOYLONG, For LIFAN,
For LYNKCO, For MG(SAIC, For NJFIAT, For QOROS, For MAXUS,
For SGM, For TOYOTA(CHINA, For VENUCIA, For WULING, For XINKAI,
For YQMAZDA, For ZHONGGSHUN, For ZHONGXING, For ZOTYE, For SOUEAST, For ROEWE(SAIC), For JIQING(FAW), For HUANGHAI, For LANDWIND, For EXEEDTY, For NISSAN(ZHENGZHOU), For DFPV,
For JETOR, For DFFX, For CHERY EV

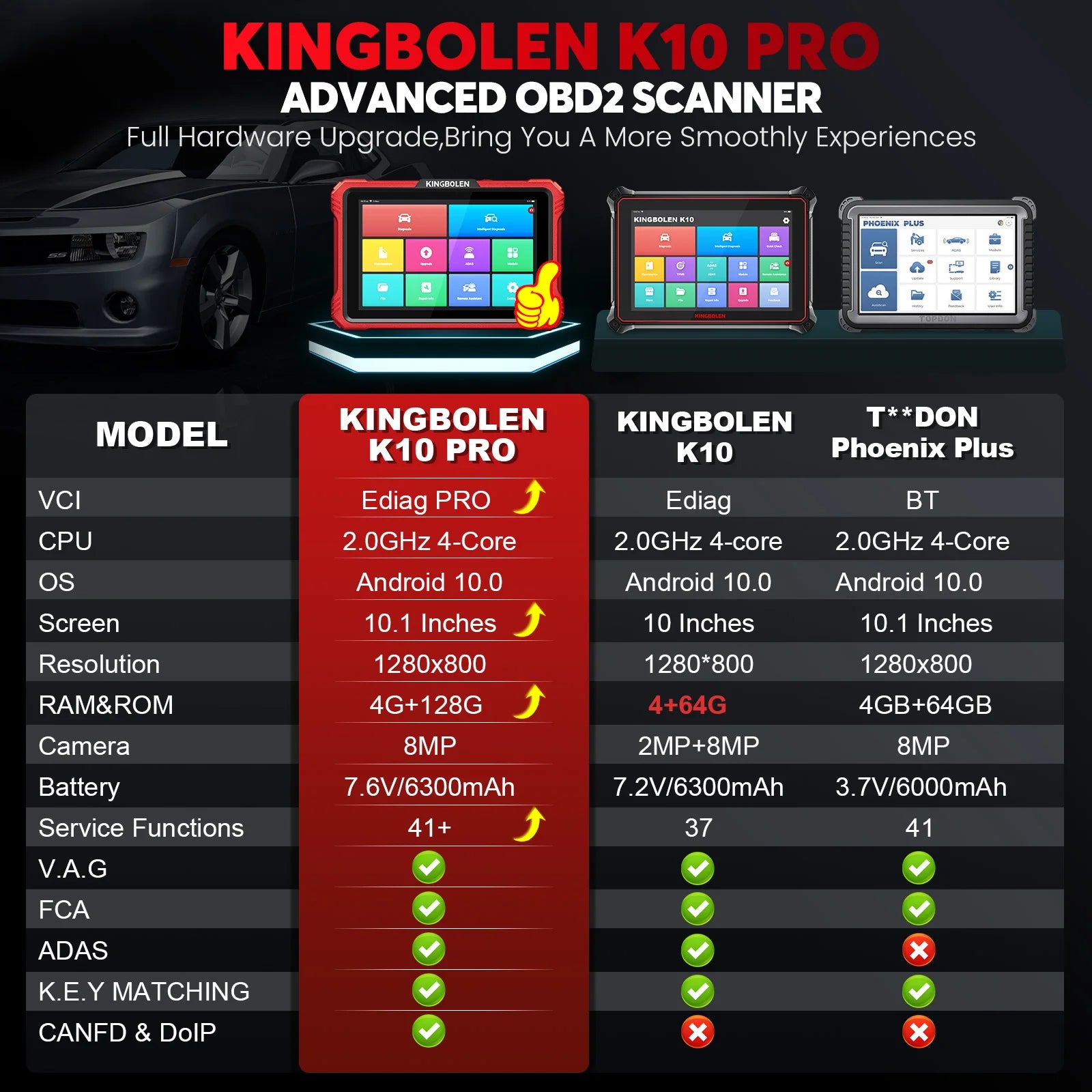

Tablet parameter:

* Operating System: Android 10.0
* Memory: 4GB
* Storage: 128GB
* Battery: 12600mAh\3.7V
* Screen: 10 inches
* Camera: Front Camera 8.0MP, Rear Camera 8.0MP
* Network: Wi-Fi, WLAN 802.11b/g/n
* Bluetooth: Bluetooth 5.1
* Working Temperature: 32 °F -122 °F (0°C - 50°C)
* Storage Temperature: 4°F~140oF(-20oC~60°C)

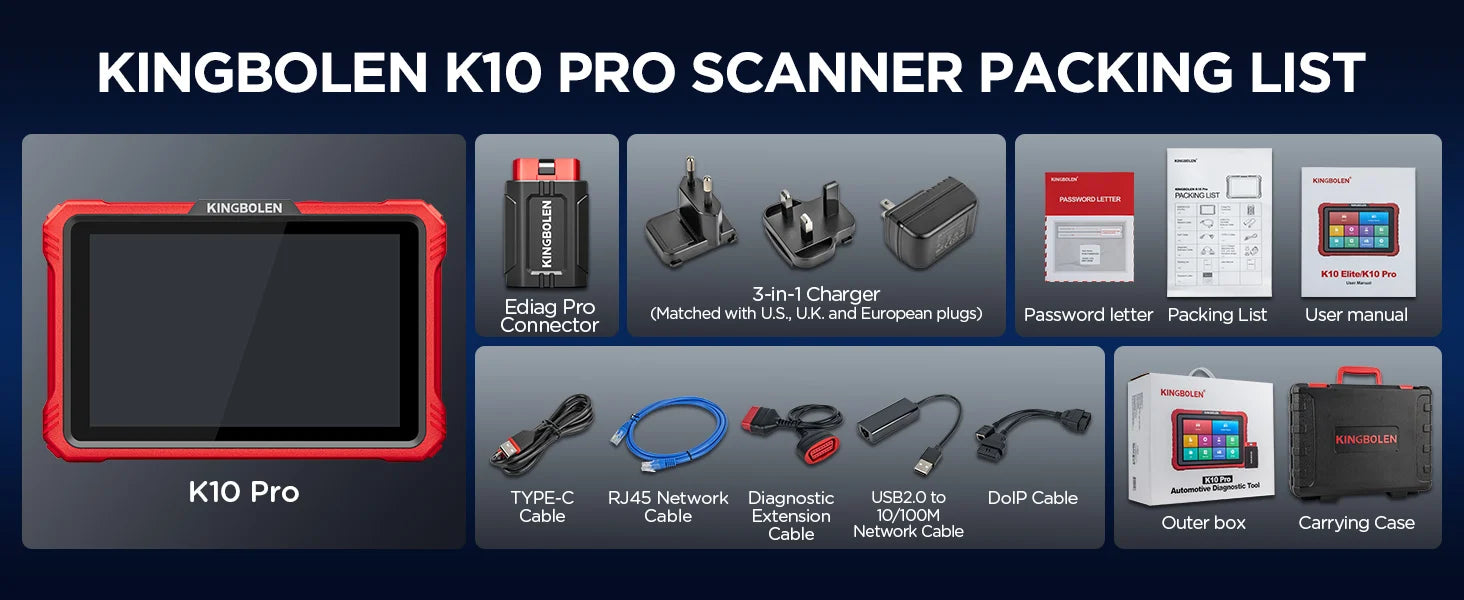

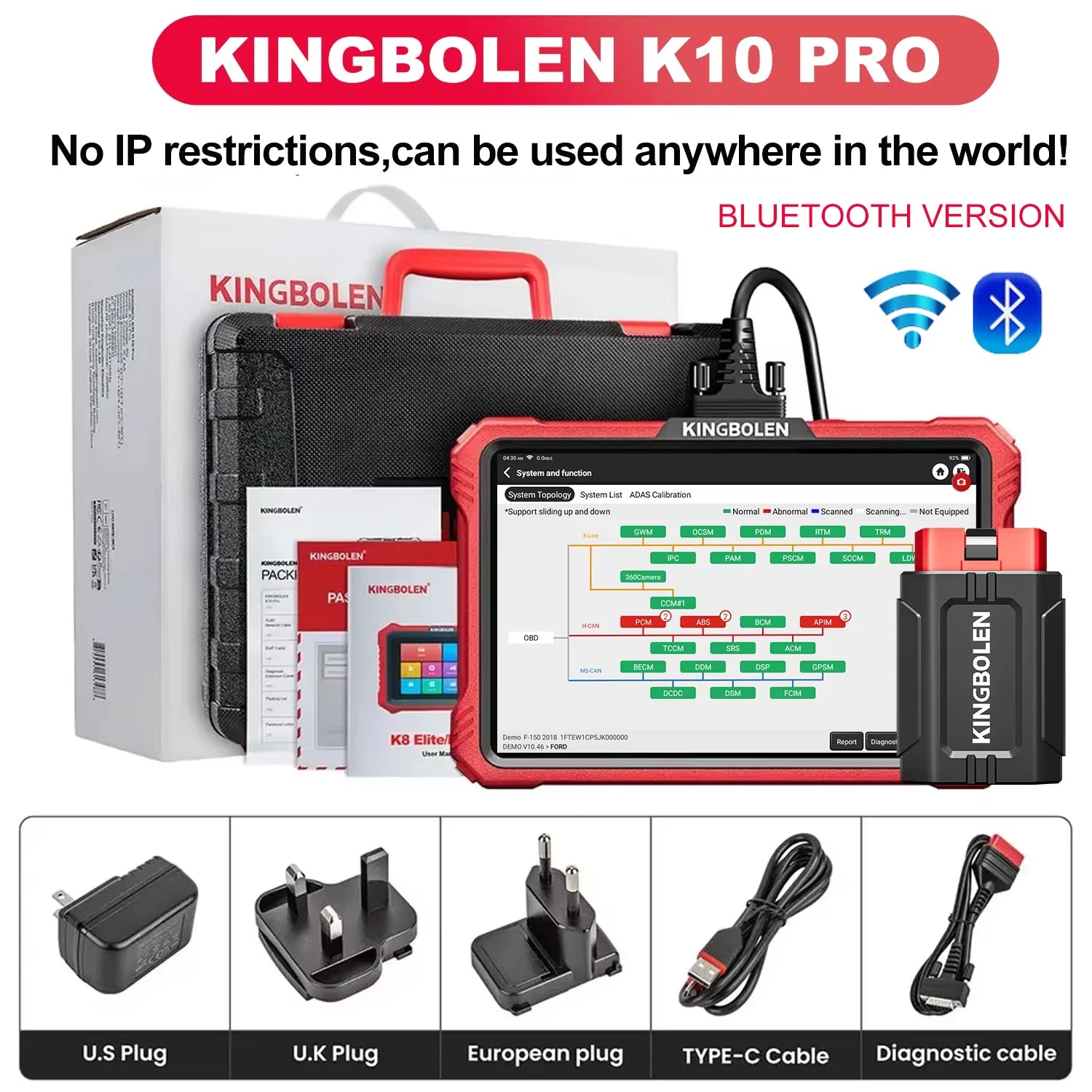

K10 PRO Packing List :

1Pc * KINGBOLEN K10 pro Tablet
1Pc * Ediag pro conntor
1PC * DOIP cable
1PC * RJ45 Network Cable
1PC * USB2.0 to10/100M Network Cable
1PC * type c cable
1PC * Diagnostic Extension Cable
1PC * 3-in-1 Charger(Matched withU.S.. U.K. and European plugs)
1PC * User Manual
1PC * Packing List
1PC * Password Letter
