SPECIFICATIONS

Brand Name: OBDSTAR

Certification: CE

Hign-concerned Chemical: None

Number: HKSP539

Origin: Mainland China

Attention:

Gift:

A1 Version: Key Sim Kit

A2 Version: Motorcycle IMMO Accessories (M034, M037, M040, M041, M042, M043, M053, M054)

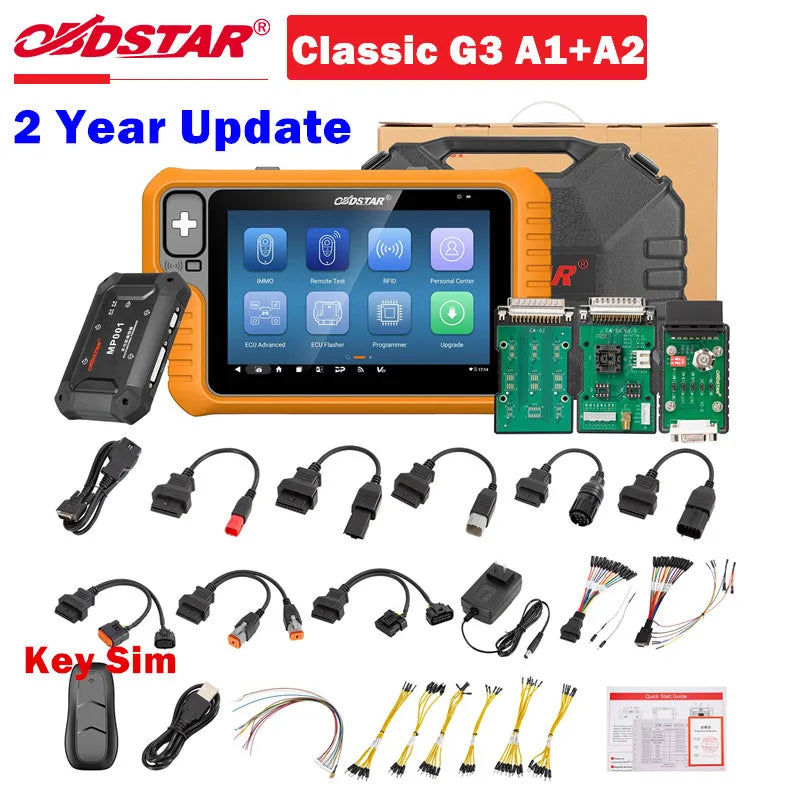

But now if you take this one from our store, we send you both gifts: A1+A2 as follow:

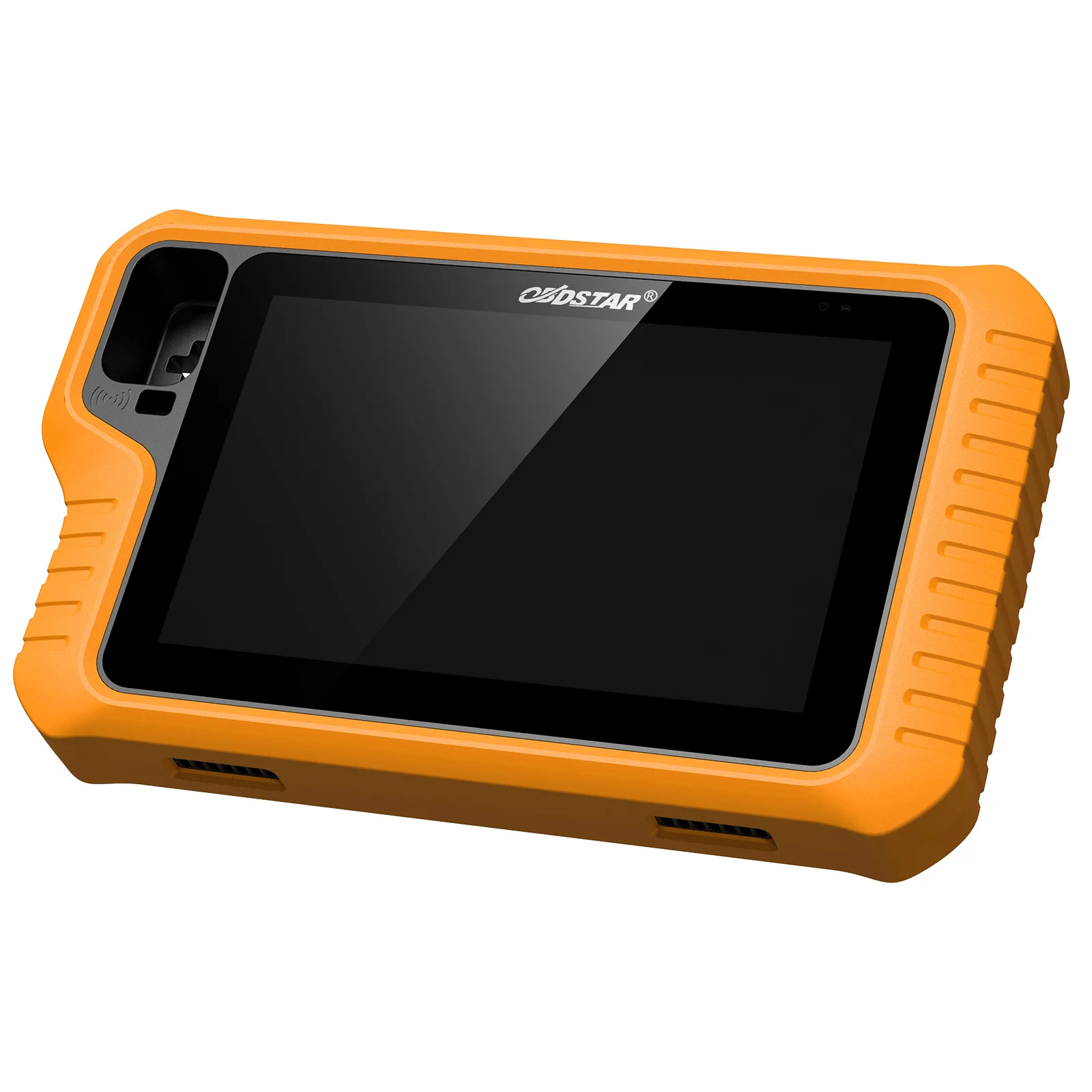

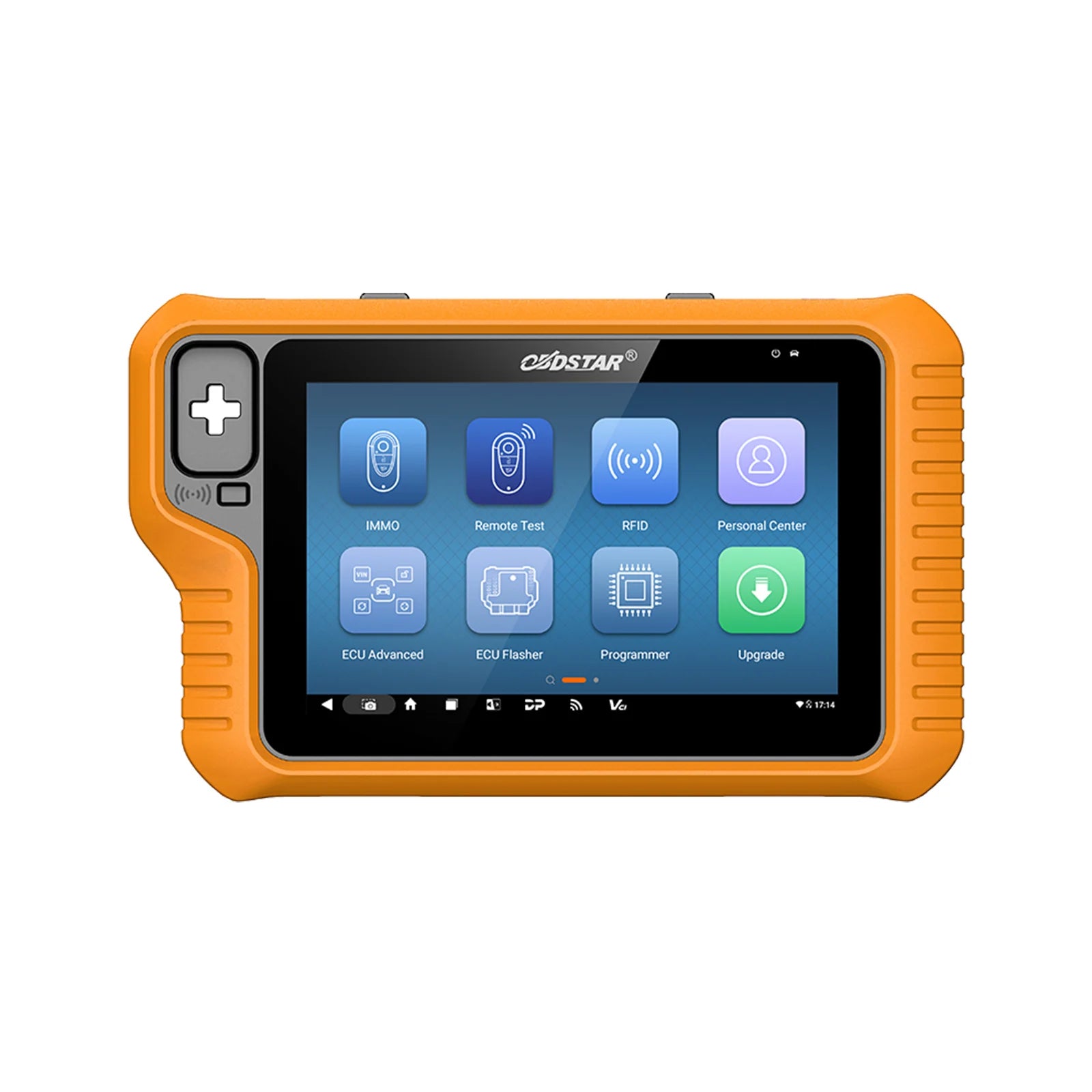

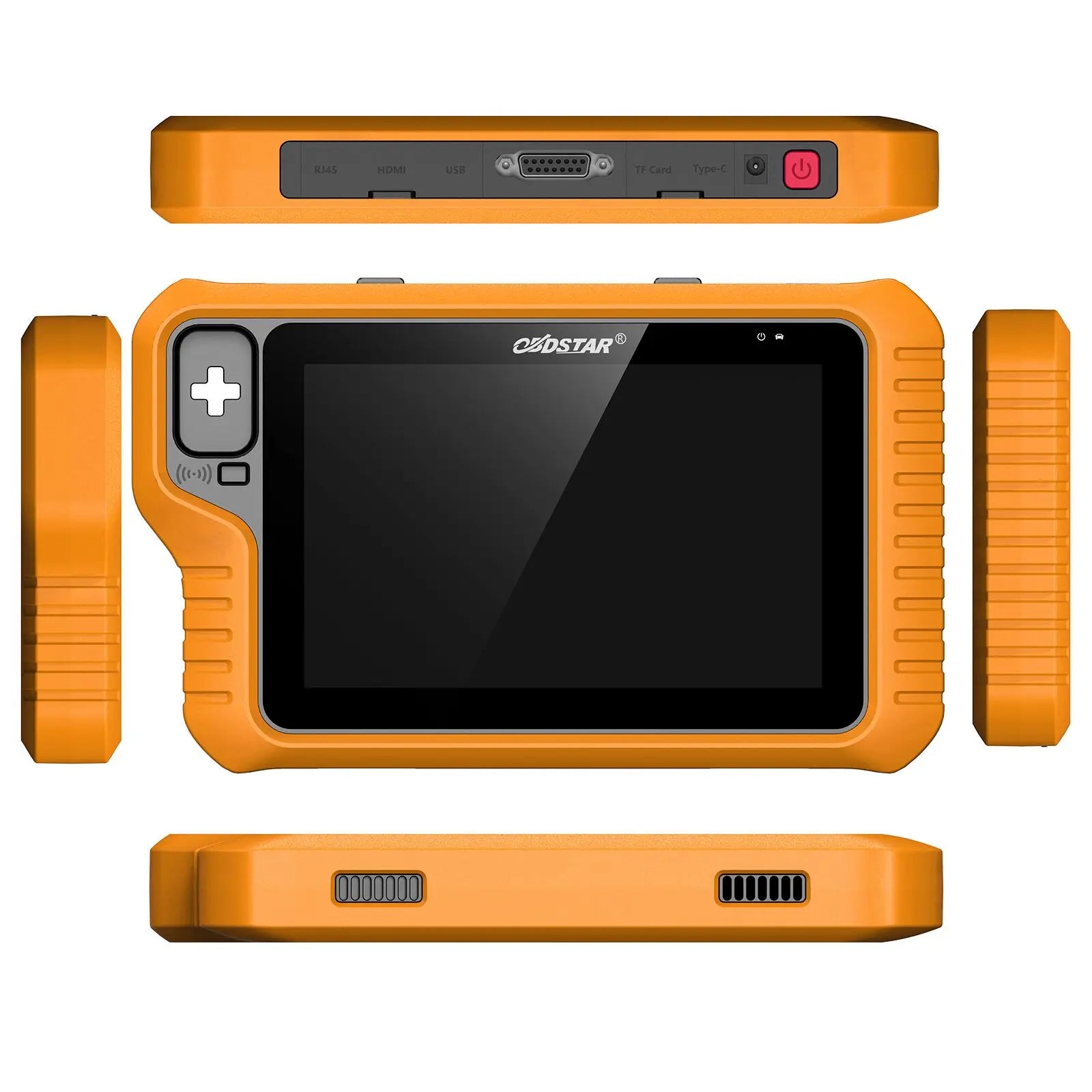

OBDSTAR X300 Classic G3 (KEY MASTER G3) Key Programmer with MP001 and P004

OBDSTAR X300 Classic G3 is the new generation intelligent scanner of OBDSTAR, which fully inherits the many advantages of OBDSTAR in automobile/commercial vehicle technology, such as wide coverage of car models and various functions, and comprehensively increases the programming functions of E-car, motorcycle, marine (jet-ski), etc. A good helper for automotive locksmith master.

The G3 expands on the features and functionality of the OBDstar X300 DP Plus key programming series and will have the ability to add the functionality of the OBDstar Odomaster mileage correction, P50 airbag reset, MT series test platform and DC706 ECU ECM TCM BCM BSI cloning tool.

Highlights:

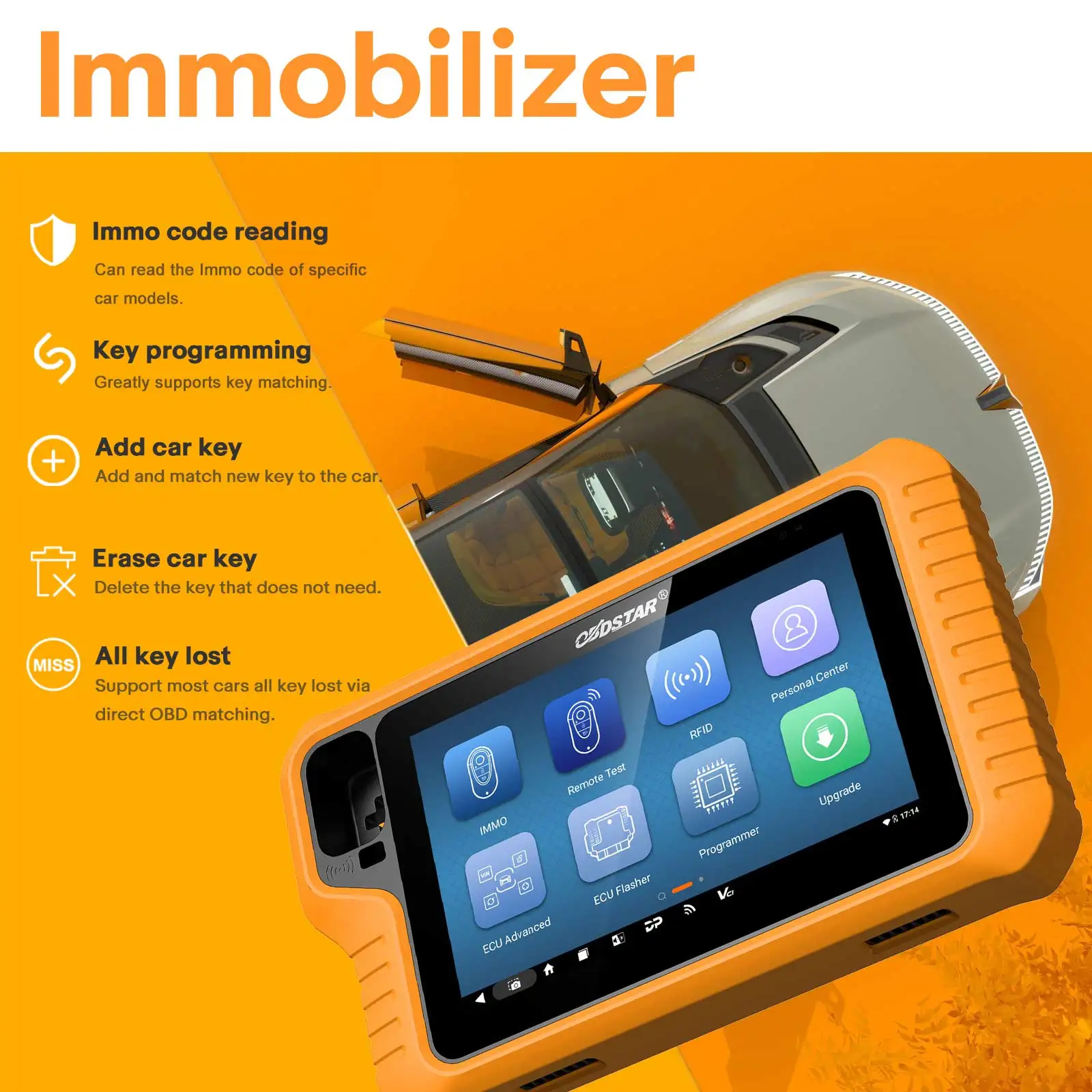

1. Support Programming IMMO(Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.
2. Supported vehicles: for Car, HD, E-Car, MOTO, Jet Ski
3 Two Years Free Update Online, Update Version of X300 DP Plus
4. Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID
5. With MP001 (replace P003/P003+ Adapter), P004 Adapter and Renault Adapter in Default Package

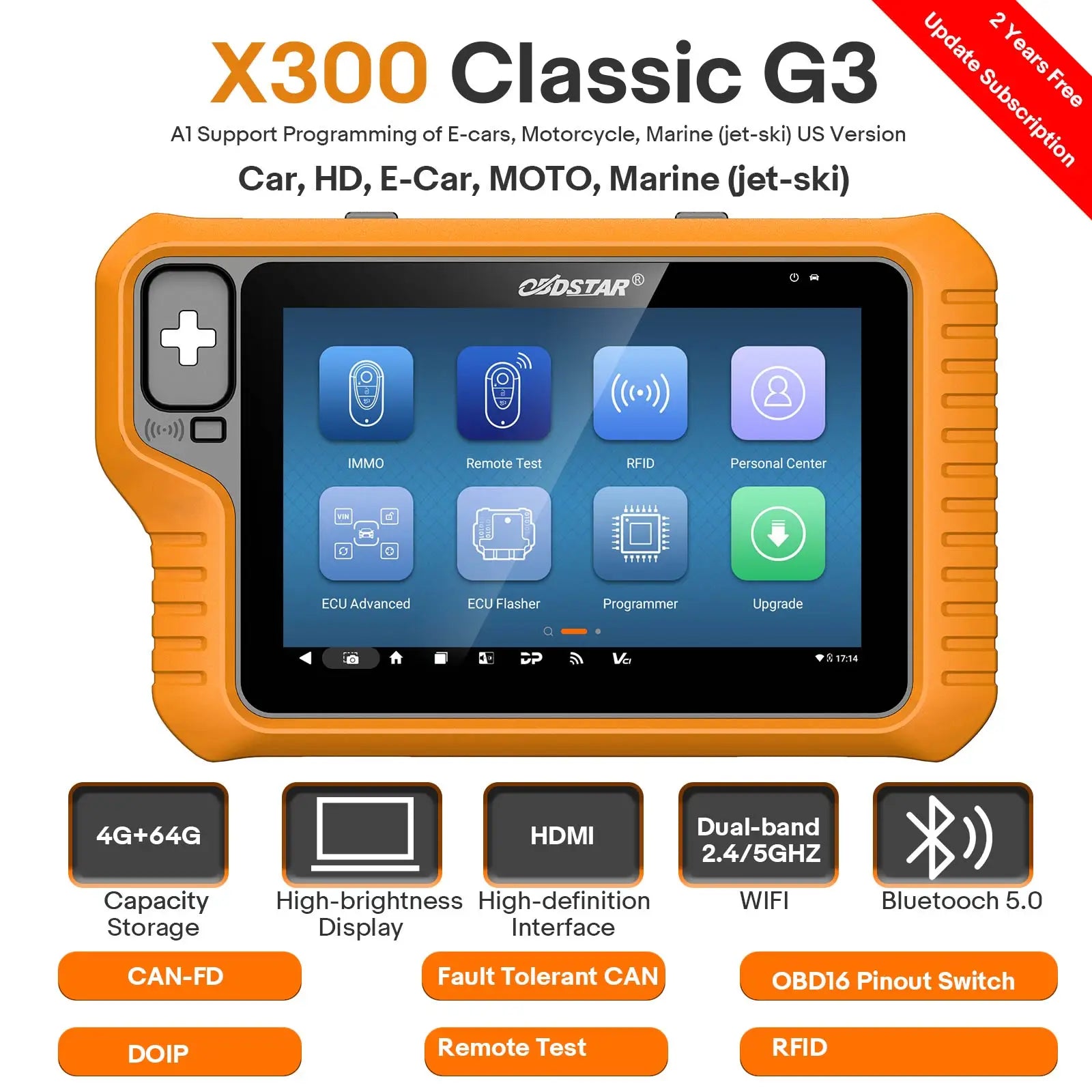

6. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.
7. Paid Software Service for Cluster Calibration, ECU Cloning, Airbag Reset, Test Platform and the other functions are available. Turn your G3 to a powerful all in one tool. With ECU Cloning license, G3 will work as same as DC706.
8. Get Both Key SIM Emulator and Motorcycle Adapter Set (M034, M037, M040, M041, M042, M043, M053, M054) for Free.

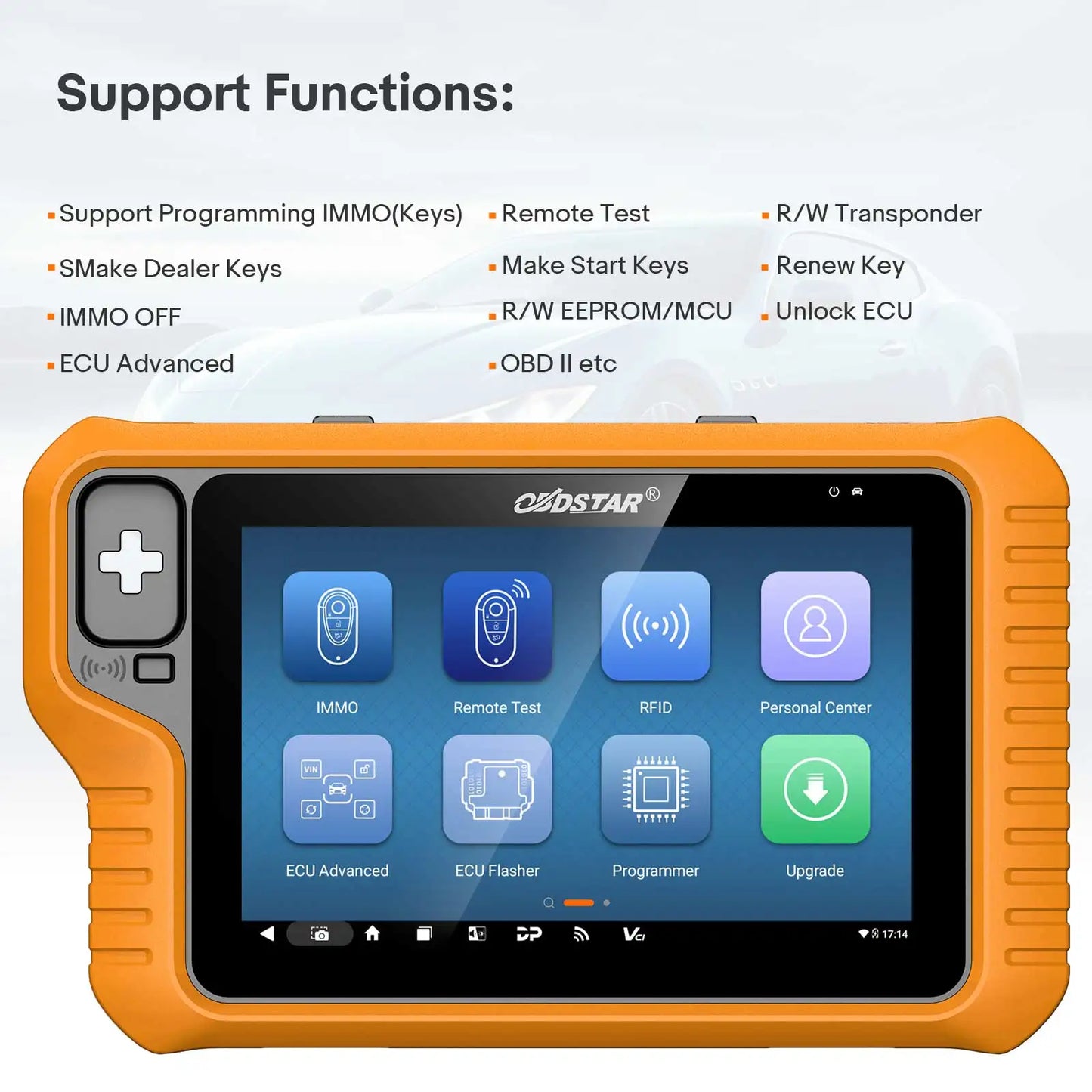

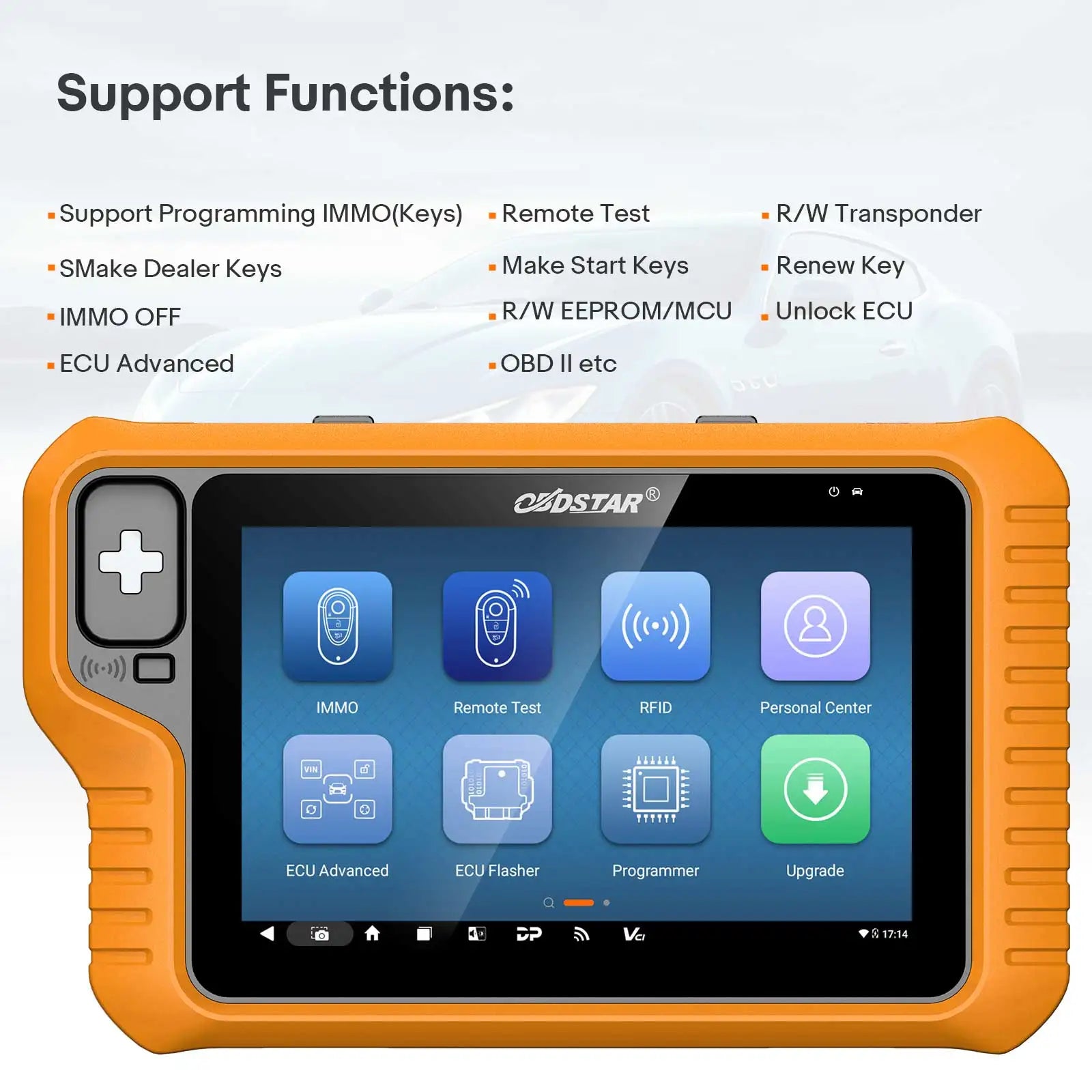

Support Functions:

✅ Programming IMMO(Keys)
✅ IMMO OFF
✅ Remote Test
✅ R/W EEPROM/MCU
✅ R/W Transponder
✅ Unlock ECU
✅ Make Dealer Keys

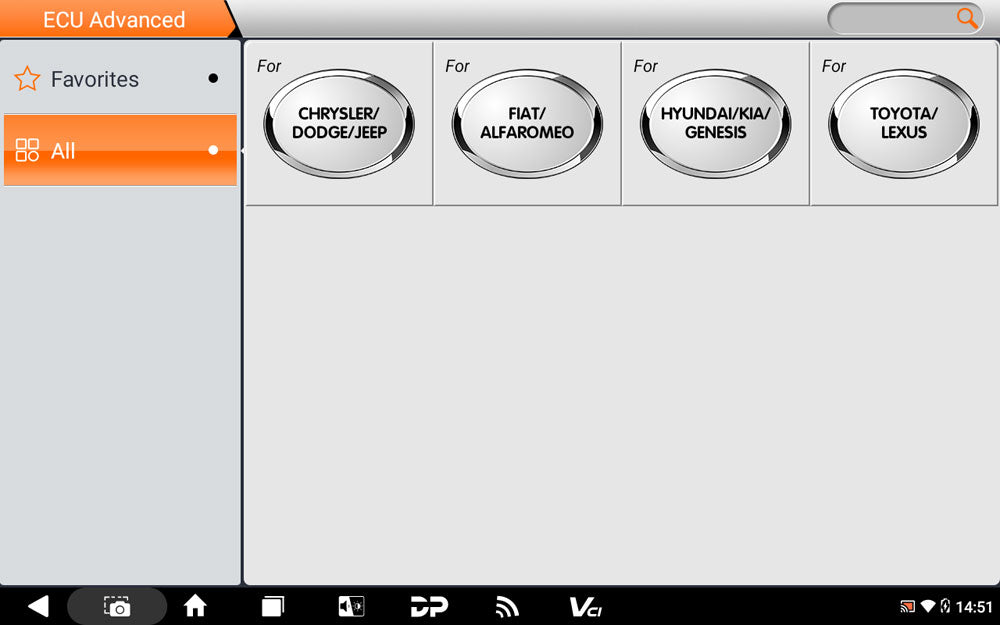

✅ ECU Advanced
✅ Make Start Keys
✅ OBDII
✅ Renew Key

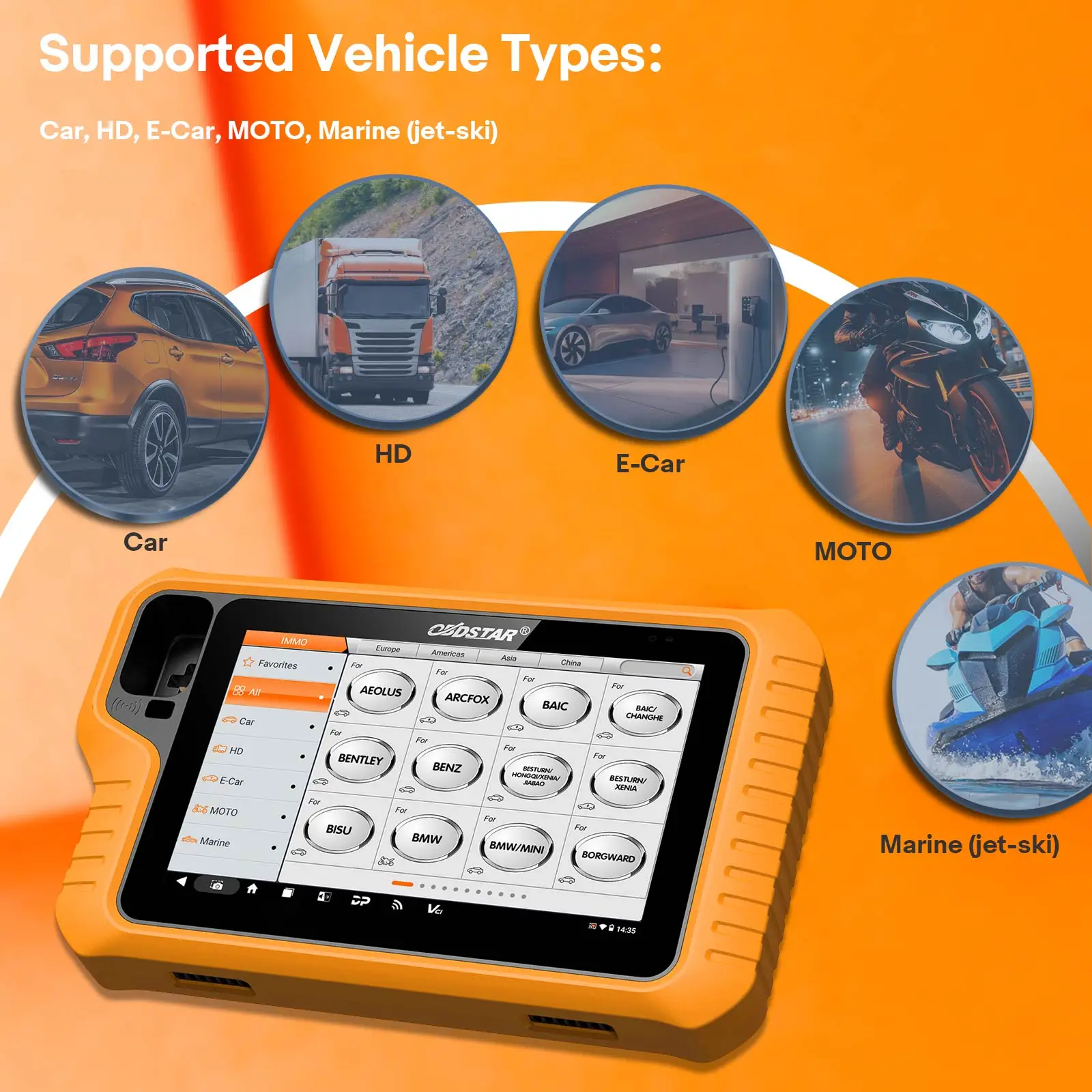

Supported Vehicle types

Car, HD, E-Car, MOTO, Marine (jet-ski)

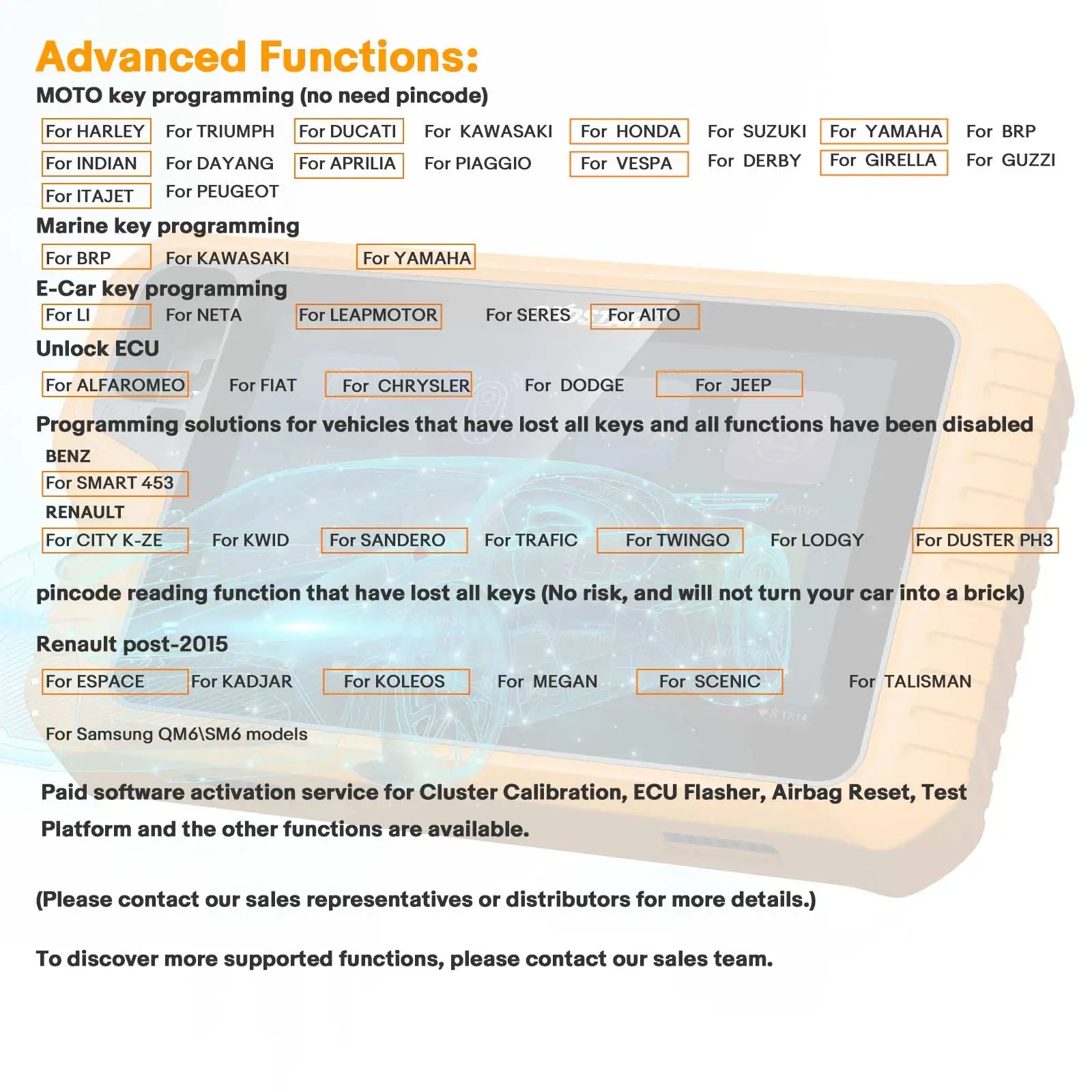

Advanced Functions

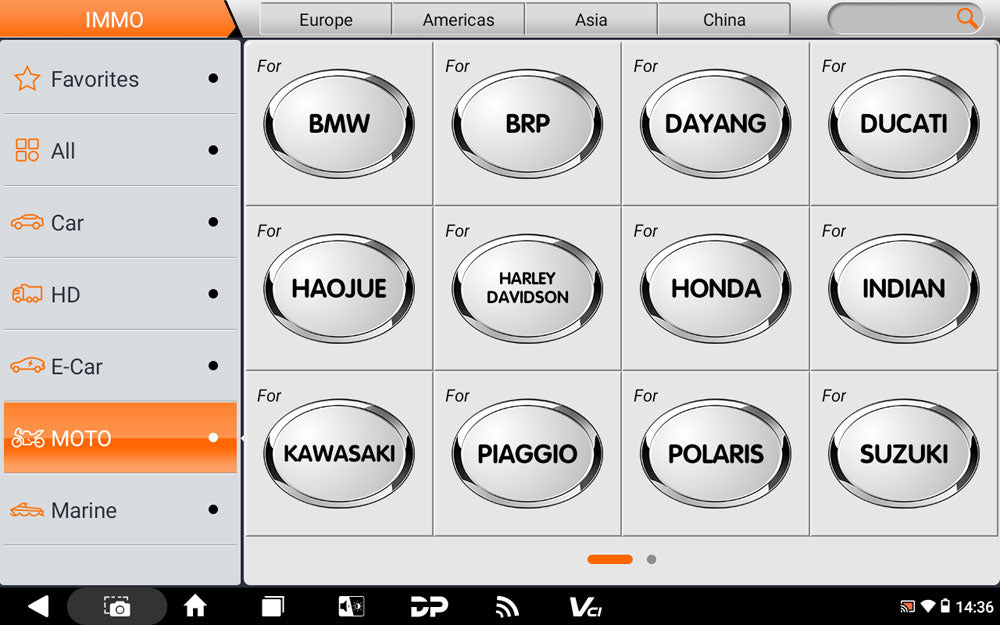

1. Support MOTO key progarmming (no need pincode) function for HARLEY, for TRIUMPH, for DUCATI, for KAWASAKI, for HONDA, for SUZUKI, for YAMAHA, for BRP, for INDIAN, for DAYANG, for APRILIA, for PIAGGIO, for VESPA, for DERBY, for GIRELLA, for GUZZI, for PEUGEOT, for ITAJET and others;

2. Support Marine key progarmming function for BRP, for KAWASAKI, for YAMAHA and others;

3. Support E-Car key programming function for LI, for NETA, for LEAPMOTOR, for SERES, for AITO and others;

4. Support unlock ECU function for ALFA ROMEO, for FIAT, for CHRYSLER, for DODGE, for JEEP and others;

5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;

6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, for KWID, for SANDERO, for TRAFIC, for TWINGO, for LODGY, for DUSTER PH3;

7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, for KADJAR, for KOLEOS, for MEGAN, for SCENIC, for TALISMAN and for Samsung QM6\SM6 models.

OBDSTAR X300 Classic G3 User Manual
OBDSTAR X300 Classic G3 coverage (vehicle list)

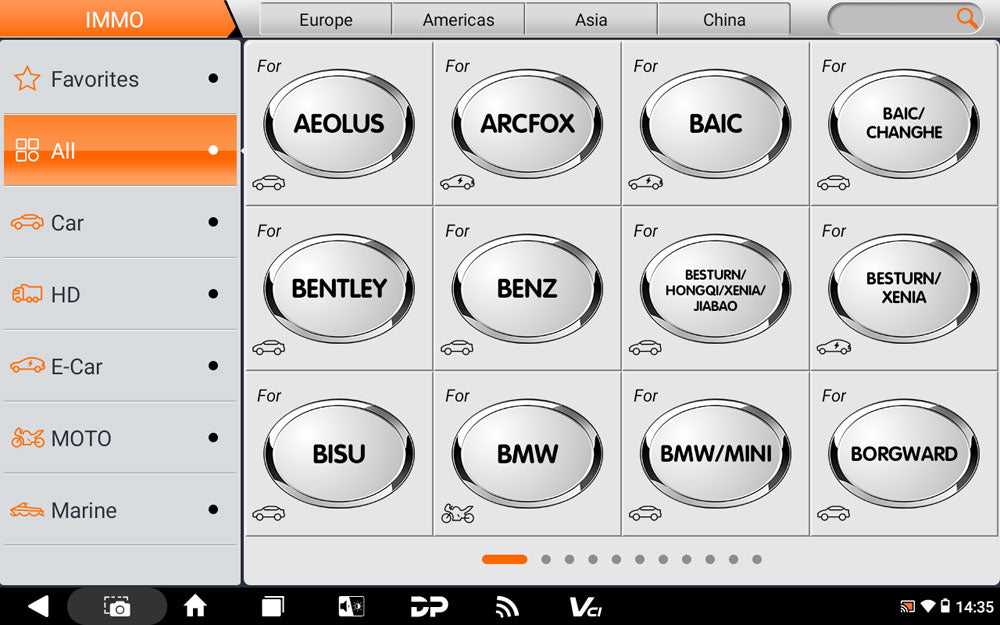

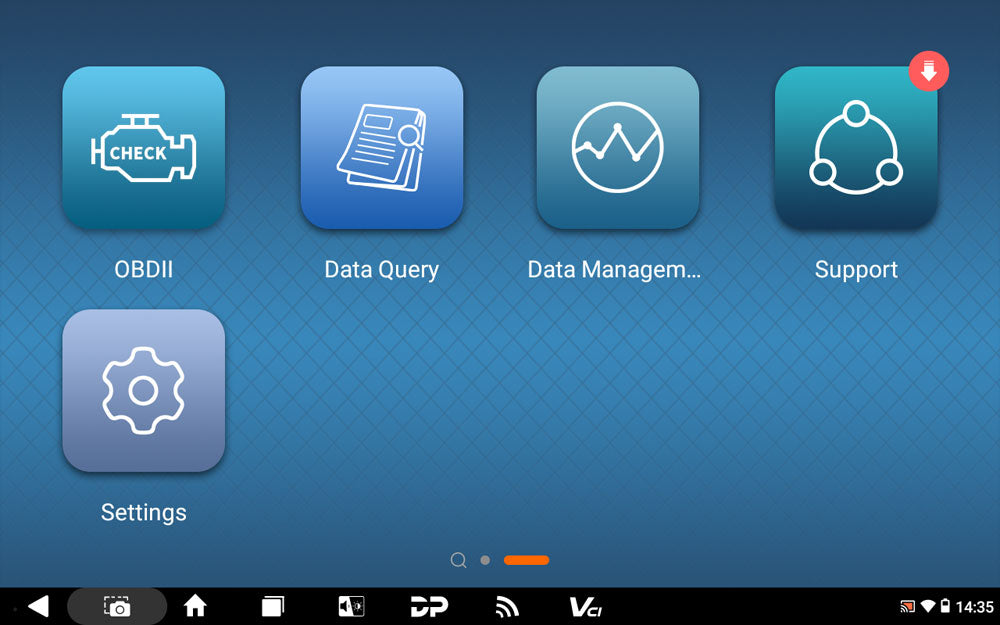

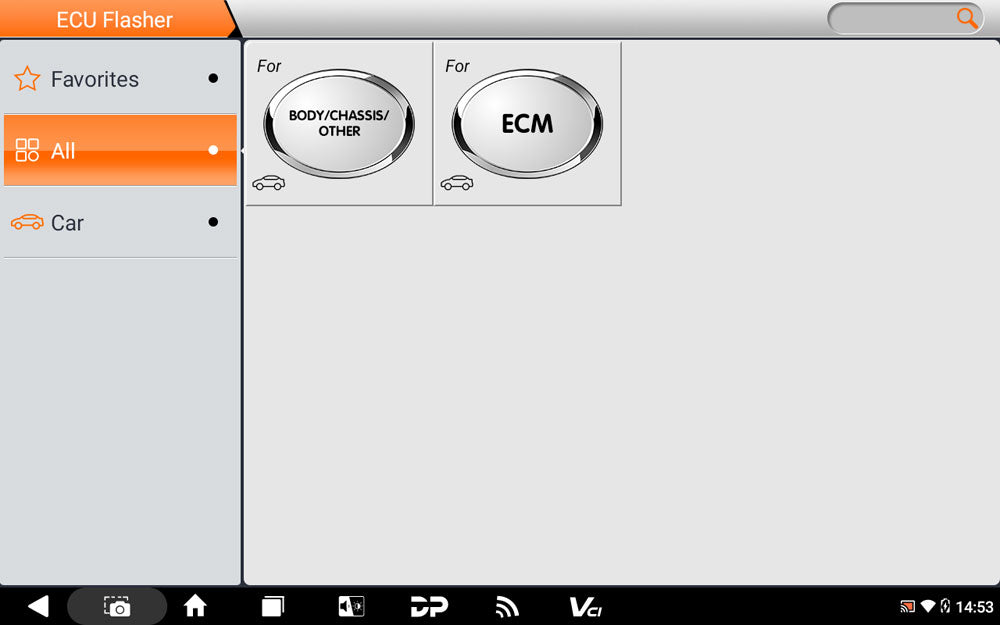

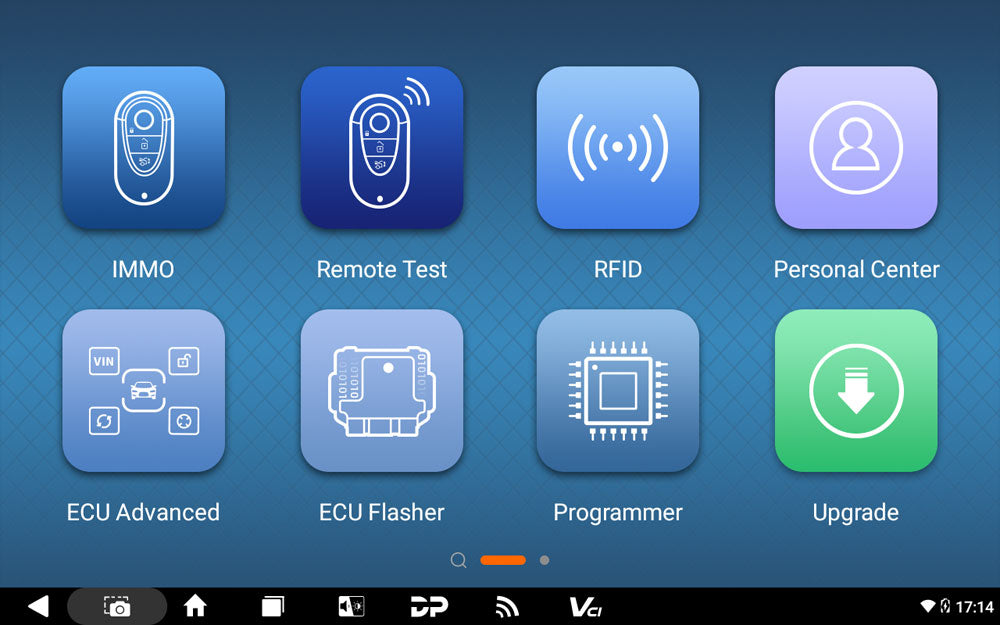

X300 Classic G3 Menu:

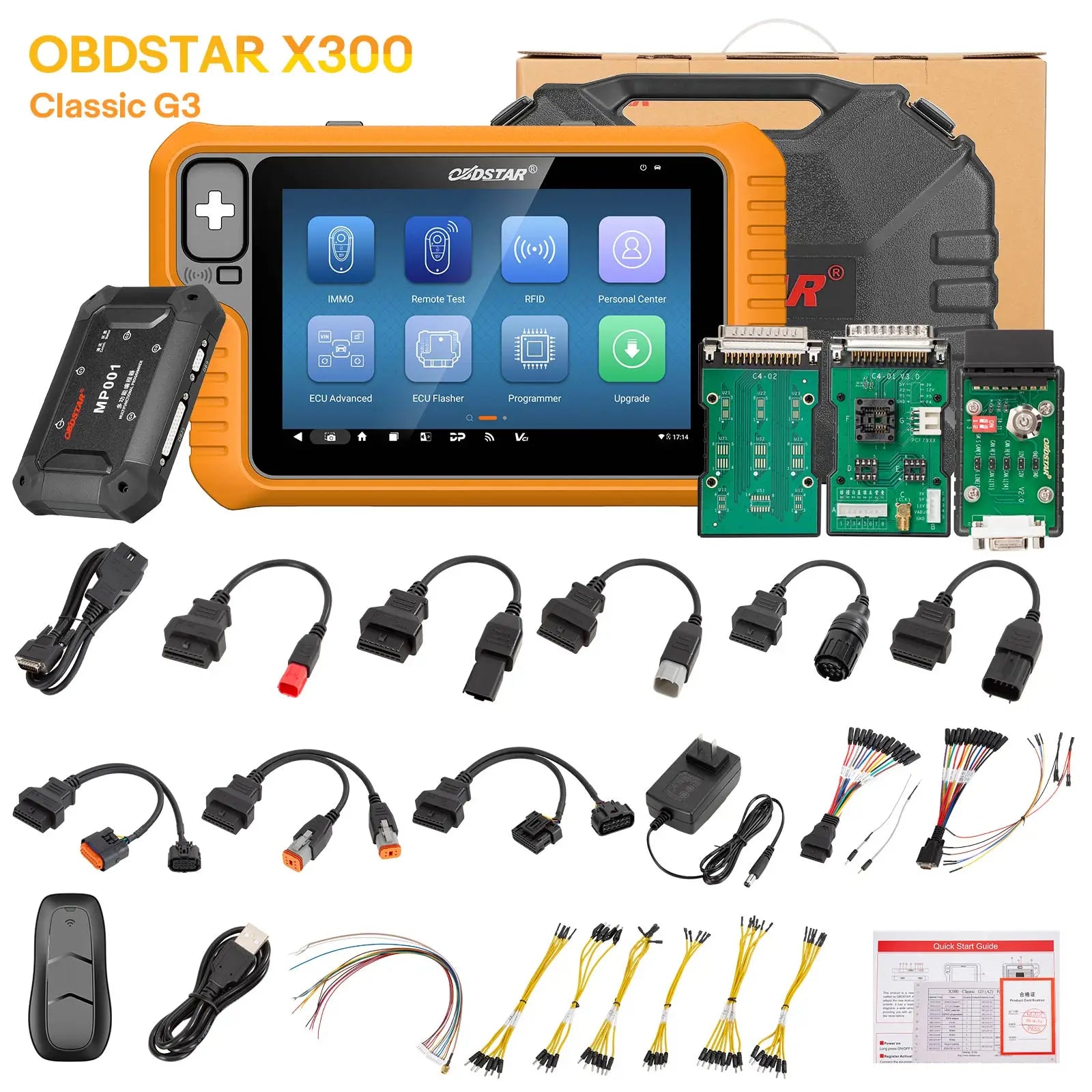

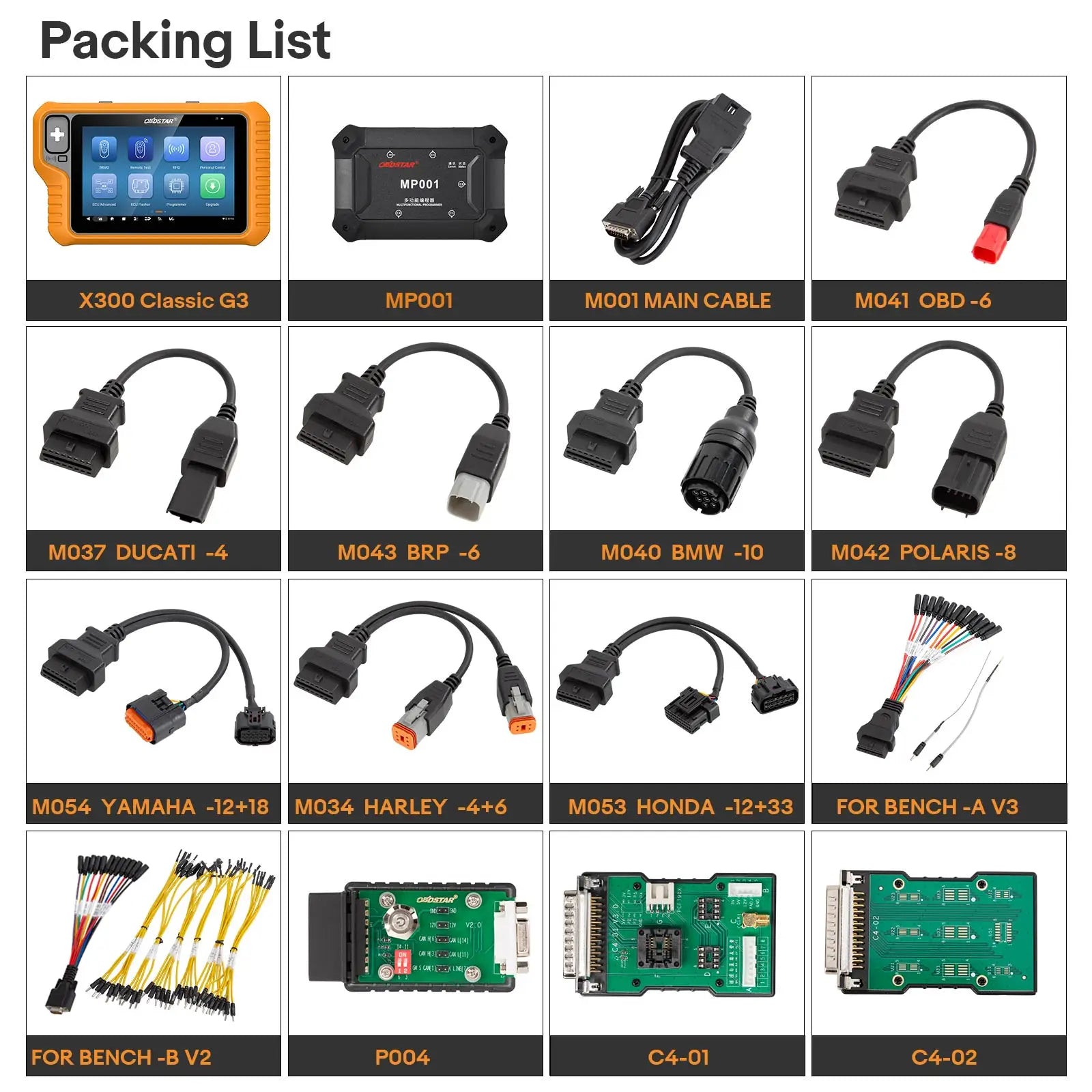

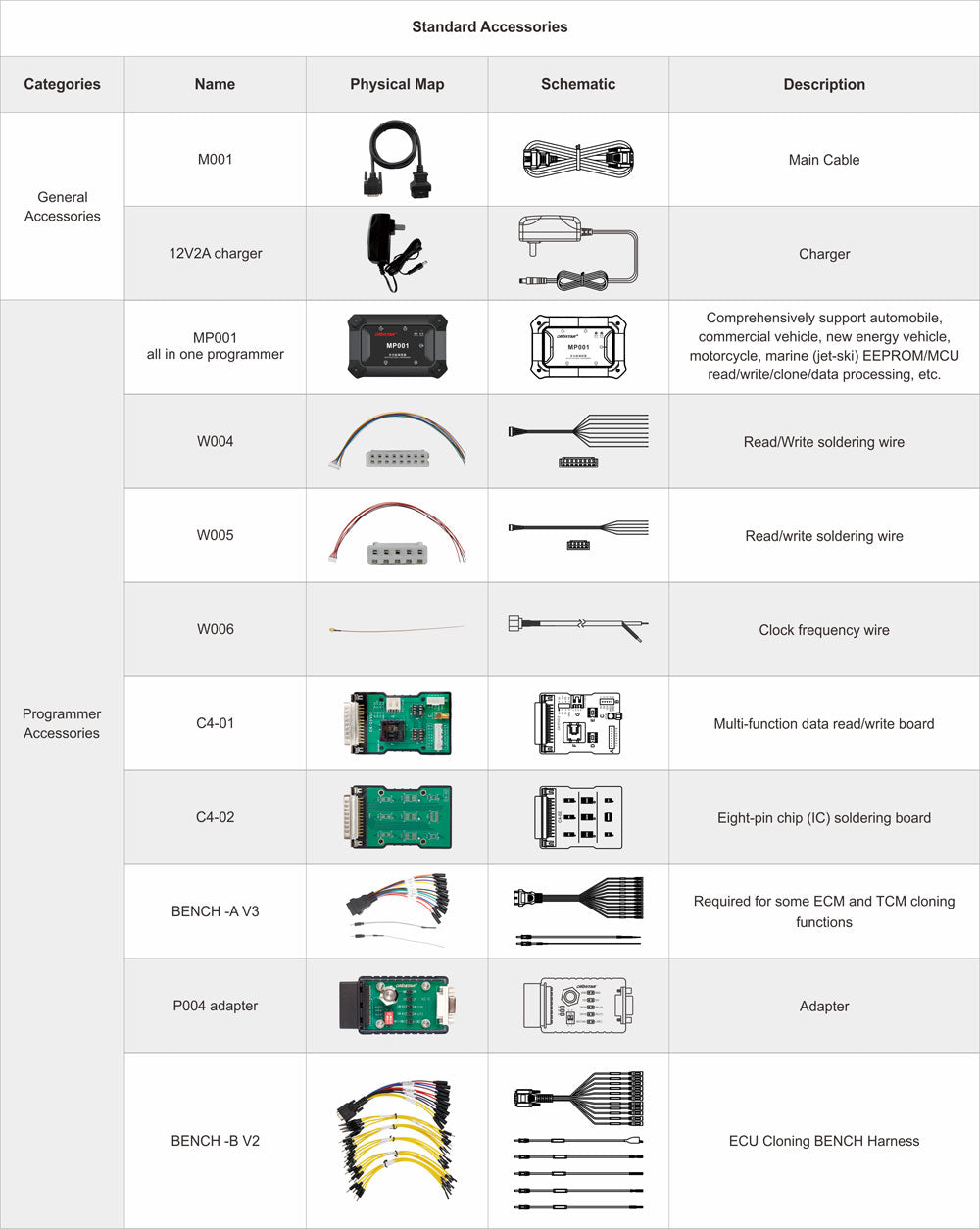

Standard package:

Free gift kits (choose one of two)

A1 Package Includes:

FAQs:

Q: Is X300 Classic G3 compatible with all the functions of X300 DP PLUS?

A: No, X300 Classic G3 is mainly targeted at automotive electronics repairers or professional locksmiths, so it does not include the diagnostic and maintenance functions of X300 DP PLUS (except for Manual Service Lamp Reset), but it adds a lot of new special functions.

Q: Can I use the accessories of an old product I have previously purchased?

A: Yes, in order to save locksmith costs, X300 Classic G3 is compatible with the following adapters or cables that have been purchased by previous users:

1. P002 adapter, P003 adapter, Key Sim adapter;

2. CAN DIRECT KIT, for TOYOTA-24/27/30 CABLE;3. for NISSAN-40 BCM CABLE, for NISSAN/ RENAULT 16+32 CABLE;

4. FCA 12+8 CABLE;

5. for TOYOTA 8A cable, FORD all key lost cable.

Q: What is ECU Unlock function of X300 Classic G3?

A: The ECU Unlock fucntion is developed so that used ECU modules can be used in other identical vehicles. If you install a used ECU into another vehicle without unlocking it, it will report a fault and cannot be used normally.
